High Light: | inverter electric motor,inverter duty rated motor |
---|

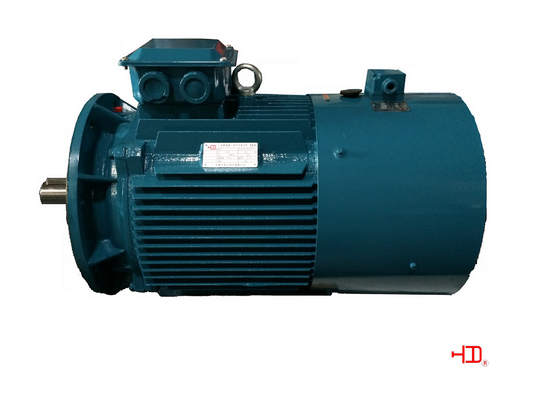

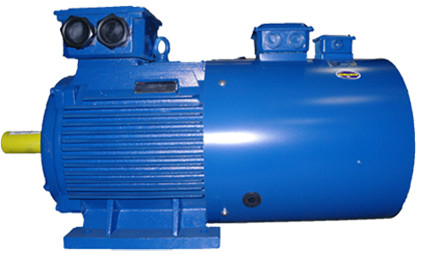

IE1 8 Pole Three Phase Asynchronous Motor For Air Compressor , High Frequency 50HZ
Ambient |
|
Temperature range: |
-15~40℃ |
Ambient humidity: |
90%less than relative humidity |
Altitude: |
less than 1000m above sea level |
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
Supply power: |
|
Voltage variable |
±5% |
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
Standard Feature: |
|
Standard |
IEC/GB |
Efficiency Level |
IE1 |
Phase |
Three-phase |
Frame Size |
H132~355 cast iron frame |
Protect Feature |
Totally Enclosed |
Output Range |
2.2~200KW |
Frequency |
50HZ( 5~50Hz Constant Torque, 50~100Hz constant power) |
Poles |
8 |
Protection Class |
IP55 |
Insulation |
F/B |
Mounting |
IMB3 or on your request |
Cooling |
IC416 |
Duty |
S1 |
Lubricating grease |
SRI-2 |
Thermometry |
Optional |
Certification |
CCC, CE,ISO9001 |
Special motors can be designed according to customers' requirements |
Meaning of type code
Technical Specification (8 pole/ Synchronous speed 750r/min in 50HZ )
Motor Type |
Rated Power |
Current |
Rated Speed |
Rated Torque |
Maximum Torque |
Weight |
|
Rated Torque |
|||||||
kW |
HP |
InA |
r/min |
N.m |
TM/TN |
Kg |
|
Y2VP 132S-8 |
2.2 |
3 |
5.92 |
715 |
28 |
2.8 |
68 |
Y2VP 132M-8 |
3.0 |
4 |
7.56 |
713 |
38.2 |
2.8 |
73 |
Y2VP160M1-8 |
4.0 |
5.5 |
9.71 |
718 |
50.9 |
2.8 |
103 |
Y2VP160M2-8 |
5.5 |
7.5 |
13.3 |
722 |
70 |
2.8 |
117 |
Y2VP160L-8 |
7.5 |
10 |
17 |
721 |
95.5 |
2.8 |
141 |
Y2VP180L-8 |
11 |
15 |
24.9 |
725 |
140.1 |
2.8 |
187 |
Y2VP200L-8 |
15 |
20 |
33.8 |
731 |
191.1 |
2.8 |
242 |
Y2VP225S-8 |
18.5 |
25 |
40.8 |
733 |
235.6 |
2.8 |
297 |
Y2VP225M-8 |
22 |
30 |
46.1 |
734 |
280.1 |
2.8 |
325 |
Y2VP250M-8 |
30 |
40 |
62.2 |
734 |
382 |
2.8 |
407 |
Y2VP280S-8 |
37 |
50 |
75.6 |
736 |
471.1 |
2.8 |
523 |
Y2VP280M-8 |
45 |
60 |
93.3 |
737 |
573 |
2.8 |
611 |
Y2VP315S-8 |
55 |
75 |
112 |
740 |
700.3 |
2.8 |
996 |
Y2VP315M-8 |
75 |
100 |
150 |
740 |
955 |
2.8 |
1079 |
Y2VP315L1-8 |
90 |
125 |
179 |
741 |
1146 |
2.8 |
1177 |
Y2VP315L2-8 |
110 |
150 |
217 |
742 |
1400.7 |
2.8 |
1276 |
Y2VP355M1-8 |
132 |
180 |
252 |
744 |
1680.8 |
2.8 |
1870 |
Y2VP355M2-8 |
160 |
215 |
298 |
744 |
2037.3 |
2.8 |
1903 |
Y2VP355L-8 |
200 |
270 |
379 |
744 |
2546.7 |
2.8 |
2167 |
Description:
Y2VP -8 pole series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement
The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
The following as options or customer’s request:
Protection class IP56
Space heater
Heat protector
Vibration detector
Special mounting dimension and shaft dimension
Low vibration and low noise
Bearing thermometer PT100(frame size H180 and above)
Winding thermometer PT100
Special painting
Humid-tropical “TH”
Others
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
