Efficiency Level: | IE2 | Frame Size: | H225 Cast Iron Frame |
---|---|---|---|
Output Range: | 37KW,45KW, 55KW | Frequency: | 50HZ( 5~50Hz Constant Torque, 50~100Hz Constant Power) |
High Light: | variable speed electric motor,3 phase induction motors |

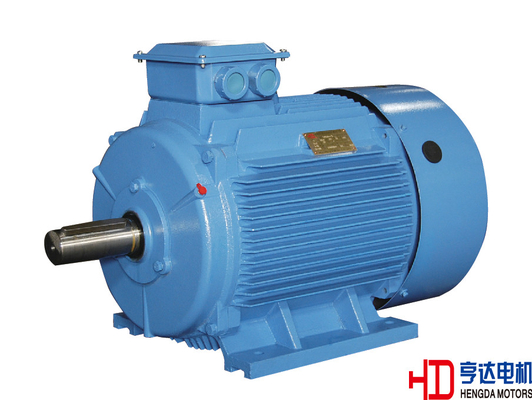

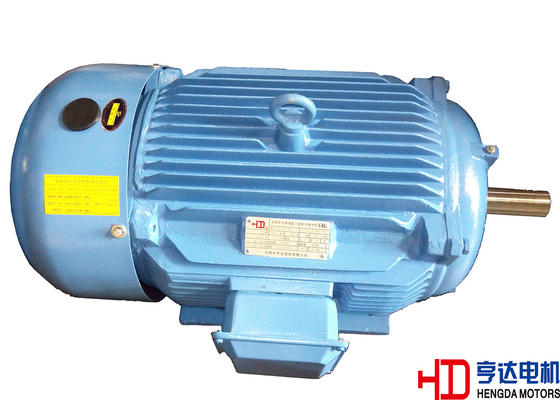

FE2VP inverter duty textile Motors in Industry (H 225 Cast Iron Frame)
Standard Feature: |
|
Standard |
IEC |
Phase |
Three-phase |
Protect Feature |
Totally Enclosed |
Voltage |
380V |
Poles |
4 |
Protection Class |
IP54 |
Insulation |
F/B |
Mounting |
IMB3 or on your request |
Connection |
△ |
Thermometry |
Optional |
Special motors can be designed according to customers' requirements |
Technical Specification (380V/50HZ) Connection :△
Motor Type | Rated Power | Current | Efficiency | Power Factor | Torque | Constant Torque | constant power |
KW | A | η% | cosΦ | N.M | Hz | Hz | |
FE2VP 225S-4 | 37 | 69 | 92.7 | 0.86 | 235.5 | 5-50 | 50-100 |
FE2VP 225M-4 | 45 | 83.5 | 93.1 | 0.86 | 286.4 | 5-50 | 50-100 |
FE2VP 225M2-4 | 55 | 102 | 93.5 | 0.86 | 350 | 5-50 | 50-100 |
Mounting and Overall Dimensions(mm)
Frame Size | Mounting Dimensions (mm) | Overall Dimensions (mm) | ||||||||||||
A | B | C | D | E | F | G | H | K | AB | AC | AD | HD | L | |
FE2VP 225S | 356 | 286 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | 435 | 470 | 335 | 555 | 815 |
FE2VP 225M | 356 | 311 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | 435 | 470 | 335 | 555 | 845 |
Description:
This series motors are specially designed for long lathe with 1008 spindle and above. And have low temperature rise , small size ,low noise and strong dustproof ability. The bearing re-greasing can be done during running which can improve bearing service life.
Applications:
FE2VP- H225 series textile motors is specially designed for long vehicle up from 1008 spindle of spinning machine
