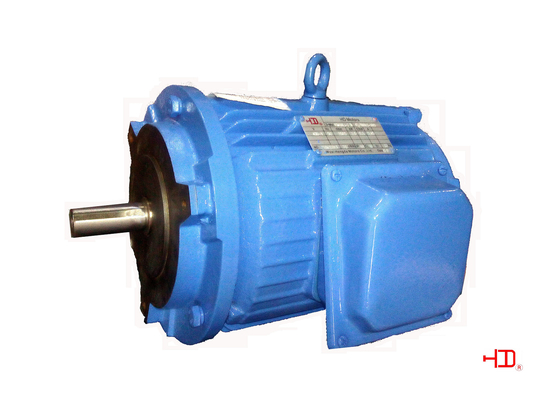

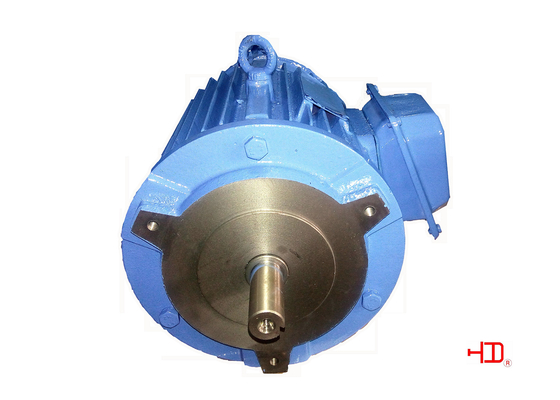

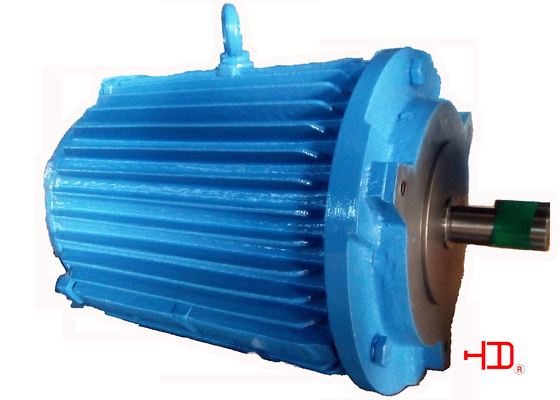

High Performance 2 Pole 3 Phase Induction Motor 1.5KW - 3KW For Textile Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | low rpm electric motor,3 phase induction motors |
||
|---|---|---|---|
High Performance 2 Pole 3 Phase Induction Motor 1.5KW - 3KW For Textile Machine
Ambient | |
Temperature range: | -15~40℃ |
Altitude: | less than 1000m above sea level |
Ambient condition: | no causticity gas, no heavy mental pollution, no flame, no salt crystallization |
Supply power: | |
Voltage variable | ±5% |
frequency variable | ±2% Combine voltage and frequency variable : ±5% |
| |
Standard Feature: | |
Standard | IEC |
Efficiency Level | IE1 |
Phase | Three-phase |
Frame Size | H100 cast iron frame |
Protect Feature | Totally Enclosed |
Output Range | 1.5KW,2.2KW |
Voltage | 380V |
Frequency | 50HZ |
Poles | 2 |
Protection Class | IP54 |
Insulation | F/B |
Duty | S1 |
Thermometry | Optional |
Certification | CCC, CE,ISO9001 |
Special motors can be designed according to customers' requirements | |
Technical Specification (380V/50HZ)
Motor Type | Rated Power | Current | Rated Speed | Power Factor | Efficiency | Locked Current | Locked Torque | Maximum Torque | Weight |
Rated Current | Rated Torque | Rated Torque | |||||||
KW | A | r/min | cosΦ | η% | Ist/In | Tst/Tn | Tm/Tn | kg | |

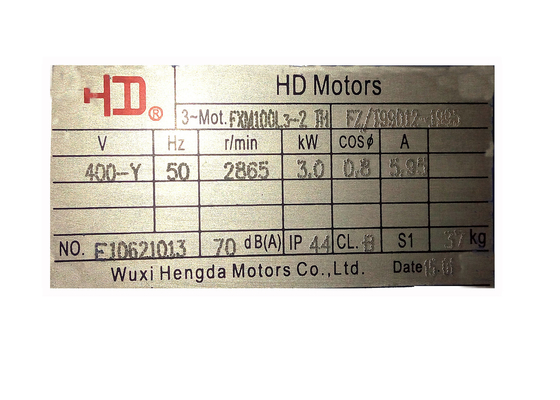

FXM 100L1-2 | 1.5 | 3.2 | 2880 | 0.85 | 83.8 | 8 | 2 | 2.2 | 35 |
FXM 100L2-2 | 2.2 | 4.7 | 2880 | 0.85 | 83.8 | 8 | 2 | 2.2 | 39 |
| FXM 100L3-2 | 3.0 | 6.4 | 2885 | 0.85 | 83.8 | 8 | 2 | 2.2 | 42 |
Mounting and Overall Dimensions(mm)
Frame Size | Mounting Dimensions (mm) | Overall Dimensions (mm) | ||||||||||||
D | E | F | G | S1 | M | N | P | R | n-S | T | AD | HE | L | |
FXM 100L | 22 | 50 | 6 | 18.5 | 14-M5 | 165 | 95 | 200 | 5 | 3-M8 | 3 | 180 | 245 | 320 |
Description:

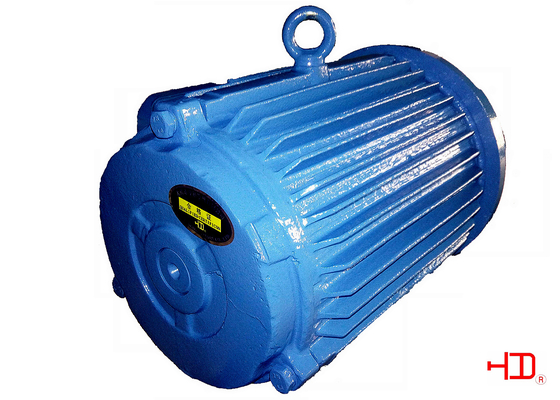

The motors themselves are designed without fan vanes .They are cooled with the help of suction fans .This series of motors is deviated from JFO2 type motor and with same performance with JFO2 type motor. When they are fitted for suction fans , attention must be paid that motors can be cooled by suction tans (with JFO2 fan),otherwise ,the temperature-rise of motors will exceed limit value or decrease the output.
Applications:
Features and application: The series of three-phase induction motors is specially designed for driving suction fans of spinning frames.
Competitive Advantage:
Relying on continuous innovation ,HD textile motors become one of the best in the textile motor industry with their perfect performance , reliable quality , high efficiency and energy reservation.HD will continuously uses the knowledge and experience in motor design and manufacturing, and implement comprehensive quality control according to ISO9001 2008, and serve customers with high quality products and good service.
1. Focus on the manufacture of textile motors;
2. Efficient customer services
3. Customized motors.
4. Competitive and reasonable pricing and delivery term;
5. Perfect quality assurance system
6. Credible after-sale service and warranty commitments
