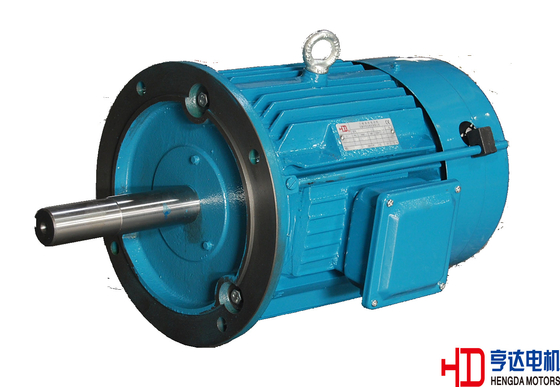

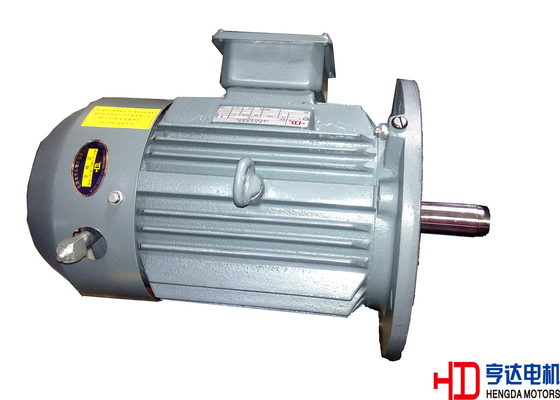

1.5 / 2 Horsepower Asynchronous Industrial Electric Motor 1.1KW 1.5KW 2.2KW

1.5 / 2 Horsepower Asynchronous Industrial Electric Motor 1.1KW 1.5KW 2.2KW
1.5 / 2 Horsepower Asynchronous Industrial Electric Motor 1.1KW 1.5KW 2.2KW 1.5 / 2 Horsepower Asynchronous Industrial Electric Motor 1.1KW 1.5KW 2.2KW

Large Image :  1.5 / 2 Horsepower Asynchronous Industrial Electric Motor 1.1KW 1.5KW 2.2KW Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: Y2GW H90
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
Phase: Three-phase Frame Size: H90 Cast Iron Frame
Output Range: 0.75KW ,1.1KW,1.5KW,2.2KW Pole: 2 4 6
High Light:

high horsepower electric motor

,

high speed electric motors

1.5 / 2 Horsepower Asynchronous Industrial Electric Motor 1.1KW 1.5KW 2.2KW

Ambient

Temperature range:

-15~55℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC /DIN

Efficiency Level

IE1

Protect Feature

Totally Enclosed

Frequency

50HZ

Protection Class

IP54/IP55

Insulation

H

Shaft hardness

HB225

Stator winding temperature rise

125K(resistance method)

Mounting

IMB3 or on your request

Cooling

IC411

Duty

S1

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements



Technical Specification

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm




kW

HP

kW

HP

kW

HP



90S

1.5

2

1.1

1.5

0.75

1



90L

2.2

3

1.5

2

1.1

1.5





Description:

According to the actual requirements of the dyeing machinery industry, we made Y2GW series high temperature resistant motor which has aesthetic appearance and oil discharging device of injection on both end. The oil pipe is connecting both ends which ensure regreasing can be done during running.

When the Ambient temperature is less than 55 degrees, the temperature of shaft , flange and other parts increase to 250 degrees, the motor can be still working well for connecting directly to the circulating fan. Using high temperature resistant bearing which should be filled in 7017-1 high temperature grease after 1500 hours running.

H class insulation makes the motor with higher heat stability and longer life, and ensures the continuous production of printing and dyeing machinery industry.



Applications:

The motor application is directing for circulation fan, printing and dyeing machinery industry or other similar conditions.
