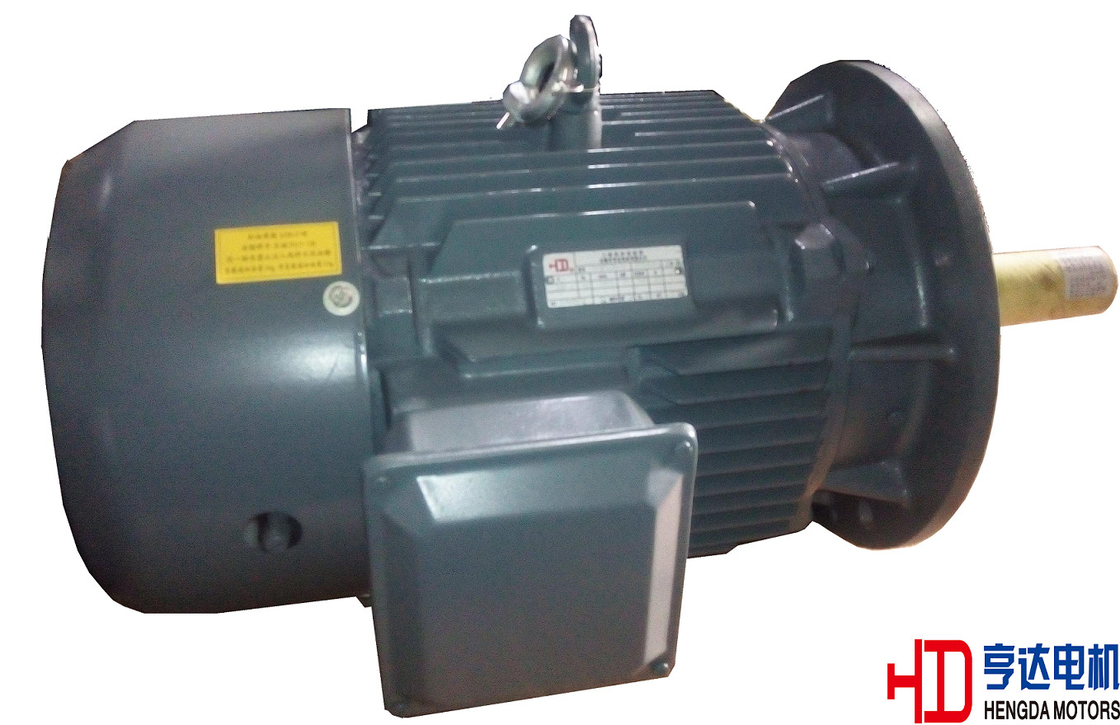

High Temperature Resistant Three Phase Asynchronous Motors H132 cast iron frame

High Temperature Resistant Three Phase Asynchronous Motors For Circulation Fan

Technical Specification

Description:

According to the actual requirements of the dyeing machinery industry, we made Y2GW series high temperature resistant motor which has aesthetic appearance and oil discharging device of injection on both end. The oil pipe is connecting both ends which ensure regreasing can be done during running.

When the Ambient temperature is less than 55 degrees, the temperature of shaft , flange and other parts increase to 250 degrees, the motor can be still working well for connecting directly to the circulating fan. Using high temperature resistant bearing which should be filled in 7017-1 high temperature grease after 1500 hours running.

H class insulation makes the motor with higher heat stability and longer life, and ensures the continuous production of printing and dyeing machinery industry.

Applications:

The motor application is directing for circulation fan, printing and dyeing machinery industry or other similar conditions.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, Y2GW motors become one of the best in dyeing machinery industry with their perfect performance , reliable quality , high efficiency and energy reservation.

The motor is made of high quality cast iron .with optimized construction design, they can ensure the requirement of structure rigidity and intensity .

High quality insulation material combines the perfect insulation system.

We use high temperature resistant bearing to ensure the stable quality of the motor.

Perfect primer ensures the motors with good appearance and the motors are durable.
