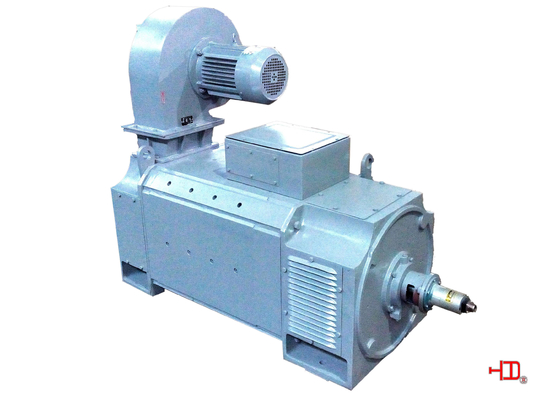

Three Phase High Torque Industrial DC Motor 200KW 400KW , Low Voltage

Large Image : Three Phase High Torque Industrial DC Motor 200KW 400KW , Low Voltage Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Z4 H315

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	30 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	5,000pcs per month

Contact Now

Detailed Product Description

High Light:

high torque dc motor

three phase dc motor

Three Phase High Torque Industrial DC Motor 200KW 400KW , Low Voltage

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Standard Feature:
Standard		IEC34-1 / DIN57530
Phase		Three-phase
Frame Size		H315 cast iron frame
Protect Feature		Totally Enclosed
Output Range		98~400KW
Voltage		160V,440V or on request
Frequency		50HZ
Protection Class		IP21S
Insulation		F/B
Mounting		IMB3 /IMB35
Cooling		IC06,IC17,IC37
Duty		S1
Thermometry		Optional
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Requirement for cooling air volume , air pressure and fan motor power

Frame Size	Air Volume	Static Pressure	Motor output
Frame Size	m³/h	Pa	KW
Z4-315	4680	1600	5.5

The fan motors are all three phase ,two pole ,380V

Technical Specification :

The data below is include excitation loss, excluding blower loss

Motor Type	Rated Power	Rated Speed		Magnetic speed	Arm.Curr.	Excitation Power	armature circuit resistance	Armature circuit inductance	Field Inductance	Efficiency	Moment of inertia	Weight

	P_N	400V	440V	N_F	In	P_F	R	L_A	L_F	η	GD²
	KW	r/min		r/min	A	W	Ω(20℃)	mH	H	%	Kgm2	kg
Z4-315-12	321	1360		1800	865	3850	0.015	0.39	8.64	92.2	21.2	1890
	355		1500							92.8
	253	900		1600	690		0.02355	0.46	5.06	90.4
	280		1000							91.6
	180	680		1900	500		0.04371	0.83	4.97	88.4
	200		750							89.4
Z4-315-11	144	540		1900	409		0.06919	1.3	7.6	86.4
	160		600							87.4
	118	450		1600	344		0.1	2.3	9.43	84.4
	132		500							86.3
	98	360		1200	294		0.1415	2.9	9.96	81.7
	110		400							84.3
Z4-315-22	284	900		1600	772	4350	0.02034	0.49	5.91	91	24	2080
	315		1000							91.5
	225	680		1600	624		0.03392	0.74	18.8	88.7
	250		750							89.6
Z4-315-21	166	540		1600	468		0.05382	1.2	25	87.2
	185		600							88.5
	143	450		1500	413		0.076	1.5	19	84.7
	160		500							86
Z4-315-32	320	900		1600	867	4650	0.01658	0.39	23.1	91	27.2	2290
	355		1000							92
	252	680		1600	698		0.03043	0.82	21.5	89.1
	280		750							89.8
	180	540		1500	501		0.04536	0.95	31.6	88.2
	200		600							89.4
Z4-315-31	118	360		1200	344		0.01002	2.1	23.3	83.2
	132		400							85.3
Z4-315-42	361	900		1400	971	5200	0.01302	0.33	29	92.1	30.8	2520
	400		1000							92.7
	284	680		1600	778		0.02364	0.67	20.8	90
	315		750							90.7
	225	540		1600	626		0.03554	0.87	21.9	88.3
	250		600							89
Z4-315-41	166	450		1500	468		0.055	1.4	37.4	87.3
	185		500							88.3
	143	360		1200	416		0.0803	1.8	22.2	84
	160		400							85.3

Mounting and Overall Dimensions(mm)

Mounting Type :IMB3/IM1001

Three Phase High Torque Industrial DC Motor 200KW 400KW , Low Voltage 0

Frame Size	Mounting Dimensions (mm)													Overall Dimensions (mm)
Frame Size	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	AB	AC	AD	HD	h1	L	L1
Z4-315-091	508	817	216	100	210	28	106	95	170	25	100	315	28	620	654	497	1221	30	1462	1827
Z4-315-092		907																	1552	1917
Z4-315-11		887																	1532	1897
Z4-315-12		977																	1622	1987
Z4-315-21		967																	1612	1977
Z4-315-22		1057																	1702	2067
Z4-315-31		1057																	1702	2067
Z4-315-32		1147																	1792	2157
Z4-315-41		1157																	1802	2167
Z4-315-42		1247																	1892	2257

Mounting Type: IMB35 /IM2001

Three Phase High Torque Industrial DC Motor 200KW 400KW , Low Voltage 1

Frame Size	Mounting Dimensions (mm)																	Overall Dimensions (mm)
	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	M	N	S	T	P	AB	AC	AD	HD	L	L1
Z4-315-11	508	887	216	100	210	28	106	95	170	25	100	315	28	740	680	8-￠24	6	800	620	654	497	1221	1532	1897
Z4-315-12		977																					1622	1987
Z4-315-21		967																					1612	1977
Z4-315-22		1057																					1702	2067
Z4-315-31		1057																					1702	2067
Z4-315-32		1147																					1792	2157
Z4-315-41		1157																					1802	2167
Z4-315-42		1247																					1892	2257

Description:

Mounting and Overall type of Z4 DC motor are comply with IEC72 Standard, except the axial distance between the mounting holes( Dimension “B”)

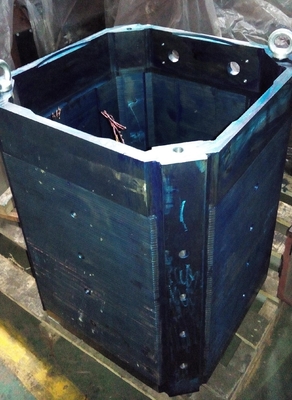

This series motors have polygon structure, so they have high space efficient. Their stator yoke which is lamination and use rectifier power supply can withstand pulsating current and rapid change of current .

Due to its accurate location of magnetic pole, it is convenient to change the direction

Thanks to its small size,good performance, light weight , high efficiency and reliability , our Z4 DC motors can compete with international advanced level.

Supply power:

1, The power supply of Armature and Field circuits can be from Static rectifier power supply or from DC generator.

2,Under constant torque, decrease armature voltage to adjust speed;Under constant power, decrease excitation voltage to adjust speed.

3, Separated excitation is the basic excitation type. Nominal excitation voltage is180V, other voltages are also acceptable on your request.

4,For frame Z4-315, compensating windings are provided.

Applications:

Z4 DC motors are our latest product. They are widely used as drive source for various machinery, such as Metallurgical industry, Metal cutting machine, Paper ,Printing, Textile, Dyeing, Cement, Plastic extrusion machinery and so on.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
