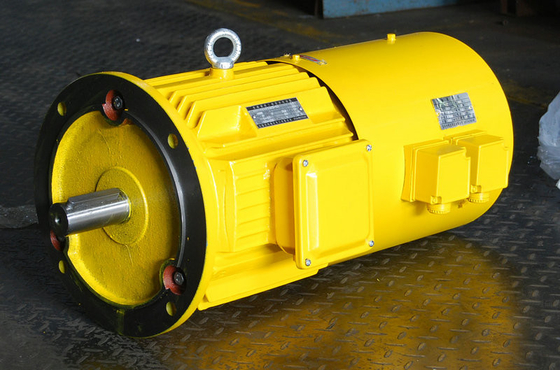

Three Phase Small Variable Speed Electric Motor 380V 50HZ For Air Compressor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | variable speed induction motor,two speed electric motor |
||
|---|---|---|---|
Three Phase Small Variable Speed Electric Motor 380V 50HZ For Air Compressor
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE1 |
|
Phase |
Three-phase |
|
Frame Size |
H180~280 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35 or on your request |
|
Cooling |
IC411 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Meaning of type code
Technical Specification
|
Frame Size |
Synchronous Speed(r/min) |
|
|
750/1000/1500 |
||
|
180L |
7/9/12 |
|
|
200L2 |
10/13/17 |
|
|
225S |
14/18.5/24 |
|
|
225M |
17/22/28 |
|
|
250M |
24/26/34 |
|
|
280S |
30/34/42 |
|
|
280M |
30/37/50 |
Description:
YD pole-changing multispeed motors are totally enclosed ,squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC standards, with international generality, is the ideal product to export and replace the imported products.
YD series motors can apply to various transmission mechanisms which need control speed step by step.
The mounting and overall dimensions are the same as Y series standard motors .
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
1. Focus on the manufacture of Low Voltage Motors;
2. Efficient customer services
3. Customized motors.
4. Competitive and reasonable pricing and delivery term;
5. Perfect quality assurance system
6. Credible after-sale service and warranty commitments
