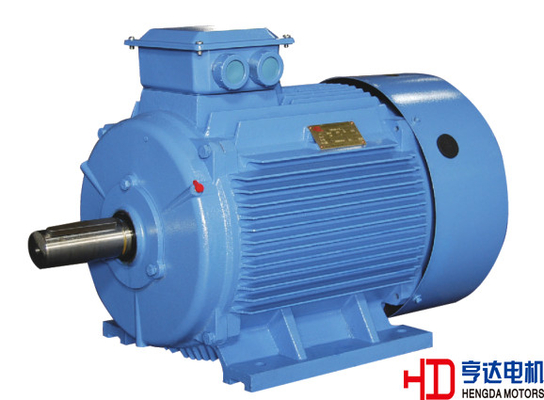

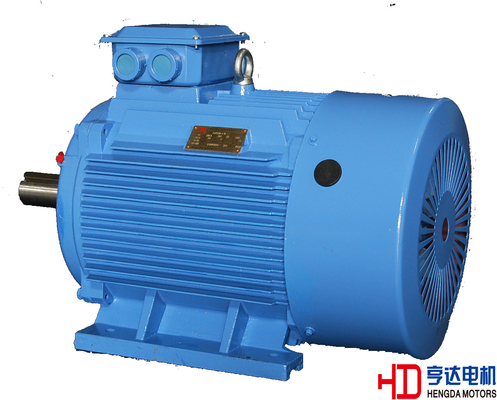

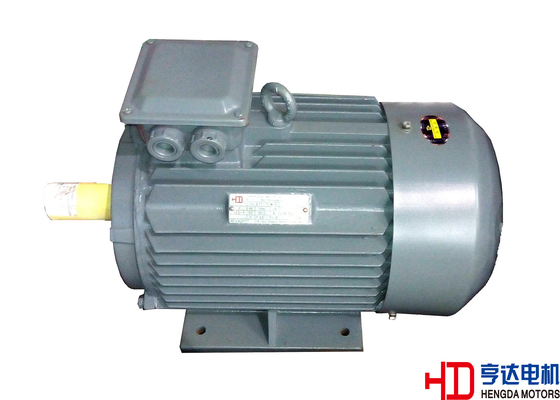

High Torque 6 Pole Synchronous Permanent Magnet Electric Motor For Air Compressor

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Torque 6 Pole Synchronous Permanent Magnet Electric Motor For Air Compressor Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: ISO9001
Model Number: XYT B3
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 20 working days after order
Supply Ability: 10,000pcs per month
Detailed Product Description
Efficiency Level: IE4 Phase: Three-phase
Output Range: 0.75~315KW Mounting: B3
High Light:

permanent magnet dc motor

,

permanent magnet induction motor

High Torque 6 Pole Synchronous Permanent Magnet Electric Motor For Air Compressor





Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%



Standard Feature:

Standard

IEC /DIN

Frame Size

H80~355 cast iron frame

Protect Feature

Totally Enclosed

Voltage

380V

Frequency

50HZ

Pole

2,4,6

Protection Class

IP55

Insulation

F/B

Duty

S1

Thermometry

Optional

Special motors can be designed according to customers' requirements



Mounting Type :IMB3/IM1001: with feet , without flange on the DE side.

IM B3 Mounting and overall dimensions(mm)

High Torque 6 Pole Synchronous Permanent Magnet Electric Motor For Air Compressor 0

Frame Size

Pole

Mounting Dimensions (mm)

Overall Dimensions (mm)

A

B

C

D

E

F

G

H

K

AA

AB

AC

AD

HD

LD

BB

HA

L

80M

2,4,6

125

100

50

19

40

6

15.5

80

10

34

165

167

165

245

74

130

10

300

90S

2,4,6

140

100

56

24

50

8

20

90

10

36

180

190

175

265

76

140

12

355

90L

2,4,6

140

125

56

24

50

8

20

90

10

36

180

190

175

265

76

165

12

385

100L

2,4,6

160

140

63

28

60

8

24

100

12

40

205

215

200

290

83

176

14

435

112M

2,4,6

190

140

70

28

60

8

24

112

12

45

230

240

220

325

87

180

15

470

132S

2,4,6

216

140

89

38

80

10

33

132

12

55

270

275

240

365

102

186

18

510

132M

2,4,6

216

178

89

38

80

10

33

132

12

55

270

275

240

365

102

224

18

560

160M

2,4,6

254

210

108

42

110

12

37

160

14.5

65

320

320

285

440

149

260

20

670

160L

2,4,6

254

254

108

42

110

12

37

160

14.5

65

320

320

285

440

149

260

20

700

180M

2,4,6

279

241

121

48

110

14

42.5

180

14.5

70

355

380

310

470

161

315

22

740

180L

2,4,6

279

279

121

48

110

14

42.5

180

14.5

70

355

380

310

470

161

350

22

780

200L

2,4,6

318

305

133

55

110

16

49

200

18.5

70

395

410

335

525

186

370

25

780

225S

4

356

286

149

60

140

18

53

225

18.5

75

435

470

370

580

189

388

28

820

225M

2

356

311

149

55

110

16

49

225

18.5

75

435

470

370

580

189

395

28

815

4,6

356

311

149

60

140

18

53

225

18.5

75

435

470

370

580

189

395

28

845

250M

2

406

349

168

60

140

18

53

250

24

80

490

490

380

635

207

445

30

915

4,6

406

349

168

65

140

18

58

250

24

80

490

490

380

635

207

445

30

915

280S

2

457

368

190

65

140

18

58

280

24

85

550

580

410

698

215

485

35

985

4,6

457

368

190

75

140

20

67.5

280

24

85

550

580

410

698

215

485

35

985

280M

2

457

419

190

65

140

18

58

280

24

85

550

580

410

698

215

540

35

1035

4,6

457

419

190

75

140

20

67.5

280

24

85

550

580

410

698

215

540

35

1035

315S

2

508

406

216

65

140

18

58

315

28

120

630

645

535

885

257

570

45

1200

4,6

508

406

216

80

170

22

71

315

28

120

630

645

535

885

257

570

45

1230

315M

2

508

457

216

65

140

18

58

315

28

120

630

645

535

885

257

680

45

1310

4,6

508

457

216

80

170

22

71

315

28

120

630

645

535

885

257

680

45

1340

315L

2

508

508

216

65

140

18

58

315

28

120

630

645

535

885

257

680

45

1310

4,6

508

508

216

80

170

22

71

315

28

120

630

645

535

885

257

680

45

1340

355M

2

610

560

254

75

140

20

67.5

355

28

120

730

720

650

1065

284

750

52

1510

4,6

610

560

254

95

170

25

86

355

28

120

730

720

650

1065

284

750

52

1550

355L

2

610

630

254

75

140

20

67.5

355

28

120

730

720

650

1065

284

750

52

1510

4,6

610

630

254

95

170

25

86

355

28

120

730

720

650

1065

284

750

52

1550
