YE2-6 Pole Most Efficient Three Phase Asynchronous Motors For Fans / Water Pumps
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Efficiency Level: | IE2 | Frame Size: | H80~355 Cast Iron Frame |
|---|---|---|---|
| Output Range: | 0.75~315KW | Pole: | 6 |
| High Light: | high efficiency electric motors,waterproof electric motor |
||

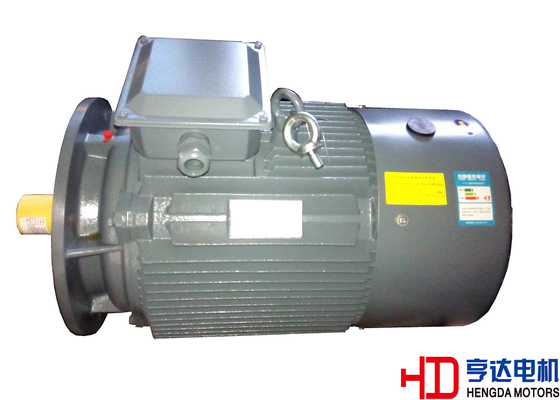

YE2-6 Pole Most Efficient Three Phase Asynchronous Motors For Fans / Water Pumps
Description:
YE2-6 pole series high-efficiency three phase asynchronous motor is a development based on the YP2-6 pole series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.
According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.
Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC/GB |
|
Phase |
Three-phase |
|
Protect Feature |
Totally Enclosed |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35/IMV1 or on your request |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Technical Specification (6 pole/1000r/min 380V/50HZ )
|
Motor Type |
Rated Power |
Current |
Rated Speed |
Rated Torque |
Power Factor |
Efficiency |
Locked Current |
Locked Torque |
Maximum Torque |
Weight |
||
|
Rated Current |
Rated Torque |
Rated Torque |
||||||||||
|
KW |
HP |
380V InA |
400V IoA |
r/min |
N.m |
cosΦ |
η% |
Ist/IN |
Tst/TN |
TM/TN |
kg |
|
|
YE2-90S-6 |
0.75 |
1 |
2 |
2 |
915 |
7.2 |
0.71 |
75.9 |
5.8 |
2.0 |
2.1 |
23 |
|
YE2-90L-6 |
1.1 |
1.5 |
3 |
3 |
915 |
10.5 |
0.72 |
78.1 |
5.9 |
2.0 |
2.1 |
28.5 |
|
YE2-100L-6 |
1.5 |
2 |
4 |
4 |
920 |
14.3 |
0.72 |
79.8 |
5.9 |
2.0 |
2.1 |
37.5 |
|
YE2-112M-6 |
2.2 |
3 |
6 |
5 |
940 |
21.0 |
0.72 |
81.8 |
6.2 |
2.0 |
2.1 |
48 |
|
YE2-132S-6 |
3 |
4 |
8 |
7 |
960 |
28.6 |
0.72 |
83.3 |
6.4 |
2.0 |
2.1 |
65 |
|
YE2-132M1-6 |
4 |
5.5 |
10 |
9 |
960 |
38.2 |
0.74 |
84.6 |
6.6 |
2.0 |
2.1 |
73 |
|
YE2-132M2-6 |
5.5 |
7.5 |
13 |
12 |
960 |
52.5 |
0.75 |
86.0 |
6.8 |
2.0 |
2.1 |
82 |
|
YE2-160M-6 |
7.5 |
10 |
17 |
16 |
970 |
71.6 |
0.78 |
87.2 |
6.8 |
2.0 |
2.1 |
113 |
|
YE2-160L-6 |
11 |
15 |
24 |
23 |
970 |
105.0 |
0.79 |
88.7 |
6.9 |
2.0 |
2.1 |
134 |
|
YE2-180L-6 |
15 |
20 |
31 |
29 |
970 |
143.2 |
0.82 |
89.7 |
7.3 |
2.0 |
2.1 |
178 |
|
YE2-200L1-6 |
18.5 |
25 |
39 |
37 |
975 |
176.7 |
0.80 |
90.4 |
7.2 |
2.0 |
2.1 |
226 |
|

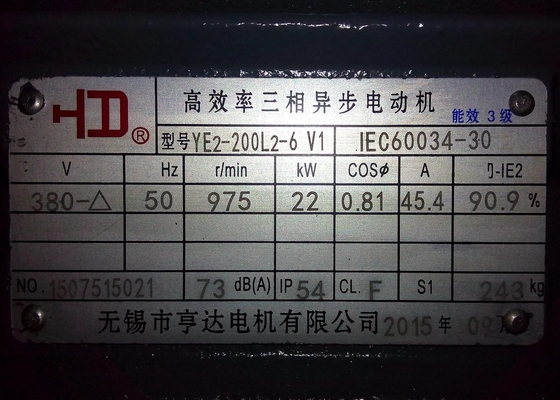

YE2-200L2-6 |
22 |
30 |
45 |
43 |
975 |
210.1 |
0.81 |
90.9 |
7.3 |
2.0 |
2.1 |
243 |
|
YE2-225M-6 |
30 |
40 |
61 |
58 |
980 |
286.5 |
0.82 |
91.7 |
6.8 |
2.0 |
2.1 |
294 |
|
YE2-250M-6 |
37 |
50 |
73 |
70 |
980 |
353.3 |
0.83 |
92.2 |
7.0 |
2.0 |
2.1 |
369 |
|
YE2-280S-6 |
45 |
60 |
87 |
82 |
980 |
429.7 |
0.85 |
92.7 |
7.2 |
2.0 |
2.0 |
513 |
|
YE2-280M-6 |
55 |
75 |
104 |
99 |
980 |
525.2 |
0.86 |
93.1 |
7.2 |
2.0 |
2.0 |
661 |
|
YE2-315S-6 |
75 |
100 |
145 |
138 |
985 |
716.2 |
0.84 |
93.7 |
6.5 |
2.0 |
2.0 |
910 |
|
YE2-315M-6 |
90 |
125 |
171 |
163 |
985 |
859.4 |
0.85 |
94.0 |
6.6 |
2.0 |
2.0 |
970 |
|
YE2-315L1-6 |
110 |
150 |
209 |
198 |
985 |
1050.4 |
0.85 |
94.3 |
6.6 |
2.0 |
2.0 |
1155 |
|
YE2-315L2-6 |
132 |
180 |
247 |
234 |
985 |
1260.5 |
0.86 |
94.6 |
6.6 |
2.0 |
2.0 |
1260 |
|
YE2-355M1-6 |
160 |
215 |
298 |
283 |
990 |
1527.8 |
0.86 |
94.8 |
6.7 |
2.0 |
2.0 |
1638 |
|
YE2-355M2-6 |
200 |
270 |
372 |
353 |
990 |
1909.8 |
0.86 |
95.0 |
6.8 |
2.0 |
2.0 |
1788 |
|
YE2-355L-6 |
250 |
340 |
465 |
442 |
990 |
2387.3 |
0.86 |
95.0 |
6.8 |
2.0 |
2.0 |
1931 |
|
YE2-355X1-6 |
315 |
420 |
586 |
557 |
990 |
3007.9 |
0.86 |
95.0 |
6.8 |
2.0 |
2.0 |
1960 |
Greasing Period
|
Greasing Type |
Frame Size |
Poles |
Grease Life/Relubrication Interval(Up to CT40℃) |
|
Prelubricated |
H80~160 |
4,6 |
40000 h |
|
H180~280 |
4,6 |
40000 h |
|
|
Regreasing |
H315~355 |
4,6 |
60000 h |
Bearings
|
Frame |
DE side |
NDE side |
|
80 |
6204-2Z-C3 |
6204-2Z-C3 |
|
90 |
6205-2Z-C3 |
6205-2Z-C3 |
|
100 |
6206-2Z-C3 |
6206-2Z-C3 |
|
112 |
6306-2Z-C3 |
6306-2Z-C3 |
|
132 |
6308-2Z-C3 |
6308-2Z-C3 |
|
160 |
6309-2Z-C3 |
6309-2Z-C3 |
|
180 |
6311-C3 |
6311-C3 |
|
200 |
6312-C3 |
6312-C3 |
|
225 |
6313-C3 |
6313-C3 |
|
250 |
6314-C3 |
6314-C3 |
|
280 |
6317-C3 |
6317-C3 |
|
315 |
6319-C3/NU319 |
6319-C3 |
|
355 |
6322-C3/NU322 |
6322-C3 |
The following as options or customer’s request:
Protection class IP56
Space heater
Heat protector
Vibration detector
Special mounting dimension and shaft dimension
Low vibration and low noise
Bearing thermometer PT100(frame size H180 and above)
Winding thermometer PT100
Special painting
Humid-tropical “TH”
Others
