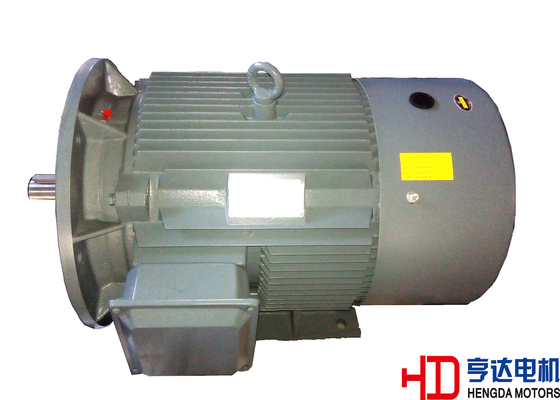

4 Pole Three Phase Industrial Electric Motors 2.2KW 380V 50HZ With CE / ISO9001

large.img.alt
small.img.alt small.img.alt

Large Image :  4 Pole Three Phase Industrial Electric Motors 2.2KW 380V 50HZ With CE / ISO9001 Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YE2-4pole
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
Efficiency Level: IE2 Frame Size: H80~355 Cast Iron Frame
Output Range: 0.75~375KW Pole: 4
High Light:

waterproof electric motor

,

lightweight electric motor

4 Pole Three Phase Industrial Electric Motors 2.2KW 380V 50HZ With CE / ISO9001





Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%



Standard Feature:

Standard

IEC/GB

Phase

Three-phase

Protect Feature

Totally Enclosed

Voltage

380V

Frequency

50HZ

Protection Class

IP55

Insulation

F/B

Mounting

IMB3 /IMB35/IMV1 or on your request

Cooling

IC411

Duty

S1

Connection

” Y" type for 3kW and downwards, "D" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements



Technical Specification (4 pole/1500r/min  380V/50HZ )

Motor    Type

Rated    Power

Current

Rated       Speed

Rated       Torque

Power  Factor

Efficiency

Locked Current

Locked Torque

Maximum Torque

Weight

Rated Current

Rated Torque

Rated Torque

KW

HP

380V  InA

400V IoA

r/min

N.m

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

kg

YE2-80M2-4

0.75

1

2

2

1380

4.8

0.76

79.6

6.4

2.3

2.3

16

YE2-90S-4

1.1

1.5

3

3

1390

7.0

0.77

81.4

6.6

2.3

2.3

22

YE2-90L-4

1.5

2

4

3

1390

9.5

0.78

82.8

6.7

2.3

2.3

27

YE2-100L1-4

2.2

3

5

5

1410

14.0

0.80

84.3

7.3

2.3

2.3

34

YE2-100L2-4

3

4

7

6

1410

19.1

0.81

85.5

7.5

2.3

2.3

35

YE2-112M-4

4

5.5

9

8

1440

25.5

0.81

86.6

7.5

2.3

2.3

44

YE2-132S-4

5.5

7.5

12

11

1445

35.0

0.82

87.7

7.5

2.0

2.3

61

YE2-132M-4

7.5

10

15

15

1445

47.7

0.83

88.7

7.3

2.0

2.3

73

YE2-160M-4

11

15

22

21

1460

70.0

0.83

89.8

7.4

2.0

2.3

113

YE2-160L-4

15

20

30

28

1460

95.5

0.84

90.6

7.5

2.0

2.3

133

YE2-180M-4

18.5

25

36

34

1470

117.8

0.85

91.2

7.6

2.0

2.3

167

YE2-180L-4

22

30

43

41

1470

140.1

0.85

91.6

7.7

2.1

2.3

181

YE2-200L-4

30

40

58

55

1470

191.0

0.85

92.3

7.1

2.1

2.3

232

YE2-225S-4

37

50

71

67

1475

235.5

0.86

92.7

7.3

2.1

2.3

287

YE2-225M-4

45

60

85

81

1475

286.5

0.86

93.1

7.3

2.2

2.3

322

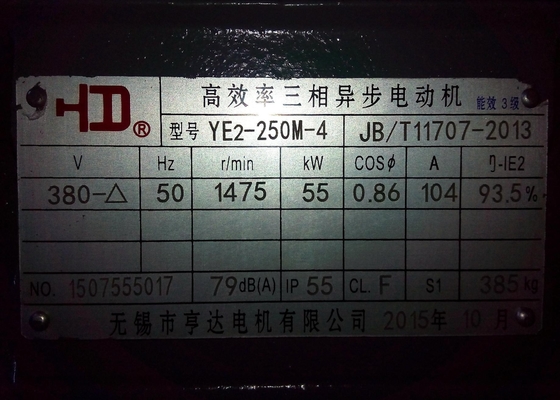

YE2-250M-4

55

75

104

99

1475

350.1

0.86

93.5

7.3

2.2

2.3

385

YE2-280S-4

75

100

139

132

1485

477.5

0.87

94.0

6.8

2.2

2.3

510

YE2-280M-4

90

125

165

157

1485

572.9

0.88

94.2

6.9

2.2

2.3

600

YE2-315S-4

110

150

199

189

1485

700.3

0.89

94.5

6.9

2.1

2.2

930

YE2-315M-4

132

180

238

226

1485

840.3

0.89

94.7

6.9

2.1

2.2

1010

YE2-315L1-4

160

215

285

270

1485

1018.6

0.90

94.9

6.9

2.1

2.2

1070

YE2-315L2-4

200

270

355

337

1485

1273.2

0.90

95.1

6.9

2.1

2.2

1170

YE2-355M-4

250

340

444

422

1490

1591.5

0.90

95.1

6.9

2.0

2.2

1720

YE2-355L-4

315

420

559

531

1490

2005.3

0.90

95.1

6.9

2.0

2.2

1870

YE2-355X1-4

355

475

637

605

1490

2259.9

0.89

95.1

6.5

1.7

2.2

1930

YE2-355X2-4

375

500

681

647

1490

2387.3

0.88

95.1

6.5

1.7

2.2

1960



Greasing Period

Greasing Type

Frame Size

Pole

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

4

40000 h

H180~280

4

40000 h

Regreasing

H315~355

4

60000 h



Bearings

Frame

DE side

NDE side

80

6204-2Z-C3

6204-2Z-C3

90

6205-2Z-C3

6205-2Z-C3

100

6206-2Z-C3

6206-2Z-C3

112

6306-2Z-C3

6306-2Z-C3

132

6308-2Z-C3

6308-2Z-C3

160

6309-2Z-C3

6309-2Z-C3

180

6311-C3

6311-C3

200

6312-C3

6312-C3

225

6313-C3

6313-C3

250

6314-C3

6314-C3

280

6317-C3

6317-C3

315

6319-C3/NU319

6319-C3

355

6322-C3/NU322

6322-C3





Description:



YE2-4 pole series high-efficiency three phase asynchronous motor is a development based on the YP2-4 pole series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.





The following as options or customer’s request:



  Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others





Applications:



They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
