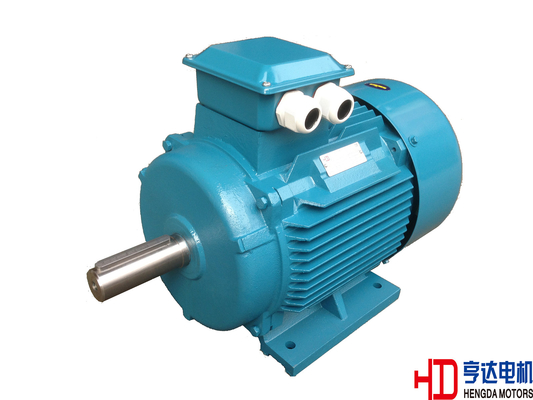

High Efficiency Low Voltage Three Phase Asynchronous Motors / Electric Induction Motor

Large Image : High Efficiency Low Voltage Three Phase Asynchronous Motors / Electric Induction Motor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE3-4 pole

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

Frame Size:

H80~355 Cast Iron Frame

Output Range:

0.75~375KW

Pole:

High Light:

high torque electric motors

3 phase synchronous motor

High Efficiency Low Voltage Three Phase Asynchronous Motors / Electric Induction Motor

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Protection Class	IP55
Insulation	F/B
Mounting	IMB3 /IMB35/IMV1 or on your request
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Technical Specification (4 pole/1500r/min 380V/50HZ )

Motor Type	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Locked Current	Locked Torque	Maximum Torque	Weight
	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Rated Current	Rated Torque	Rated Torque	Weight
	KW	HP	380V InA	400V IoA	r/min	N.m	cosΦ	η%	Ist/IN	Tst/TN	TM/TN	kg
YE3-80M2-4	0.75	1	1.8	1.7	1380	4.77	0.75	82.5	6.6	2.3	2.3	16
YE3-90S-4	1.1	1.5	2.6	2.5	1390	7.00	0.76	84.1	6.8	2.3	2.3	22
YE3-90L-4	1.5	2	3.5	3.3	1390	9.55	0.77	85.3	7.0	2.3	2.3	27
YE3-100L1-4	2.2	3	4.8	4.5	1410	14.01	0.81	86.7	7.6	2.3	2.3	34
YE3-100L2-4	3	4	6.3	6.0	1410	19.10	0.82	87.7	7.6	2.3	2.3	35
YE3-112M-4	4	5.5	8.4	7.9	1440	25.46	0.82	88.6	7.8	2.2	2.3	44
YE3-132S-4	5.5	7.5	11.2	10.7	1445	35.01	0.83	89.6	7.9	2.0	2.3	61
YE3-132M-4	7.5	10	15.0	14.3	1445	47.75	0.84	90.4	7.5	2.0	2.3	73
YE3-160M-4	11	15	21.5	20.4	1460	70.03	0.85	91.4	7.7	2.2	2.3	113
YE3-160L-4	15	20	28.8	27.3	1460	95.49	0.86	92.1	7.8	2.2	2.3	133
YE3-180M-4	18.5	25	35.3	33.5	1470	117.77	0.86	92.6	7.8	2.0	2.3	167
YE3-180L-4	22	30	41.8	39.7	1470	140.05	0.86	93.0	7.8	2.0	2.3	181
YE3-200L-4	30	40	56.6	53.8	1470	190.98	0.86	93.6	7.3	2.0	2.3	232
YE3-225S-4	37	50	69.6	66.1	1475	235.54	0.86	93.9	7.4	2.0	2.3	287
YE3-225M-4	45	60	84.4	80.2	1475	286.47	0.86	94.2	7.4	2.0	2.3	322
YE3-250M-4	55	75	102.7	97.6	1475	350.13	0.86	94.6	7.4	2.2	2.3	385
YE3-280S-4	75	100	136.3	129.5	1485	477.45	0.88	95.0	6.9	2.0	2.3	510
YE3-280M-4	90	125	163.2	155.1	1485	572.94	0.88	95.2	6.9	2.0	2.3	600
YE3-315S-4	110	150	196.8	187.0	1485	700.26	0.89	95.4	7.0	2.0	2.2	930
YE3-315M-4	132	180	235.7	223.9	1485	840.31	0.89	95.6	7.0	2.0	2.2	1010
YE3-315L1-4	160	215	285.1	270.9	1485	1018.56	0.89	95.8	7.1	2.0	2.2	1070
YE3-315L2-4	200	270	351.7	334.1	1485	1273.20	0.90	96.0	7.1	2.0	2.2	1170
YE3-355M-4	250	340	439.6	417.7	1490	1591.50	0.90	96.0	7.1	2.0	2.2	1720
YE3-355L-4	315	420	553.9	526.2	1490	2005.29	0.90	96.0	7.1	2.0	2.2	1870
YE3-355X1-4	355	475	638.5	606.5	1490	2259.93	0.88	96.0	7.0	1.7	2.2	1960
YE3-355X2-4	375	500	674.4	640.7	1490	2387.25	0.88	96.0	7.0	1.7	2.2	1980

Greasing Period

Greasing Type	Frame Size	Pole	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	4	40000 h
Prelubricated	H180~280	4	40000 h
Regreasing	H315~355	4	60000 h

Bearings

Frame	DE side	NDE side
80	6204-2Z-C3	6204-2Z-C3
90	6205-2Z-C3	6205-2Z-C3
100	6206-2Z-C3	6206-2Z-C3
112	6306-2Z-C3	6306-2Z-C3
132	6308-2Z-C3	6308-2Z-C3
160	6309-2Z-C3	6309-2Z-C3
180	6311-C3	6311-C3
200	6312-C3	6312-C3
225	6313-C3	6313-C3
250	6314-C3	6314-C3
280	6317-C3	6317-C3
315	6319-C3/NU319	6319-C3
355	6322-C3/NU322	6322-C3

Description:

YE3-4 pole series super-high efficiency three phase asynchronous motor is energy saving motor .The mounting, bearings, terminal box, mounting dimensions are as the same as YP2-4 pole series. But its average efficiency is 4% higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
