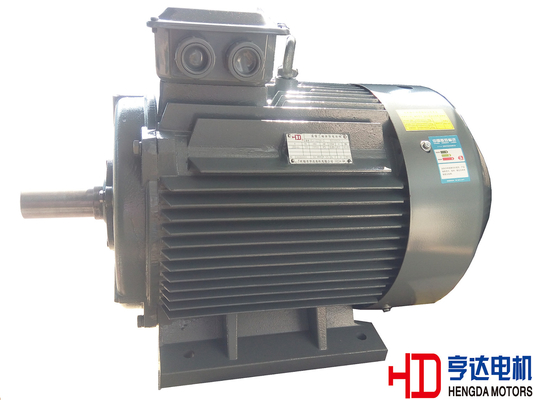

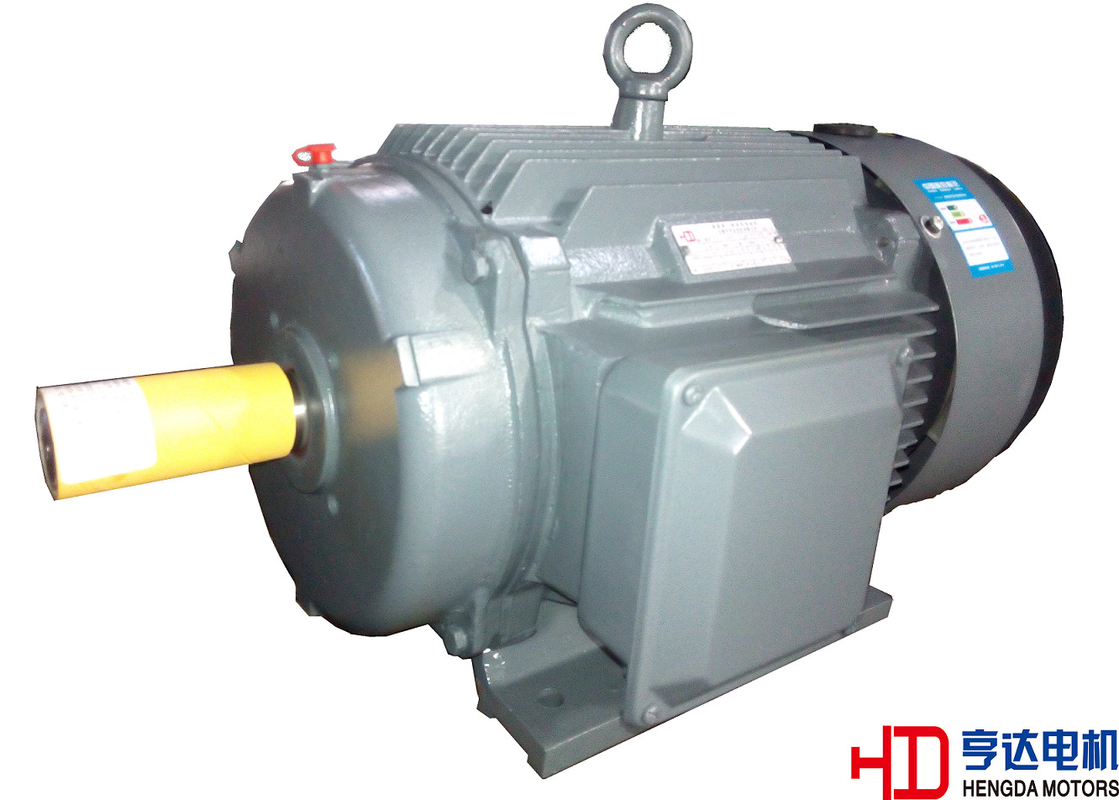

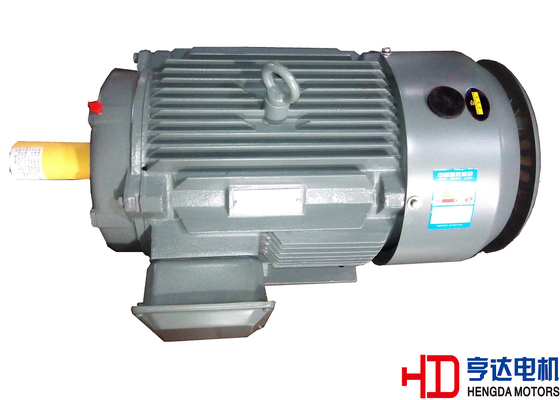

High Efficiency 3 Phase Industrial Electric Motors 10HP / 15HP / 20HP , Variable Speed

Large Image : High Efficiency 3 Phase Industrial Electric Motors 10HP / 15HP / 20HP , Variable Speed Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE2-2 pole

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

Frame Size:

H80~355 Cast Iron Frame

Output Range:

0.75~375KW

Pole:

High Light:

high efficiency electric motors

waterproof electric motor

High Efficiency 3 Phase Industrial Electric Motors 10HP / 15HP / 20HP , Variable Speed

Description:

YE2-2 pole series high-efficiency three phase asynchronous motor is a development based on the YP2-2 pole series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC/GB
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Protection Class	IP55
Insulation	F/B
Mounting	IMB3 /IMB35/IMV1 or on your request
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Technical Specification (2 pole/3000r/min 380V/50HZ)

Motor Type	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Locked Current	Locked Torque	Maximum Torque	Weight
	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Rated Current	Rated Torque	Rated Torque	Weight
	KW	HP	380V InA	400V IoA	r/min	N.m	cosΦ	η%	Ist/IN	Tst/TN	TM/TN	kg
YE2-80M1-2	0.75	1	1.8	1.7	2845	2.4	0.82	77.4	6.8	2.3	2.3	15
YE2-80M2-2	1.1	1.5	2.5	2.4	2840	3.5	0.83	79.6	7.1	2.3	2.3	16
YE2-90S-2	1.5	2	3.3	3.2	2840	4.8	0.84	81.3	7.3	2.3	2.3	22
YE2-90L-2	2.2	3	4.7	4.5	2840	7.0	0.85	83.2	7.6	2.3	2.3	25
YE2-100L-2	3.0	4	6.2	5.9	2860	9.5	0.87	84.6	7.8	2.2	2.3	33
YE2-112M-2	4.0	5.5	8.0	7.6	2890	12.7	0.88	85.8	8.1	2.2	2.3	40
YE2-132S1-2	5.5	7.5	10.9	10.4	2910	17.5	0.88	87.0	8.2	2.2	2.3	59
YE2-132S2-2	7.5	10	14.5	13.8	2905	23.9	0.89	88.1	7.8	2.2	2.3	62
YE2-160M1-2	11	15	21.0	20.0	2935	35.0	0.89	89.4	7.9	2.2	2.3	107
YE2-160M2-2	15	20	28.4	26.9	2935	47.7	0.89	90.3	7.9	2.2	2.3	117

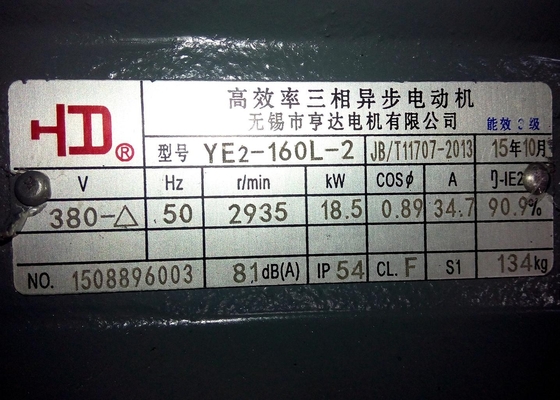

YE2-160L-2	18.5	25	34.7	33.0	2935	58.9	0.89	90.9	8.0	2.2	2.3	134
YE2-180M-2	22	30	41.1	39.1	2940	70.0	0.89	91.3	8.1	2.2	2.3	169
YE2-200L1-2	30	40	55.7	52.9	2945	95.5	0.89	92.0	7.5	2.0	2.3	220
YE2-200L2-2	37	50	68.3	64.9	2945	117.8	0.89	92.5	7.5	2.0	2.3	239
YE2-225M-2	45	60	83	79	2950	143.2	0.89	92.9	7.5	2.2	2.3	297
YE2-250M-2	55	75	101	96	2965	175.1	0.89	93.2	7.6	2.2	2.3	380
YE2-280S-2	75	100	137	130	2965	238.7	0.89	93.8	6.9	1.8	2.3	510
YE2-280M-2	90	125	163	155	2965	286.5	0.89	94.1	6.9	1.8	2.3	540
YE2-315S-2	110	150	197	187	2975	350.1	0.90	94.3	7.0	1.8	2.2	920
YE2-315M-2	132	180	236	224	2975	420.2	0.90	94.6	7.0	1.8	2.2	970
YE2-315L1-2	160	215	282	268	2975	509.3	0.91	94.8	7.1	1.8	2.2	1080
YE2-315L2-2	200	270	352	334	2975	636.6	0.91	95.0	7.1	1.8	2.2	1170
YE2-355M-2	250	340	439	417	2970	795.8	0.91	95.0	7.1	1.6	2.2	1690
YE2-355L-2	315	420	554	526	2970	1002.6	0.91	95.0	7.2	1.6	2.2	1860
YE2-355X1-2	355	475	624	593	2975	1130.0	0.91	95.0	7.2	1.6	2.2	1920
YE2-355X2-2	375	500	659	626	2975	1193.6	0.91	95.0	7.2	1.6	2.2	1960

Greasing Period

Greasing Type	Frame Size	Pole	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
Prelubricated	H180~280	2	20000 h
Regreasing	H315~355	2	30000 h

Bearings

Frame	DE side	NDE side
80	6204-2Z-C3	6204-2Z-C3
90	6205-2Z-C3	6205-2Z-C3
100	6206-2Z-C3	6206-2Z-C3
112	6306-2Z-C3	6306-2Z-C3
132	6308-2Z-C3	6308-2Z-C3
160	6309-2Z-C3	6309-2Z-C3
180	6311-C3	6311-C3
200	6312-C3	6312-C3
225	6313-C3	6313-C3
250	6314-C3	6314-C3
280	6314-C3	6314-C3
315	6317-C3	6317-C3
355	6319-C3	6319-C3

The following as options or customer’s request:

Protection class IP56

Space heater

Heat protector

Vibration detector

Special mounting dimension and shaft dimension

Low vibration and low noise

Bearing thermometer PT100(frame size H180 and above)

Winding thermometer PT100

Special painting

Humid-tropical “TH”

Others

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
