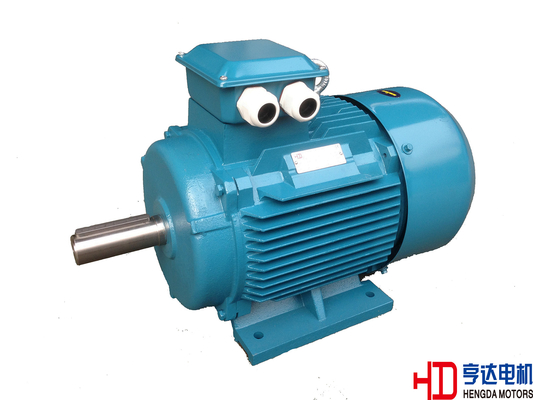

Small 2 Pole Low Voltage Electric Motor Efficiency 380V 50HZ For Mining Industrial

large.img.alt
small.img.alt small.img.alt

Large Image :  Small 2 Pole Low Voltage Electric Motor Efficiency 380V 50HZ For Mining Industrial Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YE3-2 pole
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Standard: IEC Efficiency Level: IE3
Pole: 2 Protection Class: IP55
High Light:

high torque electric motors

,

3 phase synchronous motor

Small 2 Pole Low Voltage Electric Motor Efficiency 380V 50HZ For Mining Industrial

Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Phase

Three-phase

Frame Size

H80~355 cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.75~375KW

Voltage

380V

Frequency

50HZ

Insulation

F/B

Mounting

IMB3 /IMB35/IMV1 or on your request

Cooling

IC411

Duty

S1

Connection

” Y" type for 3kW and downwards, "D" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements





Technical Specification (2 pole/3000r/min  380V/50HZ)

Motor    Type

Rated    Power

Current

Rated       Speed

Rated       Torque

Power  Factor

Efficiency

Locked Current

Locked Torque

Maximum Torque

Weight

Rated Current

Rated Torque

Rated Torque

KW

HP

380V  InA

400V IoA

r/min

N.m

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

kg

YE3-80M1-2

0.75

1

1.7

1.6

2845

2.39

0.82

80.7

7.0

2.3

2.3

15

YE3-80M2-2

1.1

1.5

2.4

2.3

2840

3.50

0.83

82.7

7.3

2.2

2.3

16

YE3-90S-2

1.5

2

3.2

3.1

2840

4.77

0.84

84.2

7.6

2.2

2.3

22

YE3-90L-2

2.2

3

4.6

4.3

2840

7.00

0.85

85.9

7.6

2.2

2.3

25

YE3-100L-2

3.0

4

6.0

5.7

2860

9.55

0.87

87.1

7.8

2.2

2.3

33

YE3-112M-2

4.0

5.5

7.8

7.4

2890

12.73

0.88

88.1

8.3

2.2

2.3

40

YE3-132S1-2

5.5

7.5

10.6

10.1

2910

17.51

0.88

89.2

8.3

2.0

2.3

59

YE3-132S2-2

7.5

10

14.4

13.7

2905

23.87

0.88

90.1

7.9

2.0

2.3

62

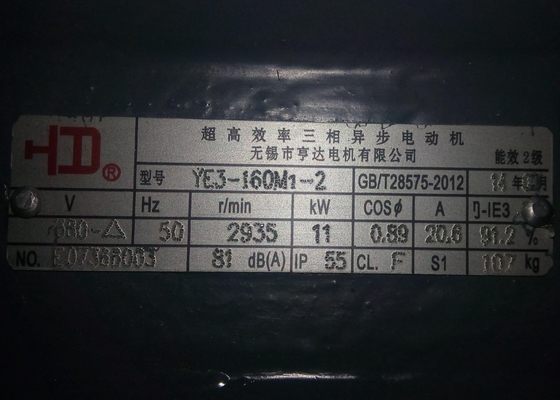

YE3-160M1-2

11

15

20.6

19.6

2935

35.01

0.89

91.2

8.1

2.0

2.3

107

YE3-160M2-2

15

20

27.9

26.5

2935

47.75

0.89

91.9

8.1

2.0

2.3

117

YE3-160L-2

18.5

25

34.2

32.5

2935

58.89

0.89

92.4

8.2

2.0

2.3

134

YE3-180M-2

22

30

40.5

38.5

2940

70.03

0.89

92.7

8.2

2.0

2.3

169

YE3-200L1-2

30

40

54.9

52.1

2945

95.49

0.89

93.3

7.6

2.0

2.3

220

YE3-200L2-2

37

50

67.4

64.0

2945

117.77

0.89

93.7

7.6

2.0

2.3

239

YE3-225M-2

45

60

80.8

76.8

2950

143.24

0.90

94.0

7.7

2.0

2.3

297

YE3-250M-2

55

75

98.5

93.5

2965

175.07

0.90

94.3

7.7

2.0

2.3

380

YE3-280S-2

75

100

133.7

127.0

2965

238.73

0.90

94.7

7.1

1.8

2.3

510

YE3-280M-2

90

125

159.9

151.9

2965

286.47

0.90

95.0

7.1

1.8

2.3

540

YE3-315S-2

110

150

195.1

185.3

2975

350.13

0.90

95.2

7.1

1.8

2.3

920

YE3-315M-2

132

180

233.6

221.9

2975

420.16

0.90

95.4

7.1

1.8

2.3

970

YE3-315L1-2

160

215

279.4

265.5

2975

509.28

0.91

95.6

7.2

1.8

2.3

1080

YE3-315L2-2

200

270

348.6

331.1

2975

636.60

0.91

95.8

7.2

1.8

2.2

1170

YE3-355M-2

250

340

435.7

413.9

2970

795.75

0.91

95.8

7.2

1.6

2.2

1690

YE3-355L-2

315

420

549.0

521.5

2970

1002.65

0.91

95.8

7.2

1.6

2.2

1860

YE3-355X1-2

355

475

618.7

587.8

2970

1129.97

0.91

95.8

7.2

1.6

2.2

1960

YE3-355X2-2

375

500

653.6

620.9

2970

1193.63

0.91

95.8

7.2

1.6

2.2

1980



Greasing Period

Greasing Type

Frame Size

Pole

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

2

20000 h

H180~280

2

20000 h

Regreasing

H315~355

2

30000 h



Bearings

Frame

DE side

NDE side

80

6204-2Z-C3

6204-2Z-C3

90

6205-2Z-C3

6205-2Z-C3

100

6206-2Z-C3

6206-2Z-C3

112

6306-2Z-C3

6306-2Z-C3

132

6308-2Z-C3

6308-2Z-C3

160

6309-2Z-C3

6309-2Z-C3

180

6311-C3

6311-C3

200

6312-C3

6312-C3

225

6313-C3

6313-C3

250

6314-C3

6314-C3

280

6314-C3

6314-C3

315

6317-C3

6317-C3

355

6319-C3

6319-C3





Description:

YE3-2 pole series super-high efficiency three phase asynchronous motor is energy saving motor .The mounting, bearings, terminal box, mounting dimensions are as the same as YP2-2 pole series. But its average efficiency is 4% higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.



The following as options or customer’s request:

  Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others



Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
