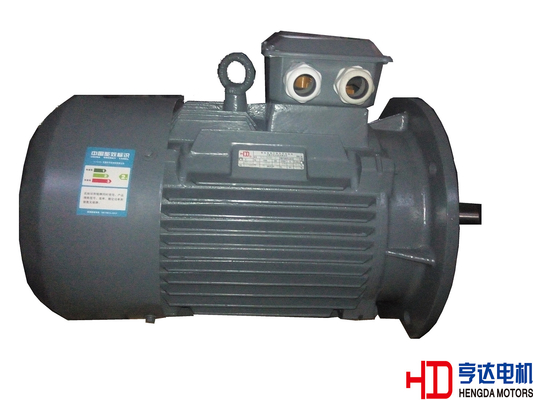

High Power 1.5KW 4KW Low Voltage Electric Motor 3000 rpm , High Performance

Large Image : High Power 1.5KW 4KW Low Voltage Electric Motor 3000 rpm , High Performance Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE3-B5

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

IE3

Frame Size:

H80~280 Cast Iron Frame

Output Range:

0.75~375KW

Mounting:

IMB5/IM3001

High Light:

high torque electric motors

3 phase synchronous motor

High Power 1.5KW / 4KW Low Voltage Electric Motor 3000 rpm , High Performance

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC/GB
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Pole	2,4,6
Protection Class	IP55
Insulation	F/B
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
	H80~160	4,6	40000 h
	H180~280	2	20000 h
	H180~280	4,6	40000 h
Regreasing	H315~355	2	30000 h
Regreasing	H315~355	4,6	60000 h

Rated Power

Motor Type	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	kW	HP	kW	HP	kW	HP
YE3-80M1	0.75	1
YE3-80M2	1.1	1.5	0.75	1
YE3-90S	1.5	2	1.1	1.5	0.75	1
YE3-90L	2.2	3	1.5	2	1.1	1.5
YE3-100L	3.0	4	2.2	3	1.5	2
YE3-100L			3	4
YE3-112M	4.0	5.5	4	5.5	2.2	3
YE3-132S	5.5	7.5	5.5	7.5	3	4
YE3-132S	7.5	10
YE3-132M1			7.5	10	4	5.5
YE3-132M2					5.5	7.5
YE3-160M1-2	11	15	11	15	7.5	10
YE3-160M2-2	15	20
YE3-160L	18.5	25	15	20	11	15
YE3-180M	22	30	18.5	25
YE3-180L			22	30	15	20
YE3-200L1	30	40	30	40	18.5	25
YE3-200L2	37	50			22	30
YE3-225S			37	50
YE3-225M	45	60	45	60	30	40
YE3-250M	55	75	55	75	37	50
YE3-280S	75	100	75	100	45	60
YE3-280M	90	125	90	125	55	75

Mounting Type:IMB5 /IM3001: without feet , but with flange on the DE side.

High Power 1.5KW 4KW Low Voltage Electric Motor 3000 rpm , High Performance 0

IM B5 Mounting and overall dimensions(mm)

Frame Size	Pole	Mounting Dimensions (mm)										Overall Dimensions (mm)
Frame Size	Pole	D	E	F	G	M	N	P	S	T	R	AC	AD	LD	LA	L
80M	2,4,6,8	19	40	6	15.5	165	130	200	4-￠12	3.5	0	167	165	74	12	300
90S	2,4,6,8	24	50	8	20	165	130	200	4-￠12	3.5	0	190	175	76	12	350
90L	2,4,6,8	24	50	8	20	165	130	200	4-￠12	3.5	0	190	175	76	12	385
100L	2,4,6,8	28	60	8	24	215	180	250	4-￠14.5	4	0	215	200	83	13	435
112M	2,4,6,8	28	60	8	24	215	180	250	4-￠14.5	4	0	240	220	87	14	470
132S	2,4,6,8	38	80	10	33	265	230	300	4-￠14.5	4	0	275	240	102	14	510
132M	2,4,6,8	38	80	10	33	265	230	300	4-￠14.5	4	0	275	240	102	14	560
160M	2,4,6,8	42	110	12	37	300	250	350	4-￠18.5	5	0	320	285	149	15	670
160L	2,4,6,8	42	110	12	37	300	250	350	4-￠18.5	5	0	320	285	149	15	700
180M	2,4,6,8	48	110	14	42.5	300	250	350	4-￠18.5	5	0	380	310	161	15	740
180L	2,4,6,8	48	110	14	42.5	300	250	350	4-￠18.5	5	0	380	310	161	15	780
200L	2,4,6,8	55	110	16	49	350	300	400	4-￠18.5	5	0	410	335	186	17	780
225S	4.8	60	140	18	53	400	350	450	4-￠18.5	5	0	470	370	189	20	820
225M	2	55	110	16	49	400	350	450	4-￠18.5	5	0	470	370	189	20	815
225M	4,6,8	60	140	18	53	400	350	450	4-￠18.5	5	0	470	370	189	20	845
250M	2	60	140	18	53	500	450	550	4-￠18.5	5	0	490	380	207	22	915
250M	4,6,8	65	140	18	58	500	450	550	4-￠18.5	5	0	490	380	207	22	915
280S	2	65	140	18	58	500	450	550	4-￠18.5	5	0	580	410	215	22	985
280S	4,6,8	75	140	20	67.5	500	450	550	4-￠18.5	5	0	580	410	215	22	985
280M	2	65	140	18	58	500	450	550	4-￠18.5	5	0	580	410	215	22	1035
280M	4,6,8	75	140	20	67.5	500	450	550	4-￠18.5	5	0	580	410	215	22	1035

Remark: R=Distance from flange to shaft shoulder.

Terminal Box

Frame Size	Dia.of the thread(mm)	*XYZ(mm)*
80	1-M24*1.5	959550
90-100	1-M24*1.5	10210250
112-132	2-M30*2	10812375
160-180	2-M36*2	150160105
200-225	2-M48*2	188208105
250-280	2-M64*2	216251120

Description:

YE2 series high-efficiency three phase asynchronous motor is a development based on the YP2 series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
