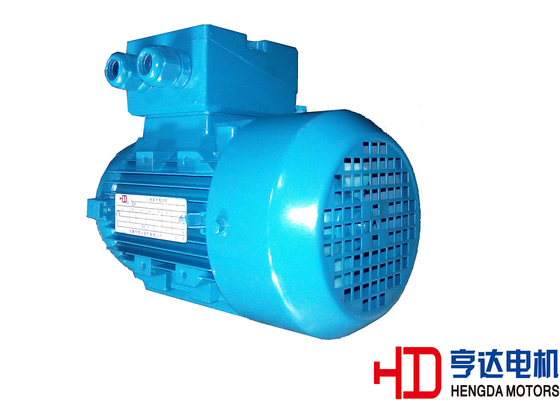

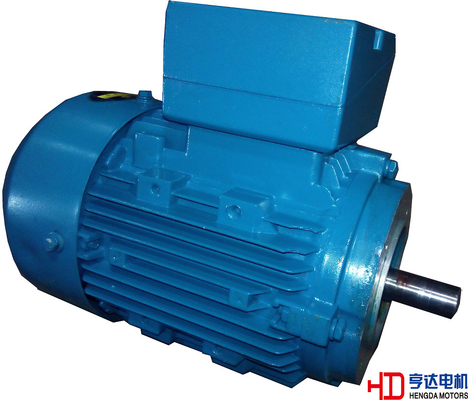

Fan Cooled Squirrel Cage 3 Phase Asynchronous Motor with H63-132 Aluminum Frame

large.img.alt
small.img.alt small.img.alt

Large Image :  Fan Cooled Squirrel Cage 3 Phase Asynchronous Motor with H63-132 Aluminum Frame Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: Y2A-B14
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Efficiency Level: IE1 Frame Size: H63~132 Aluminum Frame
Phase: Three-phase Output Range: 0.12~7.5KW
High Light:

three phase induction motor

,

explosion proof electric motors

Fan Cooled Squirrel Cage 3 Phase Asynchronous Motor with H63-132 Aluminum Frame





Temperature range:

-20~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC /DIN

Protect Feature

Totally Enclosed

Voltage

380V

Frequency

50HZ

Poles

2,4,6,8

Protection Class

IP54/IP55

Insulation

F/B

Mounting

IMB14 /IM3601

Cooling

IC411

Duty

S1

Connection

” Y" type for 3kW and downwards, "D" type for 4kW and upwards

Thermometry

Optional

Overload Times

According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes.

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements





Rated Power

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

8pole /750 rpm

kW

HP

kW

HP

kW

HP

kW

HP

Y2A-63

0.18

0.24

0.12

0.16

　

　

　

　

Y2A-63

0.25

0.33

0.18

0.24

　

　

　

　

Y2A-71

0.37

0.5

0.25

0.33

0.18

0.24

　

　

Y2A-71

0.55

0.75

0.37

0.5

0.25

0.33

　

　

Y2A-80

0.75

1

0.55

0.75

0.37

0.5

0.18

0.24

Y2A-80

1.1

1.5

0.75

1

0.55

0.75

0.25

0.33

Y2A-90S

1.5

2

1.1

1.5

0.75

1

0.37

0.5

Y2A-90L

2.2

3

1.5

2

1.10

1.5

0.55

0.75

Y2A-100L

3

4

2.2

3

1.50

2

0.75

1

　

　

3

4

　

　

　

　

Y2A-112M

4

5.5

4

5.5

2.20

3

1.1

1.5

Y2A-132S

5.5

7.5

5.5

7.5

3.00

4

1.5

2

7.5

10

7.5

10

　

　

　

　

Y2A-132M

　

　

　

　

4.00

5.5

2.2

3

　

　

　

　

5.50

7.5

3.0

4



Mounting Type :IMB14 /IM3601: without feet and with flange and thread hole on the DE side.

IM B14 Mounting and overall dimensions(mm)               H63-H90  Without lifting ring

Frame Size

Pole

Mounting Dimensions (mm)

Overall Dimensions (mm)

A

B

C

D

E

F

G

H

K

M

N

P

S

T

AB

AC

AD

HD

L

63

2,4

100

80

40

11

23

4

8.5

63

7

75

60

90

4-￠5

2.5

105

130

70

180

225

71

2,4,6

112

90

45

14

30

5

11

71

7

85

70

105

4-￠6

2.5

150

145

80

195

250

80

2,4,6,8

125

100

50

19

40

6

15.5

80

10

100

80

120

4-￠6

3

165

175

145

214

295

90S

2,4,6,8

140

100

56

24

50

8

20

90

10

115

95

140

4-￠8

3

180

195

155

250

315

90L

2,4,6,8

140

125

56

24

50

8

20

90

10

115

95

140

4-￠8

3

180

195

155

250

340

100L

2,4,6,8

160

140

63

28

60

8

24

100

12

130

110

160

4-￠8

3.5

205

215

180

270

385

112M

2,4,6,8

190

140

70

28

60

8

24

112

12

130

110

160

4-￠8

3.5

230

240

190

300

400

132S

2,4,6,8

216

140

89

38

80

10

33

132

12

215

180

250

4-￠10

3.5

266

275

210

340

470

132M

2,4,6,8

216

178

89

38

80

10

33

132

12

215

180

250

4-￠10

3.5

266

275

210

340

510



Description:

Y2A series motor is totally enclosed, fan cooled, aluminum frame, squirrel-cage three-phase asynchronous motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.

Y2A series motor is characterized by low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system. Comparing with Y series, Y2A improves protection level (IP54), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.



Applications:

They can be widely used for driving various common machines and equipments such as compressors, fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum, chemical,pharmaceutical and mining industries.



Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
