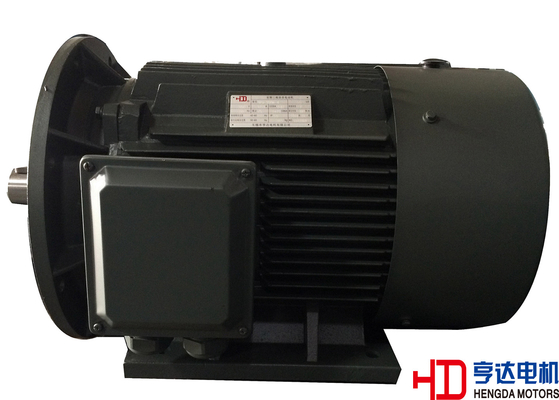

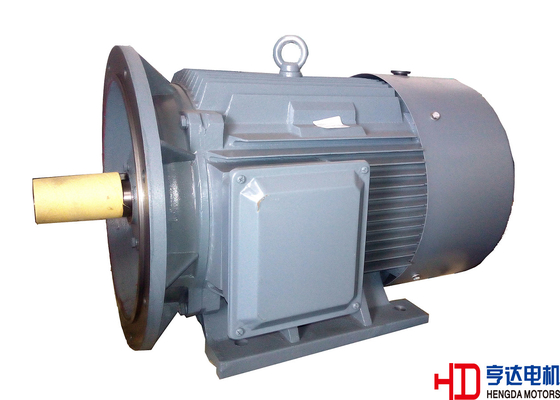

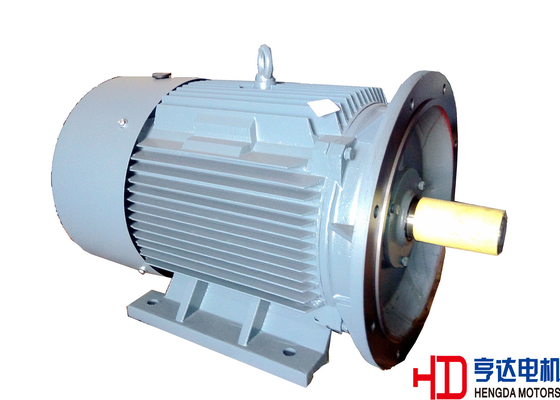

Totally Enclosed Three Phase Asynchronous Motor Industrial Electric Motors 45KW

Large Image : Totally Enclosed Three Phase Asynchronous Motor Industrial Electric Motors 45KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YP2-B35

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

IE1

Frame Size:

H80~355cast Iron Frame

Output Range:

0.18~375KW

Mounting:

IMB35 /IM2001

High Light:

three phase induction motor

squirrel cage induction motor

Totally Enclosed Three Phase Asynchronous Motor Industrial Electric Motors 45KW

Ambient
Temperature range:	-20~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%

Standard Feature:
Standard	IEC /DIN
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	40-60HZ (50-60HZ constant power)
Poles	2, 4 , 6 ,8,10
Protection Class	IP54/IP55
Insulation	F/B
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
	H80~160	4,6	40000 h
	H180~280	2	20000 h
	H180~280	4,6	40000 h

Rated Power

Motor Type	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm		8pole /750 rpm
	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm		8pole /750 rpm
	kW	HP	kW	HP	kW	HP	kW	HP
YP2-80M1	0.75	1	0.55	0.75	0.37	0.5	0.18	0.24
YP2-80M2	1.1	1.5	0.75	1	0.55	0.75	0.25	0.33
YP2-90S	1.5	2	1.1	1.5	0.75	1	0.37	0.5
YP2-90L	2.2	3	1.5	2	1.1	1.5	0.55	0.75
YP2-100L	3.0	4	2.2	3	1.5	2	0.75	1
YP2-100L			3	4			1.1	1.5
YP2-112M	4.0	5.5	4	5.5	2.2	3	1.5	2
YP2-132S1	5.5	7.5	5.5	7.5	3	4	2.2	3
YP2-132S2	7.5	10	7.5	10
YP2-132M					4	5.5	3	4
YP2-132M					5.5	7.5
YP2-160M	11	15	11	15	7.5	10	4	5.5
YP2-160M	15	20					5.5	7.5
YP2-160L	18.5	25	15	20	11	15	7.5	10
YP2-180M	22	30	18.5	25			11	15
YP2-180L			22	30	15	20
YP2-200L	30	40	30	40	18.5	25	15	20
YP2-200L	37	50			22	30
YP2-225S			37	50			18.5	25
YP2-225M	45	60	45	60	30	40	22	30
YP2-250M	55	75	55	75	37	50	30	40
YP2-280S	75	100	75	100	45	60	37	50
YP2-280M	90	125	90	125	55	75	45	60

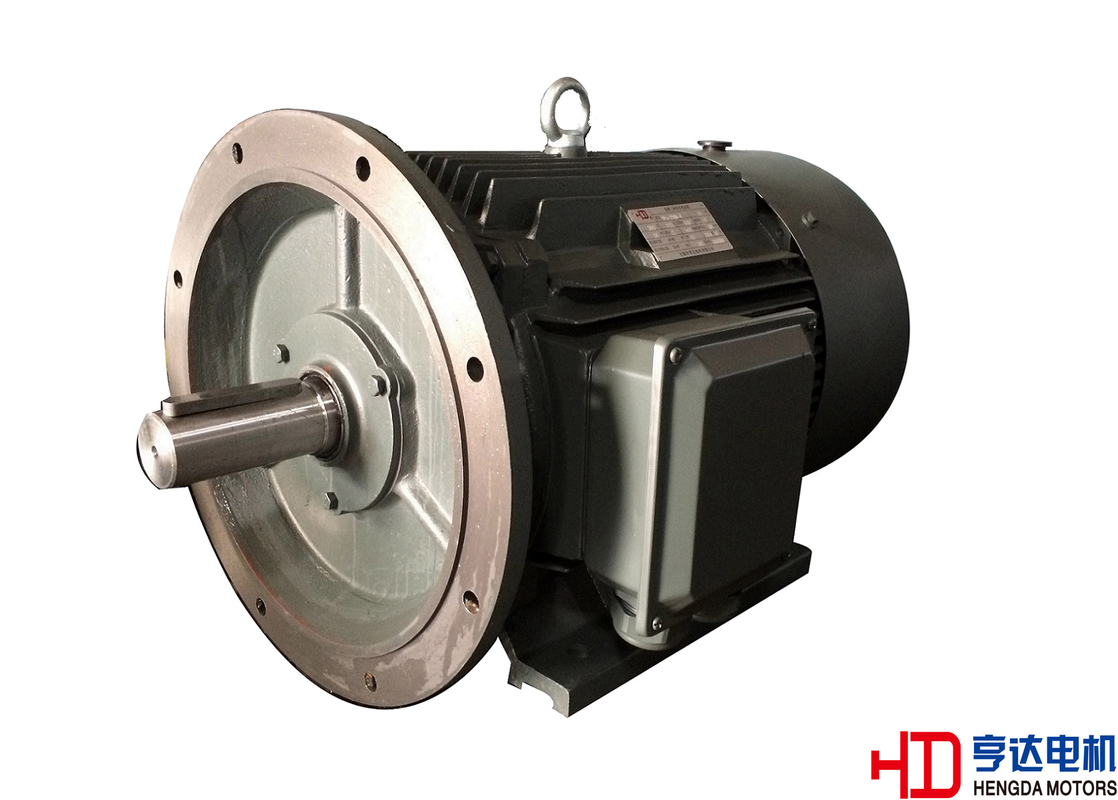

Mounting Type: IMB35 /IM2001: with feet and with flange on the DE side.

IM B35 Mounting and overall dimensions(mm) H80-H90 Without lifting ring

Totally Enclosed Three Phase Asynchronous Motor Industrial Electric Motors 45KW 0

Frame Size	Pole	Mounting Dimensions (mm)															Overall Dimensions (mm)
Frame Size	Pole	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AA	AB	AC	AD	HD	LD	BB	HA	L
80M	2,4,6,8	125	100	50	19	40	6	15.5	80	10	165	130	200	0	4-￠12	3.5	34	165	167	165	245	74	130	10	300
90S	2,4,6,8	140	100	56	24	50	8	20	90	10	165	130	200	0	4-￠12	3.5	36	180	190	175	265	76	140	12	355
90L	2,4,6,8	140	125	56	24	50	8	20	90	10	165	130	200	0	4-￠12	3.5	36	180	190	175	265	76	165	12	385
100L	2,4,6,8	160	140	63	28	60	8	24	100	12	215	180	250	0	4-￠14.5	4	40	205	215	200	290	83	176	14	435
112M	2,4,6,8	190	140	70	28	60	8	24	112	12	215	180	250	0	4-￠14.5	4	45	230	240	220	325	87	180	15	470
132S	2,4,6,8	216	140	89	38	80	10	33	132	12	265	230	300	0	4-￠14.5	4	55	270	275	240	365	102	186	18	510
132M	2,4,6,8	216	178	89	38	80	10	33	132	12	265	230	300	0	4-￠14.5	4	55	270	275	240	365	102	224	18	560
160M	2,4,6,8	254	210	108	42	110	12	37	160	14.5	300	250	350	0	4-￠18.5	5	65	320	320	285	440	149	260	20	670
160L	2,4,6,8	254	254	108	42	110	12	37	160	14.5	300	250	350	0	4-￠18.5	5	65	320	320	285	440	149	260	20	700
180M	2,4,6,8	279	241	121	48	110	14	42.5	180	14.5	300	250	350	0	4-￠18.5	5	70	355	380	310	470	161	315	22	740
180L	2,4,6,8	279	279	121	48	110	14	42.5	180	14.5	300	250	350	0	4-￠18.5	5	70	355	380	310	470	161	350	22	780
200L	2,4,6,8	318	305	133	55	110	16	49	200	18.5	350	300	400	0	4-￠18.5	5	70	395	410	335	525	186	370	25	780
225S	4.8	356	286	149	60	140	18	53	225	18.5	400	350	450	0	8-￠18.5	5	75	435	470	370	580	189	388	28	820
225M	2	356	311	149	55	110	16	49	225	18.5	400	350	450	0	8-￠18.5	5	75	435	470	370	580	189	395	28	815
225M	4,6,8	356	311	149	60	140	18	53	225	18.5	400	350	450	0	8-￠18.5	5	75	435	470	370	580	189	395	28	845
250M	2	406	349	168	60	140	18	53	250	24	500	450	550	0	8-￠18.5	5	80	490	490	380	635	207	445	30	915
250M	4,6,8	406	349	168	65	140	18	58	250	24	500	450	550	0	8-￠18.5	5	80	490	490	380	635	207	445	30	915
280S	2	457	368	190	65	140	18	58	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	485	35	985
280S	4,6,8	457	368	190	75	140	20	67.5	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	485	35	985
280M	2	457	419	190	65	140	18	58	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	540	35	1035
280M	4,6,8	457	419	190	75	140	20	67.5	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	540	35	1035
315S	2	508	406	216	65	140	18	58	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	570	45	1200
315S	4,6,8,10	508	406	216	80	170	22	71	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	570	45	1230
315M	2	508	457	216	65	140	18	58	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1310
315M	4,6,8,10	508	457	216	80	170	22	71	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1340
315L	2	508	508	216	65	140	18	58	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1310
315L	4,6,8,10	508	508	216	80	170	22	71	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1340
355M	2	610	560	254	75	140	20	67.5	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1510
355M	4,6,8,10	610	560	254	95	170	25	86	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1550
355L	2	610	630	254	75	140	20	67.5	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1510
355L	4,6,8,10	610	630	254	95	170	25	86	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1550

Remark: R=Distance from flange to shaft shoulder.

Terminal Box

Frame Size	Dia.of the thread(mm)	*XYZ(mm)*
80	1-M24*1.5	959550
90-100	1-M24*1.5	10210250
112-132	2-M30*2	10812375
160-180	2-M36*2	150160105
200-225	2-M48*2	188208105
250-280	2-M64*2	216251120
315	2-M64*2	300358198
355	2-M72*2	300380200

Description:

YP2 series motor is totally enclosed, fan cooled, squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.

YP2 series motor is characterized by high efficiency, energy saving, low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system.Comparing with Y series, YP2 improves protection level (IP54 or IP55), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.

The following as options or customer’s request:

Protection class IP56

Space heater

Heat protector

Vibration detector

Special mounting dimension and shaft dimension

Low vibration and low noise

Bearing thermometer PT100(frame size H180 and above)

Winding thermometer PT100

Special painting

Humid-tropical “TH”

Others

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
