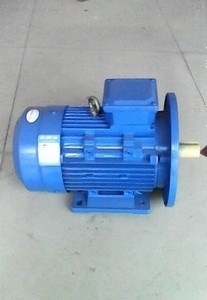

Heavy Duty 3 Phase Industrial Electric Motors , Electric Industrial Motor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | high efficiency electric motors,lightweight electric motor |
||
|---|---|---|---|
Heavy Duty 3 Phase Industrial Electric Motors , Electric Industrial Motor
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC |
|
Efficiency Level |
IE2 |
|
Phase |
Three-phase |
|
Frame Size |
H71~132 Aluminum Frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.25~7.5KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Pole |
2,4,6 |
|
Protection Class |
IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB35 /IM2001 |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Overload Times |
According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes. |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Rated Power
|
Motor Type |
2 pole /3000 rpm |
4 pole /1500 rpm |
6pole /1000 rpm |
|||
|
kW |
HP |
kW |
HP |
kW |
HP |
|
|
YE2A-71M1 |
0.37 |
4.9 |
0.25 |
0.33 |
|
|
|
YE2A-80M1 |
0.75 |
1 |
|
|
|
|
|
YE2A-80M2 |
1.1 |
1.5 |
0.75 |
1 |
|
|
|
YE2A-90S |
1.5 |
2 |
1.1 |
1.5 |
0.75 |
1 |
|
YE2A-90L |
2.2 |
3 |
1.5 |
2 |
1.1 |
1.5 |
|
YE2A-100L |
3.0 |
4 |
2.2 |
3 |
1.5 |
2 |
|
|
|
3 |
4 |
|
|
|
|
YE2A-112M |
4.0 |
5.5 |
4 |
5.5 |
2.2 |
3 |
|
YE2A-132S |
5.5 |
7.5 |
5.5 |
7.5 |
3 |
4 |
|
7.5 |
10 |
|
|
|
|
|
|
YE2A-132M |
|
|
7.5 |
10 |
4 |
5.5 |
|
|
|
|
|
5.5 |
7.5 |
|
Mounting Type :IMB35 /IM2001: with feet and with flange on the DE side.
IM B35 Mounting and overall dimensions(mm)
|
Frame Size |
Pole |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
S |
T |
AB |
AC |
HD |
L |
||
|
63 |
2,4 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
7 |
115 |
95 |
140 |
4-￠10 |
3 |
135 |
130 |
175 |
225 |
|
71 |
2,4,6 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
130 |
110 |
160 |
4-￠10 |
3.5 |
140 |
145 |
195 |
250 |
|
80 |
2,4,6,8 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
165 |
130 |
200 |
4-￠12 |
3.5 |
158 |
175 |
214 |
295 |
|
90S |
2,4,6,8 |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
4-￠12 |
3.5 |
185 |
195 |
250 |
315 |
|
90L |
2,4,6,8 |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
4-￠12 |
3.5 |
185 |
195 |
250 |
340 |
|
100L |
2,4,6,8 |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
215 |
180 |
250 |
4-￠15 |
4 |
205 |
215 |
260 |
385 |
|
112M |
2,4,6,8 |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
215 |
180 |
250 |
4-￠15 |
4 |
226 |
240 |
300 |
400 |
|
132S |
2,4,6,8 |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
265 |
230 |
300 |
4-￠15 |
4 |
266 |
275 |
340 |
470 |
|
132M |
2,4,6,8 |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
265 |
230 |
300 |
4-￠15 |
4 |
266 |
275 |
340 |
510 |
Description:
YE2A series high-efficiency three phase asynchronous motor is a development based on the Y2A series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as Y2A series. But its average efficiency is 2.55%higher than Y2A series motor.
According to IEC standard and Chinese energy-efficiency standard profoundly, this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.
Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
Applications:
They can be widely used for driving various common machines and equipments such as compressors, fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum, chemical,pharmaceutical and mining industries.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
1. Focus on the manufacture of Low Voltage Motors;
2. Efficient customer services
3. Customized motors.
4. Competitive and reasonable pricing and delivery term;
5. Perfect quality assurance system
6. Credible after-sale service and warranty commitments
