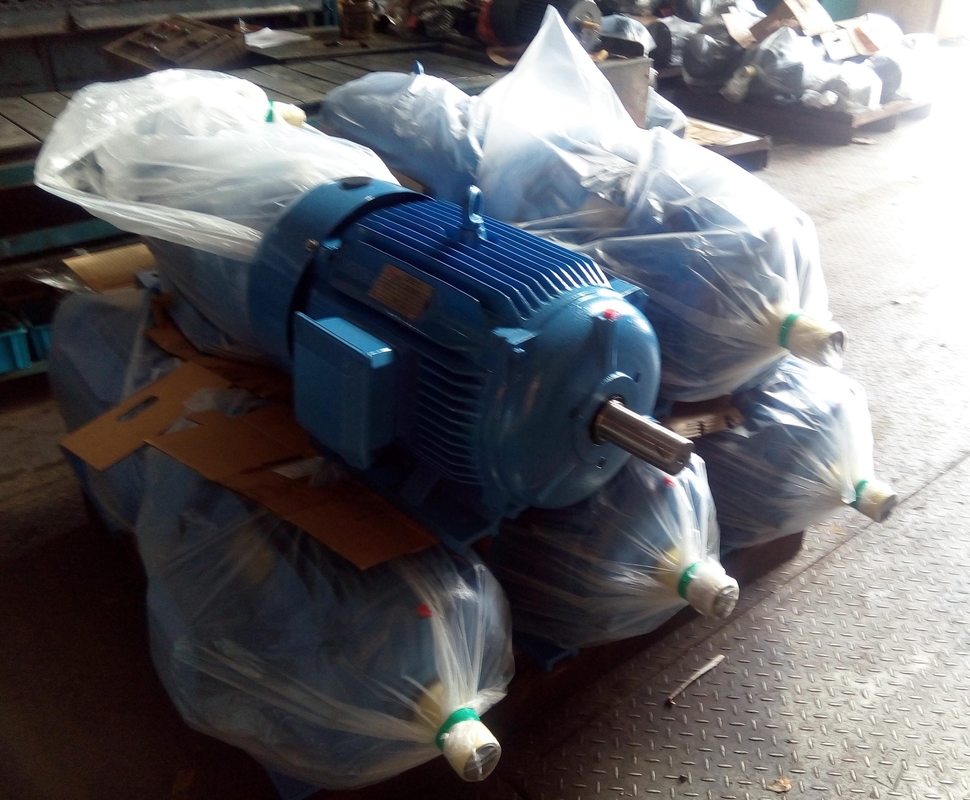

High Efficiency Water Cooled Electric Motor 37KW 45KW For Textile Industry
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | high power electric motor,miniature electric motors |
||
|---|---|---|---|
High Efficiency Water Cooled Electric Motor 37KW 45KW For Textile Industry
Ambient | |
Temperature range: | -15~40℃ |
Altitude: | less than 1000m above sea level |
Ambient condition: | no causticity gas, no heavy mental pollution, no flame, no salt crystallization |
Supply power: | |
Voltage variable | ±5% |
frequency variable | ±2% Combine voltage and frequency variable : ±5% |
Standard Feature: | |
Standard | IEC |
Efficiency Level | IE1 |
Phase | Three-phase |
Frame Size | H225 cast iron frame |
Protect Feature | Totally Enclosed |
Output Range | 37KW, 45KW |
Voltage | 380V |
Frequency | 50HZ ( 5~50Hz Constant Torque, 50~100Hz constant power) |
Poles | 4 |
Protection Class | IP54 |
Insulation | F/B |
Mounting | IMB3 or on your request |
Cooling | Water |
Duty | S1 |
Connection | △ |
Thermometry | Optional |
Certification | CCC, CE,ISO9001 |
Special motors can be designed according to customers' requirements | |
Technical Specification (380V/50HZ)
Motor Type | Rated Power | Current | Rated Speed | Constant Torque | Constant power | Torque |
KW | A | r/min | Hz | Hz | N.M | |
FSLP225S-4 | 37 | 69 | 1480 | 5-50 | 50-100 | 235.5 |
FSLP225M-4 | 45 | 83.5 | 1480 | 5-50 | 50-100 | 286.4 |
Mounting and Overall Dimensions(mm)
Frame Size |
| Dimensions (mm) | |||||||
A | D | E | F | H | K | AB | HD | L | |
FSLP225S | 356 | 286 | 140 | 18 | 225 | 4-￠19 | 435 | 555 | 720 |
FSLP225M | 356 | 311 | 140 | 18 | 225 | 4-￠19 | 435 | 555 | 745 |
Description:
- Using water cooling principle,FSLP series motors which have been installed (G1/2 ") cooling water pipe can control the temperature rise ,reduce the loss and noise very well, so the motors can have higher efficiency.
- The temperature of the motor surface is close to ambient temperature which can reduces dependence on the air conditioning in summer and also reduce production costs.
- Thanks to its oil drain device for injection at DE and NDE side, the bearings can be well maintained.
- The motor can be very good to prevent the cotton fiber blocking phenomenon and can continuous running.
Applications:
FSL P-H225 series textile motors are specially designed according to the actual working conditions of the textile industry. With the F class insulation, IP54 protection class, FSLP series motors are made of steel frame with cooling jacket and cast iron cover which ensure the sturdy structure, aesthetic appearance.
Competitive Advantage:
Relying on continuous innovation ,HD textile motors become one of the best in the textile motor industry with their perfect performance , reliable quality , high efficiency and energy reservation.HD will continuously uses the knowledge and experience in motor design and manufacturing, and implement comprehensive quality control according to ISO9001 2008, and serve customers with high quality products and good service.
1. Focus on the manufacture of textile motors;
2. Efficient customer services
3. Customized motors.
4. Competitive and reasonable pricing and delivery term;
5. Perfect quality assurance system
6. Credible after-sale service and warranty commitments
