Fan Cooled 50HZ 5.5KW Industrial DC Motor Variable Speed 380V , Two Pole

Large Image : Fan Cooled 50HZ 5.5KW Industrial DC Motor Variable Speed 380V , Two Pole Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Z4 H112

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	30 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	5,000pcs per month

Contact Now

Detailed Product Description

High Light:

low voltage dc motor

three phase dc motor

Fan Cooled 50HZ 5.5KW Industrial DC Motor Variable Speed 380V , Two Pole

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Standard Feature:
Standard		IEC34-1 / DIN57530
Phase		Three-phase
Frame Size		H112
Protect Feature		Totally Enclosed
Output Range		1.9~5.5KW
Voltage		160V,440V or on request
Rated speed		3000,2000,4000 r/min
Frequency		50HZ
Protection Class		IP21S
Insulation		F/B
Mounting		IMB3 /IMB35 or on your request
Cooling		IC06,IC17,IC37
Duty		S1
Thermometry		Optional
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Requirement for cooling air volume , air pressure and fan motor power

Frame Size	Air Volume	Static Pressure	Motor output
Frame Size	m³/h	Pa	KW
Z4-112	220	300	0.06

The fan motors are all three phase ,two pole ,380V

Technical Specification :

The data below is include excitation loss, excluding blower loss

Motor Type	Rated Power	Rated Speed			Magnetic speed	Arm. Curr.	Excitation Power	armature circuit resistance	Armature circuit inductance	Field Inductance	External inductance	Efficiency	Moment of inertia	Weight
	Rated Power	Rated Speed			Magnetic speed	Arm. Curr.	Excitation Power	armature circuit resistance	Armature circuit inductance	Field Inductance	External inductance	Efficiency	Moment of inertia
	P_N	160V	400V	440V	N_F	In	P_F	R	L_A	L_F	L_R	η	GD²
	KW	r/min			r/min	A	W	Ω(20℃)	mH	H	mH	%	Kgm2	kg
Z4-112/ 2-1	3	1540			3000	24	320	0.785	7.1	14	20	69.1	0.072	100
	2.2	975			2000	19.6		1.498	14.1	13	20	62.1
	5.5		2630		4000	16.4		1.933	17.9	17		79.9
	5.5			2940	4000	14.7		1.933	17.9			81.1
	2.8		1340		3000	9.1		6	59			71.2
	3			1500	3000	8.6		6	59			72.8
	1.9		855		2000	6.9		11.67	110	13		61.1
	2.2			965	2000	7.1		11.67	110	13		63.5
Z4-112/ 2-2	4	1450			3000	31.3	350	0.567	6.2	14	12	72.6	0.088	107
	3	1070			2000	24.8		0.934	10.3	14	10	66.8
	7		2660		4000	20.4		1.305	14	19		82.4
	7.5			2980	4000	19.7		1.305	14			83.5
	3.7		1320		3000	11.7		4.24	48.5			74.1
	4			1500	3000	11.2		4.24	48.5			76
	2.6		895		2000	9		7.62	83	14		65.1
	3			1010	2000	9.1		7.62	83	14		67.3
Z4-112/ 4-1	5.5	1520			3000	42.5	500	0.38	3.85	6.8	6.5	73	0.128	106
	4	990			2000	33.7		0.741	7.7	6.7	4.5	64.9
	10		2680		3500	29		0.89	9	6.8		82.7
	11			2950	3500	28.8		0.89	9	6.8		83.3
	5		1340		1800	15.7		3.01	30.5	6.8		74.3
	5.5			1480	1800	15.4		3.01	30.5	6.8		75.7
	3.7		855		1100	13		5.78	60	6.7		65.2
	4			980	1100	12.2		5.78	60	6.7		68.7
Z4-112/ 4-2	5.5	1090			2000	43.5	570	0.411	5.1	7.8	6	69.5	0.156	114
	13		2740		3600	37		0.574	6.4	5.8		84.4
	15			3035	3600	38.6		0.574	6.4	5.8		85.4
	6.7		1330		1800	20.6		2.12	24.1	7.8		76.8
	7.5			1480	1800	20.6		2.12	24.1	7.8		78.4
	5		955		1200	16.1		3.46	40.5	5.8		71.1
	5.5			1025	1200	15.7		3.46	40.5	5.8		71.9

Mounting and Overall Dimensions(mm)

Mounting Type :IMB3/IM1001

Frame Size	Mounting Dimensions (mm)													Overall Dimensions (mm)
	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	AB	AC	AD	HD	h1	L	L1
Z4-112/2-1	190	337	70	28	60	8	31	28	60	8	31	112	12	221	255	202	452	10	554	612
Z4-112/2-2		367																	574	642
Z4-112/2-3		407																	614	682
Z4-112/2-4		477																	684	752
Z4-112/4-1	190	347	70	32	80	10	35	32	80	10	35	112	12	221	255	202	452	10	573	642
Z4-112/4-2		387																	613	682
Z4-112/4-3		437																	663	732
Z4-112/4-4		497																	723	792

Mounting Type: IMB35 /IM2001

Fan Cooled 50HZ 5.5KW Industrial DC Motor Variable Speed 380V , Two Pole 2

Frame Size	Mounting Dimensions (mm)																	Overall Dimensions (mm)
	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	M	N	S	T	P	AB	AC	AD	HD	L	L1
Z4-112/2-1	190	337	70	28	60	8	31	28	60	8	31	112	12	215	180	4-￠15	4	250	221	255	202	452	554	612
Z4-112/2-2		367																					574	642
Z4-112/2-3		407																					614	682
Z4-112/2-4		477																					684	752
Z4-112/4-1	190	347	70	32	80	10	35	32	80	10	35	112	12						221	255	202	452	573	642
Z4-112/4-2		387																					613	682
Z4-112/4-3		437																					663	732
Z4-112/4-4		497																					723	792

Description:

Mounting and Overall type of Z4 DC motor are comply with IEC72 Standard, except the axial distance between the mounting holes( Dimension “B”)

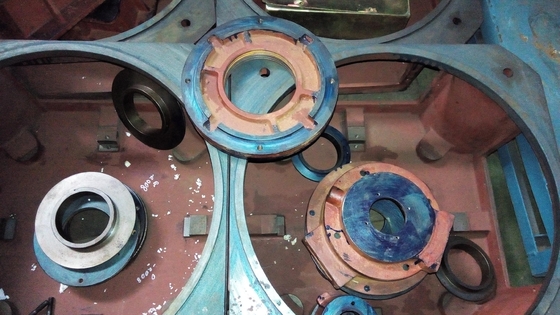

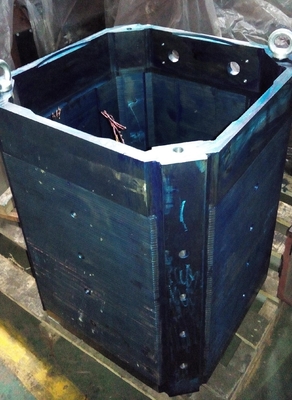

This series motors have polygon structure, so they have high space efficient. Their stator yoke which is lamination and use rectifier power supply can withstand pulsating current and rapid change of current .

Due to its accurate location of magnetic pole, it is convenient to change the direction

Thanks to its small size, good performance, light weight , high efficiency and reliability , our Z4 DC motors can compete with international advanced level.

Supply power:

1, The power supply of Armature and Field circuits can be from Static rectifier power supply or from DC generator.

2,Under constant torque, decrease armature voltage to adjust speed;Under constant power, decrease excitation voltage to adjust speed.

3, Separated excitation is the basic excitation type. Nominal excitation voltage is180V, other voltages are also acceptable on your request.

Application details

1. These motors are widely used for wires, cables, light industry, spinning, paper-making, chemical industry, printing and dyeing, metallurgy, rubber, wire-drawing, extrusion machinery,

medical equipment, food processing, printing and packaging and other industries.

2. It can achieve step less speed regulation by constant torque by being equipped with the speed regulator.

3.Besides,our company can customize products when the customer has requirement on batch speed reducer

or high temperature and other specific environments.

Z4 DC motors are our latest product. They are widely used as drive source for various machinery, such as Metallurgical industry, Metal cutting machine, Paper ,Printing, Textile, Dyeing, Cement, Plastic extrusion machinery and so on.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
