High Light: | electric boat motor,powerful electric motors |
---|

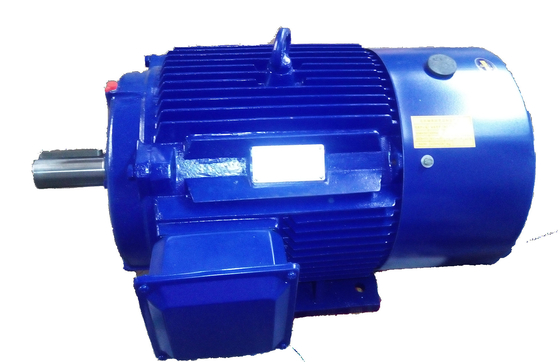

40HP 2 Pole High Torque Electric Motors 30KW 90KW For Marine And Hydraulic Machine
IEC Standard Y-H 2 pole marine motors MB35 / IMB35 IMV1 (H 80~355 Cast Iron Frame)
Ambient |
||
Temperature range: |
-20~45℃ |
|
Ambient humidity: |
95%less than relative humidity |
|
Altitude: |
0 m |
|
Ambient condition: |
Exist: Dew,Salt mist,Oil mist,Fungus,Shock,Vibration,Sway |
|
Inclination |
22°30 |
|
Standard Feature: |
||
Standard |
IEC /GB |
|
Phase |
Three-phase |
|
Frame Size |
H80~355 cast iron frame |
|
Protect Feature |
Totally Enclosed,Fan cooled |
|
Output Range |
0.55~315KW |
|
Voltage and Frequency |
380V/50HZ or440V/60HZ |
|
Pole |
2 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35/IMB35/IMV1 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "△" type for 4kW and upwards |
|
Starting |
Direct on full voltage. Allowed reduced-voltage starting under no-load or light load. |
|
Painting |
TH |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
Meaning of type code
Technical Specification (2 pole/3000r/min 380V/50HZ)
Motor Type |
Rated Power |
Current(A) |
Rated Speed(rpm) |
Power Factor |
Efficiency(η%) |
Locked Torque |
Maximum Torque |
Locked aparent power |
Weight |
|||||
Rated Torque |
Rated Torque |
Rated Power |
||||||||||||
KW |
HP |
380V /50Hz |
440V/ 60Hz |
380V/ 50Hz |
440V/60Hz |
380V/50Hz |
440V/60Hz |
380V/50Hz |
440V/60Hz |
Tst/Tn |
Tm/Tn |
|
kg |
|
Y-80L1-2-H |
0.75 |
1 |
1.9 |
1.6 |
2820 |
3460 |
0.84 |
0.82 |
75.0 |
76.5 |
1.9 |
2.1 |
13.0 |
16 |
Y-80L2-2-H |
1.1 |
1.5 |
2.6 |
2.2 |
0.85 |
0.85 |
76.5 |
77.5 |
17 |
|||||
Y-90S-2-H |
1.5 |
2 |
3.4 |
3.0 |
2840 |
3470 |
0.82 |
0.80 |
79.5 |
80.0 |
22 |
|||
Y-90L-2-H |
2.2 |
3 |
4.7 |
4.1 |
0.83 |
0.81 |
82.5 |
83.5 |
25 |
|||||
Y-100L-2-H |
3.0 |
4 |
6.4 |
5.5 |
2880 |
3490 |
0.87 |
0.86 |
84.0 |
84.0 |
33 |
|||
Y-112M-2-H |
4.0 |
5.5 |
8.2 |
7.1 |
2890 |
3500 |
0.86 |
0.84 |
86.5 |
87.0 |
45 |
|||
Y-132S1-2-H |
5.5 |
7.5 |
11.1 |
9.6 |
2900 |
3520 |
0.88 |
0.87 |
86.5 |
86.0 |
1.5 |
2.0 |
64 |
|
Y-132S2-2-H |
7.5 |
10 |
15.0 |
12.7 |
0.89 |
0.88 |
87.5 |
87.0 |
12.0 |
70 |
||||
Y-160M1-2-H |
11 |
15 |
21.8 |
19.1 |
2930 |
3540 |
0.87 |
0.87 |
89.0 |
88.5 |
1.8 |
117 |
||
Y-160M2-2-H |
15 |
20 |
29.4 |
25.1 |
0.88 |
0.88 |
89.0 |
90.0 |
125 |
|||||
Y-160L-2-H |
18.5 |
25 |
35.5 |
30.3 |
0.88 |
0.89 |
89.5 |
90.0 |
147 |
|||||
Y-180M-2-H |
22 |
30 |
42.2 |
36.9 |
2940 |
3550 |
0.88 |
0.88 |
89.5 |
89.0 |
180 |
|||
Y-200L1-2-H |
30 |
40 |
56.9 |
49.7 |
2955 |
3560 |
0.88 |
0.88 |
89.5 |
89.0 |
1.7 |
1.9 |
11.0 |
240 |
Y-200L2-2-H |
37 |
50 |
60.6 |
60.6 |
2960 |
0.88 |
0.88 |
92.0 |
91.5 |
255 |
||||
Y-225M-2-H |
45 |
60 |
84.0 |
73 |
2960 |
3572 |
0.88 |
0.86 |
90.5 |
90.0 |
309 |
|||
Y-250M-2-H |
55 |
75 |
102.7 |
90 |
2970 |
3570 |
0.88 |
0.87 |
92.0 |
90.5 |
403 |
|||
Y-280S-2-H |
75 |
100 |
140.1 |
123 |
2970 |
3580 |
0.89 |
0.89 |
92.0 |
91.5 |
544 |
|||
Y-280M-2-H |
90 |
125 |
167.0 |
146 |
0.88 |
0.89 |
93.0 |
92.5 |
620 |
|||||
Y-315S-2-H |
110 |
150 |
203.0 |
180 |
0.89 |
0.88 |
92.5 |
91.0 |
1.4 |
1.8 |
10.0 |
980 |
||
Y-315M-2-H |
132 |
180 |
242.0 |
215 |
93.0 |
91.5 |
1080 |
|||||||
Y-315L1-2-H |
160 |
215 |
292.0 |
259 |
93.5 |
92.0 |
1160 |
|||||||
Y-315L2-2-H |
200 |
270 |
365.0 |
324 |
1260 |
|||||||||
Y-355M1-2-H |
220 |
300 |
403.0 |
358 |
93.2 |
91.7 |
1.1 |
1.9 |
1500 |
|||||
Y-355M2-2-H |
250 |
350 |
451.0 |
401 |
0.90 |
0.89 |
93.5 |
92.0 |
1600 |
|||||
Y-355L1-2-H |
280 |
375 |
504.0 |
448 |
93.7 |
92.2 |
1700 |
|||||||
Y-355L2-2-H |
315 |
422 |
566.0 |
502 |
94.0 |
92.5 |
1800 |
Description:
1, Y-H series marine motors are totally enclosed ,self-cooling three phase asynchronous motors with the advantages such as high efficiency and large starting torque.
2, Y-H series motors are designed in accordance with national standard GB755-87 and other relevant provisions.The motors are also in conformity with the relevant requirements of the following standards and Classification rules
IEC34
IEC72
IEC92
IEC68
LR
GL
NK
3, The winding and the metal part surface of the motor are specially impregnated and well processed ,which ensure its good moisture, mildew resistance and salt fog.
Applications:
They can be widely used for driving various machines, such as pumps, ventilators, separator, hydraulic machinery and other auxiliary equipment used.
