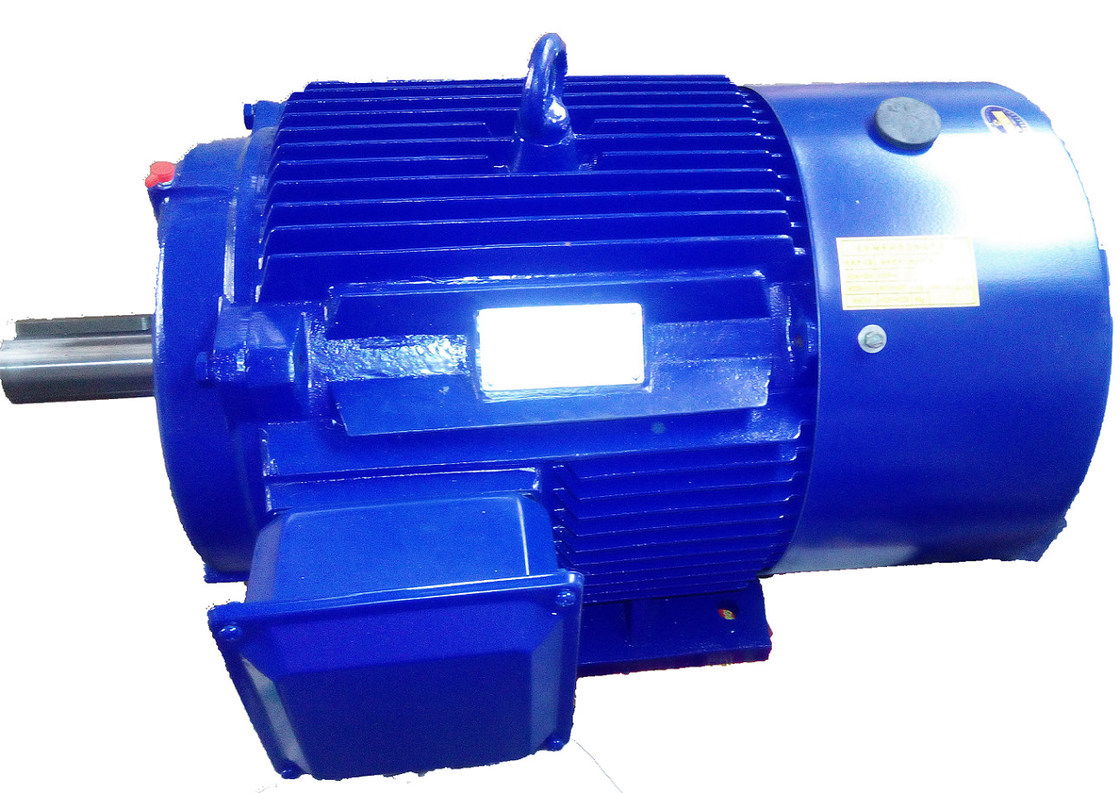

Totally Enclosed 4 Pole 3 Phase Asynchronous Electric Motor 0.55KW - 315KW

Large Image : Totally Enclosed 4 Pole 3 Phase Asynchronous Electric Motor 0.55KW - 315KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Y-H 4pole

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	1,000pcs per month

Contact Now

Detailed Product Description

High Light:

electric sailboat motor

powerful electric motors

Totally Enclosed 4 Pole 3 Phase Asynchronous Electric Motor 0.55KW - 315KW

Description:

1, Y-H series marine motors are totally enclosed ,self-cooling three phase asynchronous motors with the advantages such as high efficiency and large starting torque.

2, Y-H series motors are designed in accordance with national standard GB755-87 and other relevant provisions.The motors are also in conformity with the relevant requirements of the following standards and Classification rules

IEC34

IEC72

IEC92

IEC68

3, The winding and the metal part surface of the motor are specially impregnated and well processed ,which ensure its good moisture, mildew resistance and salt fog.

Applications:

They can be widely used for driving various machines, such as pumps, ventilators, separator, hydraulic machinery and other auxiliary equipment used.

Ambient
Temperature range:	-20~45℃
Ambient humidity:	95%less than relative humidity
Altitude:	0 m
Ambient condition:	Exist: Dew,Salt mist,Oil mist,Fungus,Shock,Vibration,Sway
Inclination	22°30
Standard Feature:
Standard		IEC /GB
Phase		Three-phase
Frame Size		H80~355 cast iron frame
Protect Feature		Totally Enclosed,Fan cooled
Output Range		0.55~315KW
Voltage and Frequency		380V/50HZ or440V/60HZ
Pole		4
Insulation		F/B
Mounting		IMB3 /IMB35/IMB35/IMV1
Duty		S1
Connection		” Y" type for 3kW and downwards, "△" type for 4kW and upwards
Starting		Direct on full voltage. Allowed reduced-voltage starting under no-load or light load.
Painting		TH
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Technical Specification

Motor Type	Rated Power		Current(A)		Rated Speed(rpm)		Power Factor		Efficiency(η%)		Locked Torque	Maximum Torque	Locked aparent power	Weight
	Rated Power		Current(A)		Rated Speed(rpm)		Power Factor		Efficiency(η%)		Rated Torque	Rated Torque	Rated Power	Weight
	KW	HP	380V/ 50Hz	440V/60Hz	380V/ 50Hz	440V/ 60Hz	380V/ 50Hz	440V/60Hz	380V/50Hz	440V/60Hz	Tst/Tn	Tm/Tn		kg
Y-80L1-4-H	0.55	0.75	1.6	1.33	1390	1710	0.75	0.71	72.5	74	2	2.1	13	17
Y-80L2-4-H	0.75	1	2.1	1.75	1390		0.75	0.72	74	76	1.9			18
Y-90S-4-H	1.1	1.5	2.7	2.45	1400		0.78	0.75	78	79				22
Y-90L-4-H	1.5	2	3.7	3.2	1400		0.8	0.77	79	80.5				27
Y-100L1-4-H	2.2	3	5	4.4	1420	1730	0.81	0.78	81.5	82.5				34
Y-100L2-4-H	3.0	4	6.8	5.9	1420	1730	0.81	0.78	83	85				38
Y-112M-4-H	4.0	5.5	8.8	7.7	1440	1750	0.81	0.79	84.5	86				43
Y-132S-4-H	5.5	7.5	11.6	9.9			0.83	0.82	86	88	1.8	2		68
Y-132M-4-H	7.5	10	15.4	13.2			0.85	0.84	87	88.5			12	81
Y-160M-4-H	11	15	22.6	19.5	1460	1760	0.83	0.83	88.5	89				123
Y-160L-4-H	15	20	30.3	26	1460	1760	0.84	0.83	89	91				144
Y-180M-4-H	18.5	25	35.9	31	1470	1770	0.86	0.86	91	91.5				182
Y-180L-4-H	22	30	42.5	36.7	1470	1770	0.87	0.86	91	90			11	190
Y-200L-4-H	30	40	56.9	49.8	1476	1779	0.87	0.86	91.5	92	1.7	1.9		270
Y-225S-4-H	37	50	70.4	60.7	1480	1783	0.87	0.87	92	92.5				284
Y-225M-4-H	45	60	84.2	72.5		1783	0.88	0.87	92.5	92.5				320
Y-250M-4-H	55	75	103	89		1780	0.88	0.88	92.5	92.5				427
Y-280S-4-H	75	100	140	119		1790	0.88	0.88	93	92.5				562
Y-280M-4-H	90	125	164	142			0.89	0.89	93.5	93.5	1.6			667
Y-315S-4-H	110	150	201	177			0.89	0.88	93.5	92.5	1.4	1.8	10	1000
Y-315M-4-H	132	180	240	212					94	93				1101
Y-315L1-4-H	160	215	289	255					94.5	93.5				1160
Y-315L2-4-H	200	270	361	319					94.5	93.5				1260
Y-355M1-4-H	220	300	409	361			0.87	0.86	94	93	1.2	1.9		1500
Y-355M2-4-H	250	350	464	410					94	93				1600
Y-355L1-4-H	280	375	519	458					94.2	93.2				1700
Y-355L2-4-H	315	422	582	514					94.5	93.5				1800

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low voltage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
