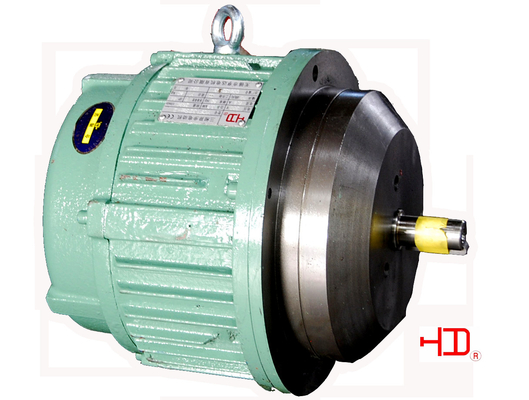

Low Rpm Three Phase Asynchronous Electric Motor For Textile Fan 0.75 KW / 2.2KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | low rpm electric motor,3 phase induction motors |
||
|---|---|---|---|
Low Rpm Three Phase Asynchronous Electric Motor For Textile Fan 0.75 KW / 2.2KW
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE4 |
|
Phase |
Three-phase |
|
Frame Size |
H225 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.75~2.2KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Pole |
2 |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Technical Specification (2 pole ,380V/50HZ)
|
Motor Type |
Rated Power |
Current |
Rated Speed |
Power Factor |
Efficiency |
Locked Current |
Locked Torque |
Maximum Torque |
|
Rated Current |
Rated Torque |
Rated Torque |
||||||
|
KW |
A |
r/min |
cosΦ |
η% |
Ist/IN |
Tst/TN |
TM/TN |
|
|
YCF 90S01-2 |
0.75 |
1.7 |
2840 |
0.85 |
79 |
7 |
2 |
2.3 |
|
YCF 90S02-2 |
1.1 |
2.5 |
2840 |
0.87 |
82 |
7 |
2 |
2.3 |
|
YCF 90S1-2 |
1.5 |
3.4 |
2840 |
0.88 |
82 |
7 |
2 |
2.3 |
|
YCF 90S2-2 |
1.8 |
3.9 |
2840 |
0.88 |
82 |
7 |
2 |
2.3 |
|
YCF 90L-2 |
2.2 |
4.6 |
2840 |
0.88 |
82 |
7 |
2 |
2.3 |
Mounting and Overall Dimensions(mm)
|
Frame Size |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
|||||||||||
|
C |
D |
E |
F |
G |
M |
M1 |
N |
P |
R |
S |
LA |
L |
|
|
90S |
30 |
24 |
38 |
8 |
20 |
160 |
M8*25L |
130 |
176 |
2.5 |
4-M10 |
18 |
208 |
|
90L |
30 |
24 |
38 |
8 |
20 |
160 |
M8*25L |
130 |
1776 |
2.5 |
4-M10 |
18 |
231 |
Description:
YCF90 series textile motors are specially designed for driving fan of textile machines. This series motors have low temperature rise , small size ,low noise and strong dustproof ability. YCF90 series motors are suitable for speed drawing frame, fan of spinning-frames under the working conditions of plentiful dust and short fibers, high temperature and humidity or other similar conditions.
Applications:
YCF90 series motors are suitable for speed drawing frame, fan of spinning-frames under the working conditions of plentiful dust and short fibers, high temperature and humidity or other similar conditions.
Competitive Advantage:
Relying on continuous innovation ,HD textile motors become one of the best in the textile motor industry with their perfect performance , reliable quality , high efficiency and energy reservation.HD will continuously uses the knowledge and experience in motor design and manufacturing, and implement comprehensive quality control according to ISO9001 2008, and serve customers with high quality products and good service.
1. Focus on the manufacture of textile motors;
2. Efficient customer services
3. Customized motors.
4. Competitive and reasonable pricing and delivery term;
5. Perfect quality assurance system
6. Credible after-sale service and warranty commitments
