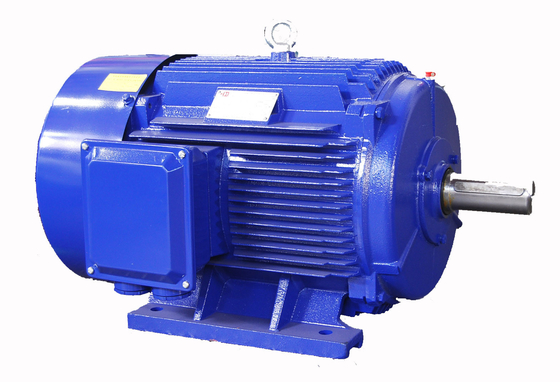

0.75 KW 1HP 2HP Six Pole Marine Electric Motor 380V 50HZ For Pump / Ventilator

Large Image : 0.75 KW 1HP 2HP Six Pole Marine Electric Motor 380V 50HZ For Pump / Ventilator Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Y-H 6pole

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	1,000pcs per month

Contact Now

Detailed Product Description

High Light:

electric sailboat motor

powerful electric motors

0.75 KW 1HP 2HP Six Pole Marine Electric Motor 380V 50HZ For Pump / Ventilator

Ambient
Temperature range:	-20~45℃
Ambient humidity:	95%less than relative humidity
Altitude:	0 m
Ambient condition:	Exist: Dew,Salt mist,Oil mist,Fungus,Shock,Vibration,Sway
Inclination	22°30
Standard Feature:
Standard		IEC /GB
Phase		Three-phase
Frame Size		H90~355 cast iron frame
Protect Feature		Totally Enclosed,Fan cooled
Output Range		0.75~250KW
Voltage and Frequency		380V/50HZ or440V/60HZ
Pole		6
Insulation		F/B
Mounting		IMB3 /IMB35/IMB35/IMV1
Duty		S1
Connection		” Y" type for 3kW and downwards, "△" type for 4kW and upwards
Starting		Direct on full voltage. Allowed reduced-voltage starting under no-load or light load.
Painting		TH
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Technical Specification

Motor Type	Rated Power		Current(A)		Rated Speed(rpm)		Power Factor		Efficiency(η%)		Locked Torque	Maximum Torque	Locked aparent power	Weight
	Rated Power		Current(A)		Rated Speed(rpm)		Power Factor		Efficiency(η%)		Rated Torque	Rated Torque	Rated Power	Weight
	KW	HP	380V/ 50Hz	440V/ 60Hz	380V/ 50Hz	440V/ 60Hz	380V/ 50Hz	440V/ 60Hz	380V/ 50Hz	440V/60Hz	Tst/Tn	Tm/Tn		kg
Y-90S-6-H	0.75	1	2.3	1.91	910	1130	0.7	0.67	72.5	74	1.8	2	13	23
Y-90L-6-H	1.1	1.5	3.2	2.81	910	1130	0.71	0.68	72.5	74				25
Y-100L-6-H	1.5	2	4	3.47	940	1150	0.73	0.7	77.5	79.5				33
Y-112M-6-H	2.2	3	5.6	4.89	940	1150	0.72	0.68	79.5	82				45
Y-132S-6-H	3.0	4	7.2	6.37	960	1170	0.76	0.74	83.5	83.5				63
Y-132M1-6-H	4.0	5.5	9.4	8.23			0.76	0.74	84	86				73
Y-132M2-6-H	5.5	7.5	12.6	10.8			0.78	0.77	86	87.5				84
Y-160M-6-H	7.5	10	17	14.8	970		0.76	0.75	87.5	88.5	1.7	1.9	12	119
Y-160L-6-H	11	15	24.6	21.2			0.76	0.75	88	88.5				147
Y-180L-6-H	15	20	31.4	27.5		1180	0.78	0.76	88.5	88.5				195
Y-200L1-6-H	18.5	25	38.1	33.1	980	1183	0.83	0.82	90	90.5				220
Y-200L2-6-H	22	30	44.7	38.7	980	1182	0.83	0.82	90	90.5				250
Y-225M-6-H	30	40	58	50	985	1187	0.82	0.81	91	91.5	1.5	1.8	11	292
Y-250M-6-H	37	50	72	60.99	980	1180	0.87	0.87	91	91				408
Y-280S-6-H	45	60	85.4	73.77		1190	0.86	0.85	92	92				536
Y-280M-6-H	55	75	104.9	88.6			0.88	0.87	92	92.5				595
Y-315S-6-H	75	100	141.14	123.98			0.87	0.86	92.8	92.3	1.2	1.7	11	990
Y-315M-6-H	90	125	168.64	148.13					93.2	92.7			11	1080
Y-315L1-6-H	110	150	205.46	180.47					93.5	93			10	1150
Y-315L2-6-H	132	180	245.76	215.86					93.8	93.3				1210
Y-355M1-6-H	160	215	302	265.3			0.86	0.85	93.6	93.1	1.1	1.8		1500
Y-355M2-6-H	185	250	348.44	306.1					93.8	93.3				1600
Y-355M3-6-H	200	270	376.69	330.91					93.8	93.3				1700
Y-355L1-6-H	220	300	413.48	363.23					94	93.5				1800
Y-355L2-6-H	250	350	468.86	411.88					94.2	93.7				1900

Description:

1, Y-H series marine motors are totally enclosed ,self-cooling three phase asynchronous motors with the advantages such as high efficiency and large starting torque.

2, Y-H series motors are designed in accordance with national standard GB755-87 and other relevant provisions.The motors are also in conformity with the relevant requirements of the following standards and Classification rules

IEC34

IEC72

IEC92

IEC68

3, The winding and the metal part surface of the motor are specially impregnated and well processed ,which ensure its good moisture, mildew resistance and salt fog.

Applications:

They can be widely used for driving various machines, such as pumps, ventilators, separator, hydraulic machinery and other auxiliary equipment used.
