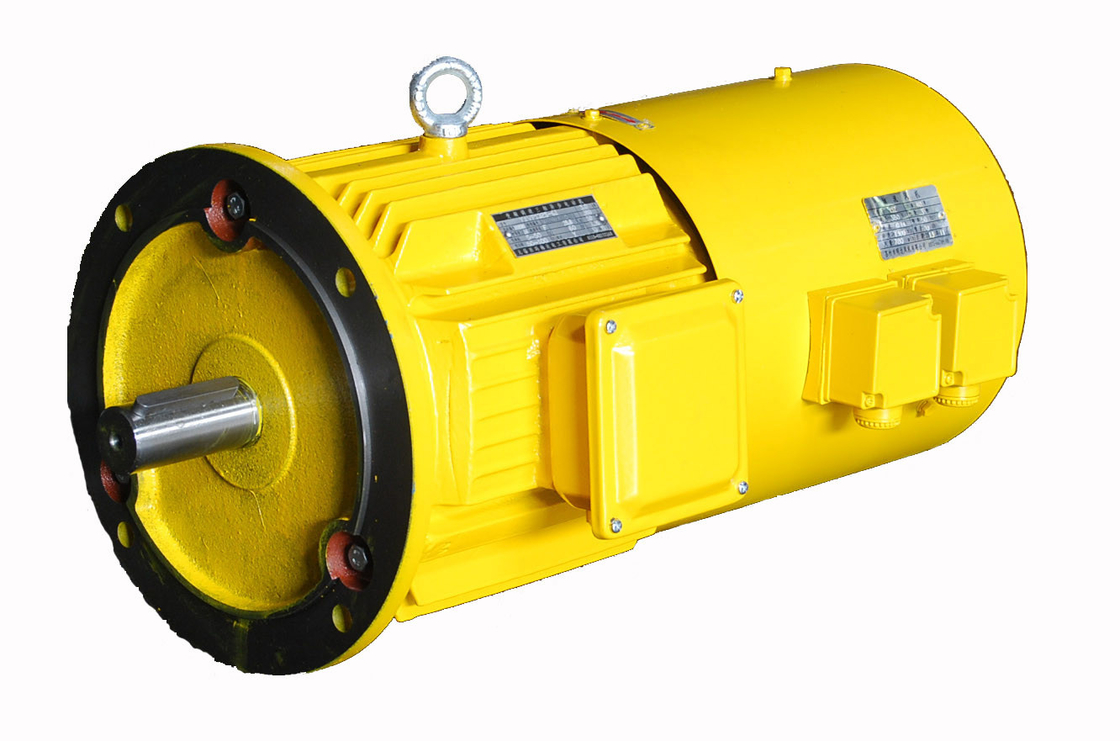

Waterproof Asynchronous Variable Speed Electric Motor 30KW For Water Pump / Textile
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | adjustable speed electric motor,variable speed induction motor |
||
|---|---|---|---|
Waterproof Asynchronous Variable Speed Electric Motor 30KW For Water Pump / Textile
IEC / DIN Series
YD Double Speed three phase asynchronous motors in Industry (H 80~200 Cast Iron Frame)
Specifications
Motor Electric
1. a newly developed series of products by our company
2. operating feature of metallurgical and crane motor
Description:
YD Double Speed motors are totally enclosed ,squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC standards, with international generality, is the ideal product to export and replace the imported products.
YD series motors can apply to various transmission mechanisms which need control speed step by step.
The mounting and overall dimensions are the same as Y series standard motors .
Prompt Quotation:
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE1 |
|
Phase |
Three-phase |
|
Frame Size |
H80~200 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.45/0.55KW~~26/30KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35 or on your request |
|
Cooling |
IC411 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Meaning of type code
Technical Specification
|
Frame Size |
Synchronous Speed(r/min) |
||||
|
1500/3000 |
1000/1500 |
750/1500 |
750/1000 |
500/1000 |
|
|
80-1 |
0.45/0.55 |
|
|
|
|
|
80-2 |
0.55/0.75 |
|
|
|
|
|
90S |
0.85/1.1 |
0.65/0.85 |
|
0.35/0.45 |
|
|
90L |
1.3/1.8 |
0.85/1.1 |
0.45/0.75 |
0.45/0.65 |
|
|
100L1 |
2/2.4 |
1.3/1.8 |
|
|
|
|
100L2 |
2.4/3 |
1.5/2.2 |
0.85/1.5 |
0.75/1.1 |
|
|
112M |
3.3/4 |
2.2/2.8 |
1.5/2.4 |
1.3/1.8 |
|
|
132S |
4.5/5.5 |
3/4 |
2.2/3.3 |
1.8/2.4 |
|
|
132M1 |
|
|
|
|
|
|
132M2 |
6.5/8 |
4/5.5 |
3/4.5 |
2.6/3.7 |
|
|
160M |
9/11 |
6.5/8 |
5/7.5 |
4.5/6 |
2.5/6 |
|
160L |
11/14 |
9/11 |
7/11 |
6/8 |
3.7/7 |
|
180M |
15/18.5 |
11/14 |
|
7.5/10 |
|
|
180L |
18.5/22 |
13/16 |
11/17 |
9/12 |
5.5/10 |
|
200L1 |
26/30 |
18.5/22 |
14/22 |
12/17 |
7.5/13 |
|
200L2 |
17/26 |
15/20 |
7/15 |
||
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
