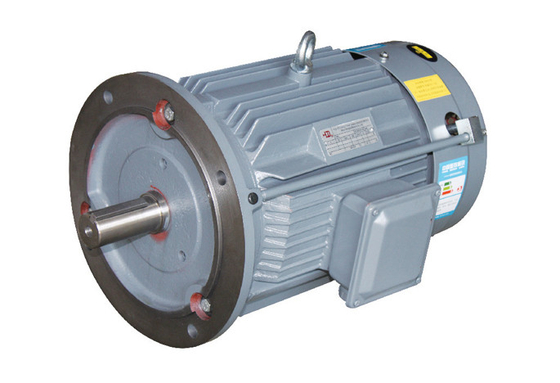

High Performance 3 Phase Induction Motor, Low Voltage Electric Motors Frame 80-180

Large Image : High Performance 3 Phase Induction Motor, Low Voltage Electric Motors Frame 80-180 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE2GW80-180 series high temperature resistant three phase asynchronous motor

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	L/C, T/T
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

High Light:

energy efficient electric motors

high speed electric motors

High Performance 3 Phase Induction Motor,Low Voltage Electric Motors

With the development of textile printing and dyeing machinery, higher requirements are asked on motor working conditions and performance. The working condition for circulating fan of dyeing machine is even worse.

YE2GW series motor is our second generation of high temperature resistant motor, designed on the basis in our company 20 years experience and according to user request.

The motor has aesthetic appearance and oil drain device for injection at DE and NDE side. Inner cover also has oil thrower inside to avoid grease into the lumen when oiling.

When the Ambient temperature is less than 55 degrees, the temperature of shaft , flange and other parts increase to 250 degrees, the motor can be still working well for connecting directly to the circulating fan.

Using high temperature resistant bearing which should be filled in 7017-1 high temperature grease after 1500 hours running.

H class insulation makes the motor with higher heat stability and longer life, and ensures the continuous production of printing and dyeing machinery industry.

Mounting Type:IMB5 /IM3001: without feet , but with flange on the DE side.

High Performance 3 Phase Induction Motor, Low Voltage Electric Motors Frame 80-180 0

Frame Size	Flange No.	Pole	Mounting Dimensions (mm)										Overall Dimensions (mm)
Frame Size	Flange No.	Pole	D	E	F	G	M	N	P	S	T	R	AC	AD	LD	LA	L
80M	FF165	2,4,6	19	40	6	15.5	165	130	200	4-￠12	3.5	0	167	165	74	12	300
90S	FF165	2,4,6	24	50	8	20	165	130	200	4-￠12	3.5	0	190	175	76	12	350
90L	FF165	2,4,6	24	50	8	20	165	130	200	4-￠12	3.5	0	190	175	76	12	385
100L	FF215	2,4,6	28	60	8	24	215	180	250	4-￠15	4	0	215	200	83	13	435
112M	FF215	2,4,6	28	60	8	24	215	180	250	4-￠15	4	0	240	220	87	14	470
132S	FF265	2,4,6	38	80	10	33	265	230	300	4-￠15	4	0	275	240	102	14	510
132M	FF265	2,4,6	38	80	10	33	265	230	300	4-￠15	4	0	275	240	102	14	560
160M	FF300	2,4,6	42	110	12	37	300	250	350	4-￠19	5	0	320	285	149	15	670
160L	FF300	2,4,6	42	110	12	37	300	250	350	4-￠19	5	0	320	285	149	15	700
180M	FF300	2,4,6	48	110	14	42.5	300	250	350	4-￠19	5	0	380	310	161	15	740
180L	FF300	2,4,6	48	110	14	42.5	300	250	350	4-￠19	5	0	380	310	161	15	780

Notes:R means the distance from flange mounting interface to auxiliary shoulder

Tolerance for D dimension:j6 for ￠19-28;k6 for￠38-48;m6 for ￠55-95

Technical Specification

Motor Type	Rated Power	Current	Rated Speed	Rated Torque	Power Factor	Efficiency	Insulation class	Locked Current	Locked Torque	Maximum Torque
	Rated Power	Current	Rated Speed	Rated Torque	Power Factor	Efficiency	Insulation class	Rated Current	Rated Torque	Rated Torque
	KW	380V InA	r/min	N.m	cosΦ	η%	Ins.	Ist/IN	Tst/TN	TM/TN
YE2GW80M1-2	0.75	1.8	2845	2.4	0.82	77.4	H	6.8	2.3	2.3
YE2GW80M2-2	1.1	2.5	2840	3.5	0.83	79.6	H	7.1	2.3	2.3
YE2GW90S-2	1.5	3.3	2840	4.8	0.84	81.3	H	7.3	2.3	2.3
YE2GW90L-2	2.2	4.7	2840	7.0	0.85	83.2	H	7.6	2.3	2.3
YE2GW100L-2	3.0	6.2	2860	9.5	0.87	84.6	H	7.8	2.2	2.3
YE2GW112M-2	4.0	8.0	2890	12.7	0.88	85.8	H	8.1	2.2	2.3
YE2GW132S1-2	5.5	10.9	2910	17.5	0.88	87.0	H	8.2	2.2	2.3
YE2GW132S2-2	7.5	14.5	2905	23.9	0.89	88.1	H	7.8	2.2	2.3
YE2GW160M1-2	11	21.0	2935	35.0	0.89	89.4	H	7.9	2.2	2.3
YE2GW160M2-2	15	28.4	2935	47.7	0.89	90.3	H	7.9	2.2	2.3
YE2GW160L-2	18.5	34.7	2935	58.9	0.89	90.9	H	8.0	2.2	2.3
YE2GW180M-2	22	41.1	2940	70.0	0.89	91.3	H	8.1	2.2	2.3
YE2GW80M2-4	0.75	1.9	1380	4.8	0.76	79.6	H	6.4	2.3	2.3
YE2GW90S-4	1.1	2.7	1390	7.0	0.77	81.4	H	6.6	2.3	2.3
YE2GW90L-4	1.5	3.5	1390	9.5	0.78	82.8	H	6.7	2.3	2.3
YE2GW100L1-4	2.2	5.0	1410	14.0	0.80	84.3	H	7.3	2.3	2.3
YE2GW100L2-4	3.0	6.6	1410	19.1	0.81	85.5	H	7.5	2.3	2.3
YE2GW112M-4	4.0	8.7	1440	25.5	0.81	86.6	H	7.5	2.3	2.3
YE2GW132S-4	5.5	11.6	1445	35.0	0.82	87.7	H	7.5	2.0	2.3
YE2GW132M-4	7.5	15.5	1445	47.7	0.83	88.7	H	7.3	2.0	2.3
YE2GW160M-4	11	22.4	1460	70.0	0.83	89.8	H	7.4	2.0	2.3
YE2GW160L-4	15	29.9	1460	95.5	0.84	90.6	H	7.5	2.0	2.3
YE2GW180M-4	18.5	36.3	1470	117.8	0.85	91.2	H	7.6	2.0	2.3
YE2GW180L-4	22	42.9	1470	140.1	0.85	91.6	H	7.7	2.1	2.3
YE2GW90S-6	0.75	2.1	915	7.2	0.71	75.9	H	5.8	2.0	2.1
YE2GW90L-6	1.1	3.0	915	10.5	0.72	78.1	H	5.9	2.0	2.1
YE2GW100L-6	1.5	4.0	920	14.3	0.72	79.8	H	5.9	2.0	2.1
YE2GW112M-6	2.2	5.7	940	21.0	0.72	81.8	H	6.2	2.0	2.1
YE2GW132S-6	3.0	7.6	960	28.6	0.72	83.3	H	6.4	2.0	2.1
YE2GW132M1-6	4.0	9.7	960	38.2	0.74	84.6	H	6.6	2.0	2.1
YE2GW132M2-6	5.5	13.0	960	52.5	0.75	86.0	H	6.8	2.0	2.1
YE2GW160M-6	7.5	16.8	970	71.6	0.78	87.2	H	6.8	2.0	2.1
YE2GW160L-6	11	23.9	970	105.0	0.79	88.7	H	6.9	2.0	2.1
YE2GW180L-6	15	31.0	970	143.2	0.82	89.7	H	7.3	2.0	2.1
