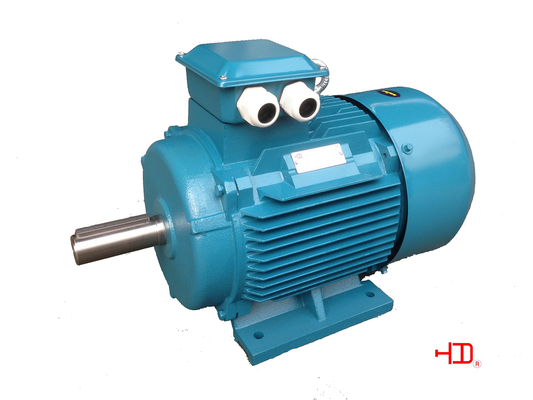

Explosion Proof 3kw Electric Low Voltage Induction Motor For Fan And Water Pump
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | high torque electric motors,high rpm electric motor |
||
|---|---|---|---|
Explosion Proof 3kw Electric Low Voltage Induction Motor For Fan And Water Pump
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC |
|
Efficiency Level |
IE3 |
|
Phase |
Three-phase |
|
Frame Size |
H80~100cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.75~375KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Poles |
2,4,6 |
|
Protection Class |
IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35/IM5 or on your request |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Rated Power
| Motor Type | 2 pole /3000 rpm | 4 pole /1500 rpm | 6pole /1000 rpm | |||
| kW | HP | kW | HP | kW | HP | |
| YE3-80M1 | 0.75 | 1 | ||||
| YE3-80M2 | 1.1 | 1.5 | 0.75 | 1 | ||
| YE3-90S | 1.5 | 2 | 1.1 | 1.5 | 0.75 | 1 |
| YE3-90L | 2.2 | 3 | 1.5 | 2 | 1.1 | 1.5 |
| YE3-100L | 3.0 | 4 | 2.2 | 3 | 1.5 | 2 |
| 3 | 4 | |||||
Bearings
| Frame | DE side | NDE side | ||
| 2 pole | 4,6pole | 2 pole | 4,6pole | |
| 80 | 6204-2Z-C3 | 6204-2Z-C3 | 6204-2Z-C3 | 6204-2Z-C3 |
| 90 | 6205-2Z-C3 | 6205-2Z-C3 | 6205-2Z-C3 | 6205-2Z-C3 |
| 100 | 6206-2Z-C3 | 6206-2Z-C3 | 6206-2Z-C3 | 6206-2Z-C3 |
Description:
YE3 frame 80-100 super-high efficiency three phase asynchronous motor is energy saving motor .The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 4% higher than YP2 series motor.
According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.
Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
The following as options or customer’s request:
Protection class IP56
Space heater
Heat protector
Vibration detector
Special mounting dimension and shaft dimension
Low vibration and low noise
Bearing thermometer PT100(frame size H180 and above)
Winding thermometer PT100
Special painting
Humid-tropical “TH”
Others
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
