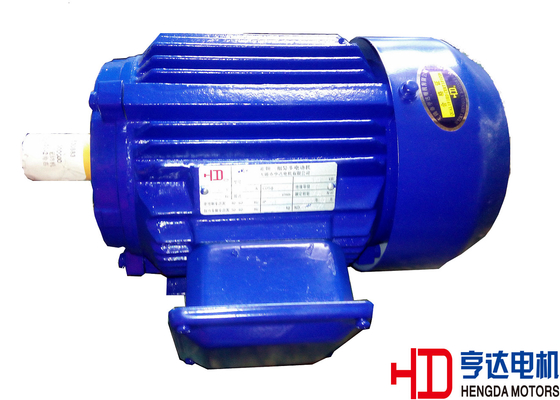

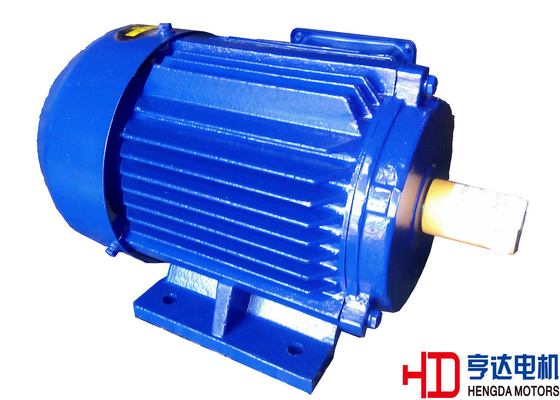

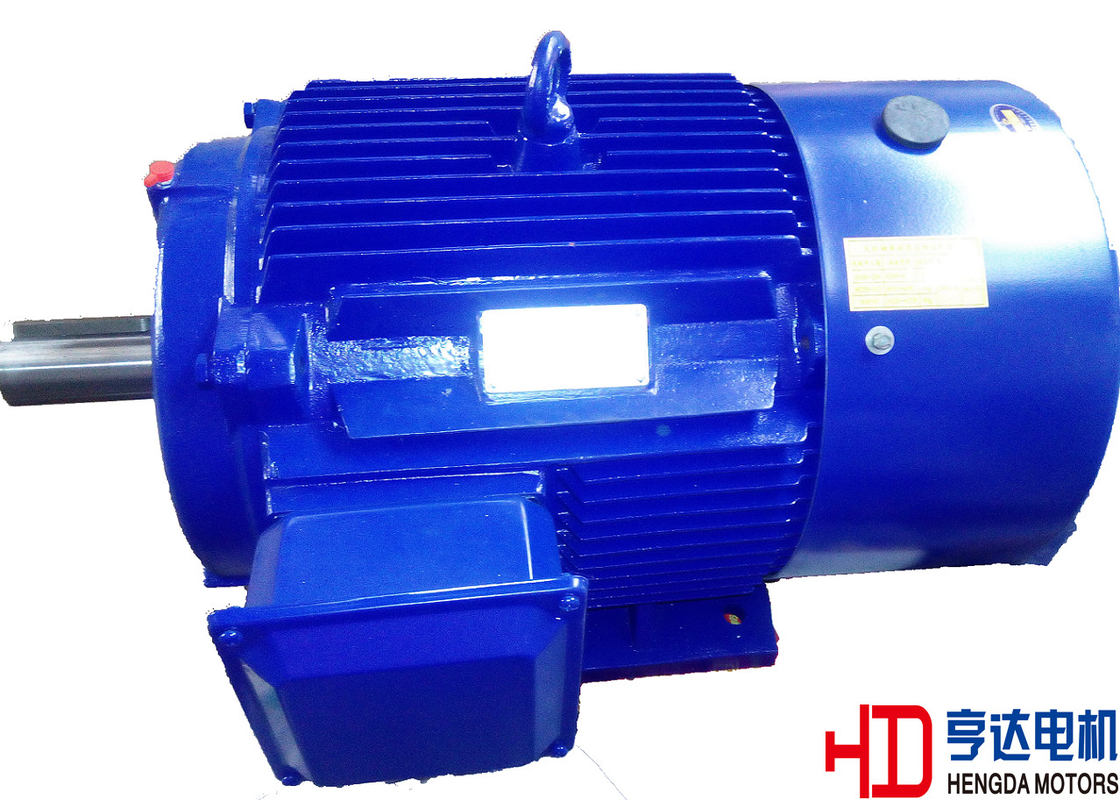

Waterproof 2 Pole Three Phase Asynchronous Motor IP54 IP55 With CE / ISO9001

Large Image : Waterproof 2 Pole Three Phase Asynchronous Motor IP54 IP55 With CE / ISO9001 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YP2-2pole

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

IE1

Frame Size:

H80~400 Cast Iron Frame

Output Range:

0.75~375KW

Pole:

High Light:

asynchronous induction motor

3 phase synchronous motor

Waterproof 2 Pole Three Phase Asynchronous Motor IP54 IP55 With CE / ISO9001

Ambient
Temperature range:	-20~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%

Standard Feature:
Standard	IEC /DIN
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	40-60HZ (50-60HZ constant power)
Protection Class	IP54/IP55
Insulation	F/B
Mounting	IMB3 /IMB35/IMV5 or on your request
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Technical Specification (2 pole/3000r/min 380V/50HZ)

Motor Type	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Locked Current	Locked Torque	Maximum Torque	Weight
	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Rated Current	Rated Torque	Rated Torque	Weight
	kW	HP	380V InA	400V IoA	r/min	N.m	cosΦ	η%	Ist/IN	Tst/TN	TM/TN	kg
YP2-80M1-2	0.75	1	1.8	1.7	2845	2.4	0.83	75.0	6.1	2.2	2.3	15
YP2-80M2-2	1.1	1.5	2.6	2.5	2840	3.5	0.84	76.2	7.0	2.2	2.3	16

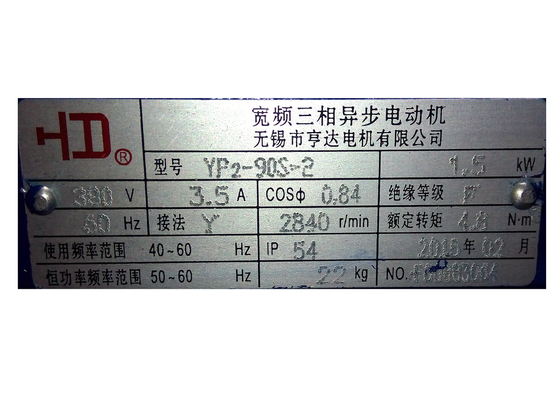

YP2-90S-2	1.5	2	3.5	3.3	2840	4.8	0.84	78.5	7.0	2.2	2.3	22
YP2-90L-2	2.2	3	4.9	4.6	2840	7.0	0.85	81.0	7.0	2.2	2.3	25
YP2-100L-2	3.0	4	6.3	6.0	2830	9.5	0.87	82.6	7.5	2.2	2.3	33
YP2-112M-2	4.0	5.5	8.2	7.8	2890	12.7	0.88	84.2	7.5	2.2	2.3	40
YP2-132S1-2	5.5	7.5	11.1	10.5	2910	17.5	0.88	85.7	7.5	2.2	2.3	59
YP2-132S2-2	7.5	10	14.9	14.1	2905	23.9	0.88	87.0	7.5	2.2	2.3	62
YP2-160M1-2	11	15	21.2	20.2	2935	35.0	0.89	88.4	7.5	2.2	2.3	107
YP2-160M2-2	15	20	28.6	27.2	2935	47.7	0.89	89.4	7.5	2.2	2.3	117
YP2-160L-2	18.5	25	34.7	33.0	2935	58.9	0.90	90.0	7.5	2.2	2.3	134
YP2-180M-2	22	30	41.0	39.0	2940	70.0	0.90	90.5	7.5	2.0	2.3	169
YP2-200L1-2	30	40	55.4	52.6	2945	95.5	0.90	91.4	7.5	2.0	2.3	220
YP2-200L2-2	37	50	67.9	64.5	2945	117.8	0.90	92.0	7.5	2.0	2.3	239
YP2-225M-2	45	60	82	78	2950	143.2	0.90	92.5	7.5	2.0	2.3	297
YP2-250M-2	55	75	100	95	2965	175.1	0.90	93.0	7.5	2.0	2.3	380
YP2-280S-2	75	100	135	129	2965	238.7	0.90	93.6	7.5	2.0	2.3	510
YP2-280M-2	90	125	160	152	2965	286.5	0.91	93.9	7.5	2.0	2.3	540
YP2-315S-2	110	150	195	186	2975	350.1	0.91	94.0	7.1	1.8	2.2	920
YP2-315M-2	132	180	233	222	2975	420.2	0.91	94.5	7.1	1.8	2.2	970
YP2-315L1-2	160	215	279	265	2975	509.3	0.92	94.6	7.1	1.8	2.2	1080
YP2-315L2-2	200	270	348	331	2975	636.6	0.92	94.8	7.1	1.8	2.2	1170
YP2-355M-2	250	340	434	412	2970	795.8	0.92	95.2	7.1	1.6	2.2	1690
YP2-355L-2	315	420	545	518	2970	1002.6	0.92	95.4	7.1	1.6	2.2	1860

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
Prelubricated	H180~280	2	20000 h
Regreasing	H315~355	2	30000 h

Bearings

Frame	DE side	NDE side
80	6204-2RZ-C3	6204-2RZ-C3
90	6205-2RZ-C3	6205-2RZ-C3
100	6206-2RZ-C3	6206-2RZ-C3
112	6306-2RZ-C3	6306-2RZ-C3
132	6308-2RZ-C3	6308-2RZ-C3
160	6309-2RZ-C3	6309-2RZ-C3
180	6311-C3	6311-C3
200	6312-C3	6312-C3
225	6313-C3	6313-C3
250	6314-C3	6314-C3
280	6314-C3	6314-C3
315	6317-C3	6317-C3
355	6319-C3	6319-C3

Description:

YP2-2 pole series motor is totally enclosed, fan cooled, squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.

YP2 series motor is characterized by high efficiency, energy saving, low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system.Comparing with Y series, Y2PF improves protection level (IP54 or IP55), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.

The following as options or customer’s request:

Protection class IP56

Space heater

Heat protector

Vibration detector

Special mounting dimension and shaft dimension

Low vibration and low noise

Bearing thermometer PT100(frame size H180 and above)

Winding thermometer PT100

Special painting

Humid-tropical “TH”

Others

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
