Industrial 10 Pole 380v 3 Phase Asynchronous Induction Motor 90KW With Fan Cooled
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Efficiency Level: | IE1 | Frame Size: | H315~355 Cast Iron Frame |
|---|---|---|---|
| Output Range: | 45~160KW | Pole: | 10 |
| High Light: | three phase asynchronous electric motor,asynchronous induction motor |
||

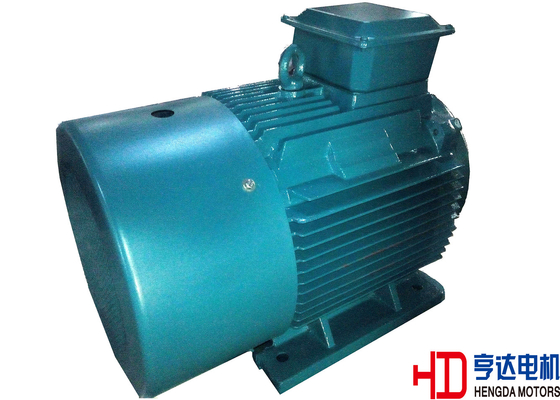

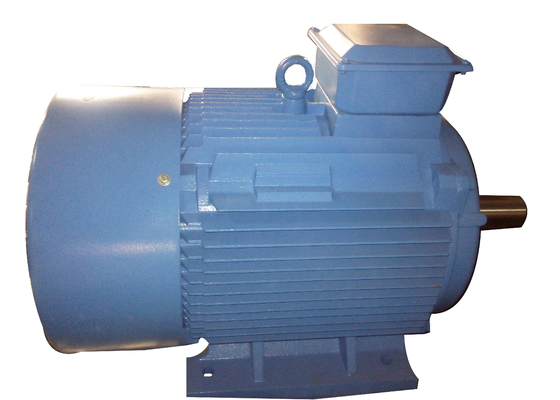

Industrial 10 Pole 380v 3 Phase Asynchronous Induction Motor 90KW With Fan Cooled
Description:
YP2-10 pole series motor is totally enclosed, fan cooled, squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.
YP2-10 pole series motor is characterized by high efficiency, energy saving, low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system. Comparing with Y series, YP2 improves protection level (IP54 or IP55), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Phase |
Three-phase |
|
Protect Feature |
Totally Enclosed |
|
Voltage |
380V |
|
Frequency |
40-60HZ (50-60HZ constant power) |
|
Protection Class |
IP54/IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35/IMV1 or on your request |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Meaning of type code
Technical Specification (10 pole/600r/min 380V/50HZ )
|
Motor Type |
Rated Power |
Current |
Rated Speed |
Rated Torque |
Power Factor |
Efficiency |
Locked Current |
Locked Torque |
Maximum Torque |
Weight |
||
|
Rated Current |
Rated Torque |
Rated Torque |
||||||||||
|
kW |
HP |
380V InA |
400V IoA |
r/min |
N.m |
cosΦ |
η% |
Ist/IN |
Tst/TN |
TM/TN |
kg |
|
|
YP2-315S-10 |
45 |
60 |
100 |
95 |
590 |
716.2 |
0.75 |
91.5 |
6.2 |
1.5 |
2.0 |
890 |
|
YP2-315M-10 |
55 |
75 |
120 |
114 |
590 |
875.3 |
0.76 |
92.0 |
6.2 |
1.5 |
2.0 |
965 |
|
YP2-315L1-10 |
75 |
100 |
160 |
152 |
590 |
1193.6 |
0.77 |
92.5 |
6.2 |
1.5 |
2.0 |
1040 |
|
YP2-315L2-10 |
90 |
125 |
189 |
179 |
590 |
1432.4 |
0.78 |
93.0 |
6.2 |
1.5 |
2.0 |
1130 |
|
YP2-355M1-10 |
110 |
150 |
230 |
218 |
590 |
1750.7 |
0.78 |
93.2 |
6.0 |
1.3 |
2.0 |
1620 |
|
YP2-355M2-10 |
132 |
180 |
275 |
261 |
590 |
2100.8 |
0.78 |
93.5 |
6.0 |
1.3 |
2.0 |
1730 |
|
YP2-355L-10 |
160 |
215 |
333 |
317 |
590 |
2546.4 |
0.78 |
93.5 |
6.0 |
1.3 |
2.0 |
1970 |
Bearings
|
Frame |
DE side |
NDE side |
|
315 |
6319-C3 |
6319-C3 |
|
355 |
6322-C3 |
6322-C3 |
The following as options or customer’s request:
Protection class IP56
Space heater
Heat protector
Vibration detector
Special mounting dimension and shaft dimension
Low vibration and low noise
Bearing thermometer PT100(frame size H180 and above)
Winding thermometer PT100
Special painting
Humid-tropical “TH”
Others
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
1. Competitive and reasonable pricing and delivery term;
2. Perfect quality assurance system
3. Credible after-sale service and warranty commitments
