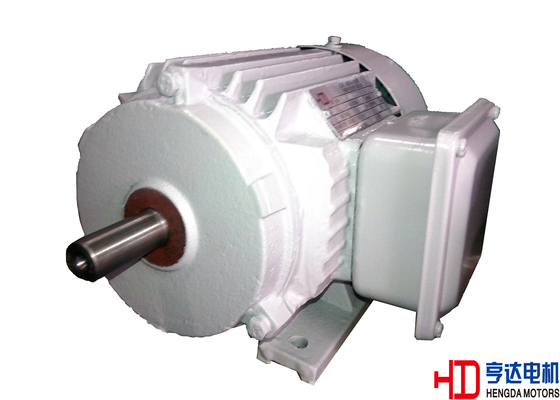

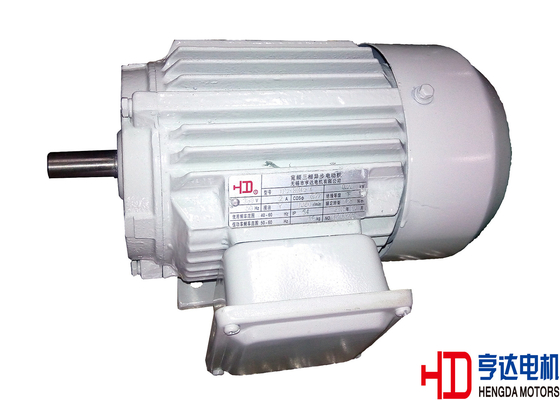

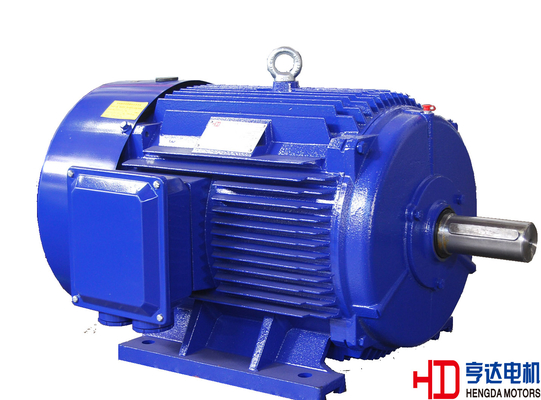

Low Voltage Squirrel-Cage Three Phase Asynchronous Motor , Mounting Type B3

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Low Voltage Squirrel-Cage Three Phase Asynchronous Motor , Mounting Type B3 Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YP2-B3
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
Efficiency Level: IE1 Frame Size: 80~400 Cast Iron Frame
Output Range: 0.18~375KW Poles: 2, 4 , 6 ,8,10
High Light:

asynchronous induction motor

,

3 phase synchronous motor

Low Voltage Squirrel-Cage Three Phase Asynchronous Motor , Mounting Type B3





Ambient

Temperature range:

-20~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC /DIN

Phase

Three-phase

Protect Feature

Totally Enclosed

Voltage

380V

Frequency

40-60HZ (50-60HZ constant power)

Protection Class

IP54/IP55

Insulation

F/B

Mounting

IMB3/IM1001

Cooling

IC411

Duty

S1

Connection

” Y" type for 3kW and downwards, "D" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements



Diagram

Low Voltage Squirrel-Cage Three Phase Asynchronous Motor , Mounting Type B3 0



Greasing Period

Greasing Type

Frame Size

Poles

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

2

20000 h

4,6

40000 h

H180~280

2

20000 h

4,6

40000 h

Regreasing

H315~355

2

30000 h

4,6

60000 h



Rated Power

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

8pole /750 rpm

10pole /600 rpm

kW

HP

kW

HP

kW

HP

kW

HP

kW

HP

YP2-80M1

0.75

1

0.55

0.75

0.37

0.5

0.18

0.24





YP2-80M2

1.1

1.5

0.75

1

0.55

0.75

0.25

0.33





YP2-90S

1.5

2

1.1

1.5

0.75

1

0.37

0.5





YP2-90L

2.2

3

1.5

2

1.1

1.5

0.55

0.75





YP2-100L

3.0

4

2.2

3

1.5

2

0.75

1









3

4





1.1

1.5





YP2-112M

4.0

5.5

4

5.5

2.2

3

1.5

2





YP2-132S1

5.5

7.5

5.5

7.5

3

4

2.2

3





YP2-132S2

7.5

10

7.5

10













YP2-132M









4

5.5

3

4













5.5

7.5









YP2-160M

11

15

11

15

7.5

10

4

5.5





15

20









5.5

7.5





YP2-160L

18.5

25

15

20

11

15

7.5

10





YP2-180M

22

30

18.5

25





11

15





YP2-180L





22

30

15

20









YP2-200L

30

40

30

40

18.5

25

15

20





37

50





22

30









YP2-225S





37

50





18.5

25





YP2-225M

45

60

45

60

30

40

22

30





YP2-250M

55

75

55

75

37

50

30

40





YP2-280S

75

100

75

100

45

60

37

50





YP2-280M

90

125

90

125

55

75

45

60





YP2-315S

110

150

110

150

75

100

55

75

45

60

YP2-315M

132

180

132

180

90

125

75

100

55

75

YP2-315L1

160

215

160

215

110

150

90

125

75

100

YP2-315L2

200

270

200

270

132

180

110

150

90

125

YP2-355M

250

340

250

340

160

215

132

180

110

150









200

270

160

215

132

180

YP2-355L

315

420

315

420

250

340

200

270

160

215

YP2-355X

355

475

355

475

315

420




375

500

375

500





Mounting Type :IMB3/IM1001: with feet , without flange on the DE side.

IM B3 Mounting and overall dimensions(mm)     H80-H90  Without lifting ring

Low Voltage Squirrel-Cage Three Phase Asynchronous Motor , Mounting Type B3 1

Frame Size

Pole

Mounting Dimensions (mm)

Overall Dimensions (mm)

A

B

C

D

E

F

G

H

K

AA

AB

AC

AD

HD

LD

BB

HA

L

80M

2,4,6,8

125

100

50

19

40

6

15.5

80

10

34

165

167

165

245

74

130

10

300

90S

2,4,6,8

140

100

56

24

50

8

20

90

10

36

180

190

175

265

76

140

12

355

90L

2,4,6,8

140

125

56

24

50

8

20

90

10

36

180

190

175

265

76

165

12

385

100L

2,4,6,8

160

140

63

28

60

8

24

100

12

40

205

215

200

290

83

176

14

435

112M

2,4,6,8

190

140

70

28

60

8

24

112

12

45

230

240

220

325

87

180

15

470

132S

2,4,6,8

216

140

89

38

80

10

33

132

12

55

270

275

240

365

102

186

18

510

132M

2,4,6,8

216

178

89

38

80

10

33

132

12

55

270

275

240

365

102

224

18

560

160M

2,4,6,8

254

210

108

42

110

12

37

160

14.5

65

320

320

285

440

149

260

20

670

160L

2,4,6,8

254

254

108

42

110

12

37

160

14.5

65

320

320

285

440

149

260

20

700

180M

2,4,6,8

279

241

121

48

110

14

42.5

180

14.5

70

355

380

310

470

161

315

22

740

180L

2,4,6,8

279

279

121

48

110

14

42.5

180

14.5

70

355

380

310

470

161

350

22

780

200L

2,4,6,8

318

305

133

55

110

16

49

200

18.5

70

395

410

335

525

186

370

25

780

225S

4.8

356

286

149

60

140

18

53

225

18.5

75

435

470

370

580

189

388

28

820

225M

2

356

311

149

55

110

16

49

225

18.5

75

435

470

370

580

189

395

28

815

4,6,8

356

311

149

60

140

18

53

225

18.5

75

435

470

370

580

189

395

28

845

250M

2

406

349

168

60

140

18

53

250

24

80

490

490

380

635

207

445

30

915

4,6,8

406

349

168

65

140

18

58

250

24

80

490

490

380

635

207

445

30

915

280S

2

457

368

190

65

140

18

58

280

24

85

550

580

410

698

215

485

35

985

4,6,8

457

368

190

75

140

20

67.5

280

24

85

550

580

410

698

215

485

35

985

280M

2

457

419

190

65

140

18

58

280

24

85

550

580

410

698

215

540

35

1035

4,6,8

457

419

190

75

140

20

67.5

280

24

85

550

580

410

698

215

540

35

1035

315S

2

508

406

216

65

140

18

58

315

28

120

630

645

535

885

257

570

45

1200

4,6,8,10

508

406

216

80

170

22

71

315

28

120

630

645

535

885

257

570

45

1230

315M

2

508

457

216

65

140

18

58

315

28

120

630

645

535

885

257

680

45

1310

4,6,8,10

508

457

216

80

170

22

71

315

28

120

630

645

535

885

257

680

45

1340

315L

2

508

508

216

65

140

18

58

315

28

120

630

645

535

885

257

680

45

1310

4,6,8,10

508

508

216

80

170

22

71

315

28

120

630

645

535

885

257

680

45

1340

355M

2

610

560

254

75

140

20

67.5

355

28

120

730

720

650

1065

284

750

52

1510

4,6,8,10

610

560

254

95

170

25

86

355

28

120

730

720

650

1065

284

750

52

1550

355L

2

610

630

254

75

140

20

67.5

355

28

120

730

720

650

1065

284

750

52

1510

4,6,8,10

610

630

254

95

170

25

86

355

28

120

730

720

650

1065

284

750

52

1550

400

2

686

630

280

80

170

22

71

400

35

120

810

860

1090

362

1100

45

1850

4,6

686

710

280

110

210

28

100

400

35

120

810

860

1090

362

1100

45

1925



Terminal Box

Frame Size

Dia.of the thread(mm)

X*Y*Z(mm)

80

1-M24*1.5

95*95*50

90-100

1-M24*1.5

102*102*50

112-132

2-M30*2

108*123*75

160-180

2-M36*2

150*160*105

200-225

2-M48*2

188*208*105

250-280

2-M64*2

216*251*120

315

2-M64*2

300*358*198

355

2-M72*2

300*380*200



Description:

YP2 series motor is totally enclosed, fan cooled, squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.

YP2 series motor is characterized by high efficiency, energy saving, low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system.Comparing with Y series, YP2 improves protection level (IP54 or IP55), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.



The following as options or customer’s request:

  Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others



Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.



Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments

Contact Details
Wuxi HengDa Motors Co., Ltd

Contact Person: Ms. Ariel Liu

Tel: 15261591892

Fax: 86-0510-85616629

Send your inquiry directly to us
