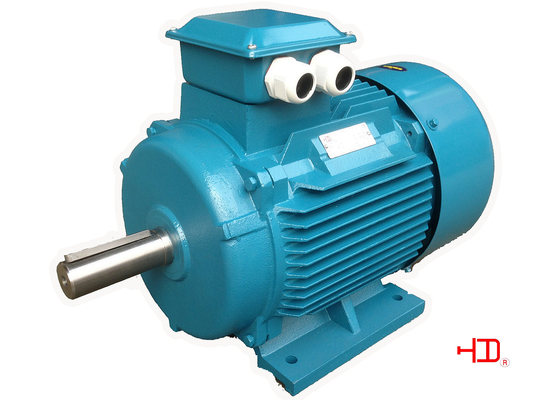

Industrial Low Voltage Electric Motor 200KW / 375KW , Dual Shaft Electric Motor

Large Image : Industrial Low Voltage Electric Motor 200KW / 375KW , Dual Shaft Electric Motor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE3-B3

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Temperature Range::

-15~40℃

Ambient Humidity:

90%less Than Relative Humidity

Altitude:

Less Than 1000m Above Sea Level

Ambient Condition:

No Causticity Gas, No Dust, No Heavy Mental Pollution, No Flame, No Salt Crystallization

High Light:

3 phase synchronous motor

high rpm electric motor

Industrial Low Voltage Electric Motor 200KW / 375KW , Dual Shaft Electric Motor

Description:

YE2 series high-efficiency three phase asynchronous motor is a development based on the YP2 series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC/GB
Efficiency Level	IE3
Phase	Three-phase
Frame Size	H80~355 Cast iron frame
Protect Feature	Totally Enclosed
Output Range	0.75~375KW
Voltage	380V
Frequency	50HZ
Pole	2,4,6
Protection Class	IP55
Insulation	F/B
Mounting	IMB3/IM1001
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
	H80~160	4,6	40000 h
	H180~280	2	20000 h
	H180~280	4,6	40000 h
Regreasing	H315~355	2	30000 h
Regreasing	H315~355	4,6	60000 h

Rated Power

Motor Type	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	kW	HP	kW	HP	kW	HP
YE3-80M1	0.75	1
YE3-80M2	1.1	1.5	0.75	1
YE3-90S	1.5	2	1.1	1.5	0.75	1
YE3-90L	2.2	3	1.5	2	1.1	1.5
YE3-100L	3.0	4	2.2	3	1.5	2
YE3-100L			3	4
YE3-112M	4.0	5.5	4	5.5	2.2	3
YE3-132S	5.5	7.5	5.5	7.5	3	4
YE3-132S	7.5	10
YE3-132M1			7.5	10	4	5.5
YE3-132M2					5.5	7.5
YE3-160M1-2	11	15	11	15	7.5	10
YE3-160M2-2	15	20
YE3-160L	18.5	25	15	20	11	15
YE3-180M	22	30	18.5	25
YE3-180L			22	30	15	20
YE3-200L1	30	40	30	40	18.5	25
YE3-200L2	37	50			22	30
YE3-225S			37	50
YE3-225M	45	60	45	60	30	40
YE3-250M	55	75	55	75	37	50
YE3-280S	75	100	75	100	45	60
YE3-280M	90	125	90	125	55	75
YE3-315S	110	150	110	150	75	100
YE3-315M	132	180	132	180	90	125
YE3-315L1	160	215	160	215	110	150
YE3-315L2	200	270	200	270	132	180
YE3-355M	250	340	250	340	160	215
YE3-355M					200	270
YE3-355L	315	420	315	420	250	340
YE3-355X1	355	475	355	475	315	420
YE3-355X2	375	500	375	500

Mounting Type :IMB3/IM1001: with feet , without flange on the DE side.

Industrial Low Voltage Electric Motor 200KW / 375KW , Dual Shaft Electric Motor 0

IM B3 Mounting and overall dimensions(mm)

Frame Size	Pole	Mounting Dimensions (mm)									Overall Dimensions (mm)
Frame Size	Pole	A	B	C	D	E	F	G	H	K	AA	AB	AC	AD	HD	LD	BB	HA	L
80M	2,4,6	125	100	50	19	40	6	15.5	80	10	34	165	167	165	245	74	130	10	300
90S	2,4,6	140	100	56	24	50	8	20	90	10	36	180	190	175	265	76	140	12	355
90L	2,4,6	140	125	56	24	50	8	20	90	10	36	180	190	175	265	76	165	12	385
100L	2,4,6	160	140	63	28	60	8	24	100	12	40	205	215	200	290	83	176	14	435
112M	2,4,6	190	140	70	28	60	8	24	112	12	45	230	240	220	325	87	180	15	470
132S	2,4,6	216	140	89	38	80	10	33	132	12	55	270	275	240	365	102	186	18	510
132M	2,4,6	216	178	89	38	80	10	33	132	12	55	270	275	240	365	102	224	18	560
160M	2,4,6	254	210	108	42	110	12	37	160	14.5	65	320	320	285	440	149	260	20	670
160L	2,4,6	254	254	108	42	110	12	37	160	14.5	65	320	320	285	440	149	260	20	700
180M	2,4,6	279	241	121	48	110	14	42.5	180	14.5	70	355	380	310	470	161	315	22	740
180L	2,4,6	279	279	121	48	110	14	42.5	180	14.5	70	355	380	310	470	161	350	22	780
200L	2,4,6	318	305	133	55	110	16	49	200	18.5	70	395	410	335	525	186	370	25	780
225S	4.8	356	286	149	60	140	18	53	225	18.5	75	435	470	370	580	189	388	28	820
225M	2	356	311	149	55	110	16	49	225	18.5	75	435	470	370	580	189	395	28	815
225M	4,6	356	311	149	60	140	18	53	225	18.5	75	435	470	370	580	189	395	28	845
250M	2	406	349	168	60	140	18	53	250	24	80	490	490	380	635	207	445	30	915
250M	4,6	406	349	168	65	140	18	58	250	24	80	490	490	380	635	207	445	30	915
280S	2	457	368	190	65	140	18	58	280	24	85	550	580	410	698	215	485	35	985
280S	4,6	457	368	190	75	140	20	67.5	280	24	85	550	580	410	698	215	485	35	985
280M	2	457	419	190	65	140	18	58	280	24	85	550	580	410	698	215	540	35	1035
280M	4,6	457	419	190	75	140	20	67.5	280	24	85	550	580	410	698	215	540	35	1035
315S	2	508	406	216	65	140	18	58	315	28	120	630	645	535	885	257	570	45	1200
315S	4,6	508	406	216	80	170	22	71	315	28	120	630	645	535	885	257	570	45	1230
315M	2	508	457	216	65	140	18	58	315	28	120	630	645	535	885	257	680	45	1310
315M	4,6	508	457	216	80	170	22	71	315	28	120	630	645	535	885	257	680	45	1340
315L	2	508	508	216	65	140	18	58	315	28	120	630	645	535	885	257	680	45	1310
315L	4,6	508	508	216	80	170	22	71	315	28	120	630	645	535	885	257	680	45	1340
355M	2	610	560	254	75	140	20	67.5	355	28	120	730	720	650	1065	284	750	52	1510
355M	4,6	610	560	254	95	170	25	86	355	28	120	730	720	650	1065	284	750	52	1550
355L	2	610	630	254	75	140	20	67.5	355	28	120	730	720	650	1065	284	750	52	1510
355L	4,6	610	630	254	95	170	25	86	355	28	120	730	720	650	1065	284	750	52	1550

Terminal Box

Frame Size	Dia.of the thread(mm)	*XYZ(mm)*
80	1-M24*1.5	959550
90-100	1-M24*1.5	10210250
112-132	2-M30*2	10812375
160-180	2-M36*2	150160105
200-225	2-M48*2	188208105
250-280	2-M64*2	216251120
315	2-M64*2	300358198
355	2-M72*2	300380200

The following as options or customer’s request:

Protection class IP56

Space heater

Heat protector

Vibration detector

Special mounting dimension and shaft dimension

Low vibration and low noise

Bearing thermometer PT100(frame size H180 and above)

Winding thermometer PT100

Special painting

Humid-tropical “TH”

Others

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Competitive and reasonable pricing and delivery term;

2. Perfect quality assurance system

3. Credible after-sale service and warranty commitments
