30HP / 40HP 3 Phase Low Voltage Electric Motor Variable Speed 15KW - 315KW IMV1 /IM3011

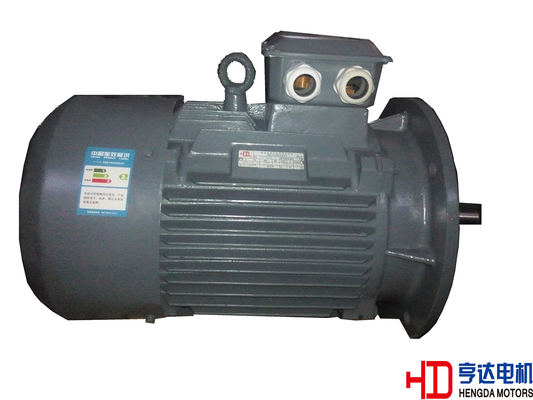

Large Image : 30HP / 40HP 3 Phase Low Voltage Electric Motor Variable Speed 15KW - 315KW IMV1 /IM3011 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE3-V1

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

IE3

Frame Size:

H180~355 Cast Iron Frame

Output Range:

15~315KW

Mounting:

IMV1 /IM3011

High Light:

3 phase synchronous motor

high rpm electric motor

30HP / 40HP 3 Phase Low Voltage Electric Motor Variable Speed 15KW - 315KW

Description:

YE2 series high-efficiency three phase asynchronous motor is a development based on the YP2 series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Pole	2,4,6
Protection Class	IP55
Insulation	F/B
Cooling	IC411
Duty	S1
Connection	” Y" type for 3kW and downwards, "D" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H180~280	2	20000 h
Prelubricated	H180~280	4,6	40000 h
Regreasing	H315~355	2	30000 h
Regreasing	H315~355	4,6	60000 h

Rated Power

Motor Type	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	kW	HP	kW	HP	kW	HP
YE3-180M	22	30	18.5	25
YE3-180L			22	30	15	20
YE3-200L1	30	40	30	40	18.5	25
YE3-200L2	37	50			22	30
YE3-225S			37	50
YE3-225M	45	60	45	60	30	40
YE3-250M	55	75	55	75	37	50
YE3-280S	75	100	75	100	45	60
YE3-280M	90	125	90	125	55	75
YE3-315S	110	150	110	150	75	100
YE3-315M	132	180	132	180	90	125
YE3-315L1	160	215	160	215	110	150
YE3-315L2	200	270	200	270	132	180
YE3-355M	250	340	250	340	160	215
YE3-355M					200	270
YE3-355L	315	420	315	420	250	340

IM V1 Mounting and overall dimensions(mm)

Frame Size	Pole	Mounting Dimensions (mm)										Overall Dimensions (mm)
Frame Size	Pole	D	E	F	G	M	N	P	R	S	T	AC	AD	HF	L
180M	2,4,6	48	110	14	42.5	300	250	350	0	4-￠18.5	5	380	310	500	800
180L	2,4,6	48	110	14	42.5	300	250	350	0	4-￠18.5	5	380	310	500	800
200L	2,4,6	55	110	16	49	350	300	400	0	4-￠18.5	5	410	335	540	845
225S	4	60	140	18	53	400	350	450	0	8-￠18.5	5	470	370	605	905
225M	2	55	110	16	49	400	350	450	0	8-￠18.5	5	470	370	605	910
225M	4,6	60	140	18	53	400	350	450	0	8-￠18.5	5	470	370	605	940
250M	2	60	140	18	53	500	450	550	0	8-￠18.5	5	490	380	630	1035
250M	4,6	65	140	18	58	500	450	550	0	8-￠18.5	5	490	380	630	1035
280S	2	65	140	18	58	500	450	550	0	8-￠18.5	5	580	410	700	1115
280S	4,6	75	140	20	67.5	500	450	550	0	8-￠18.5	5	580	410	700	1115
280M	2	65	140	18	58	500	450	550	0	8-￠18.5	5	580	410	700	1115
280M	4,6	75	140	20	67.5	500	450	550	0	8-￠18.5	5	580	410	700	1115
315S	2	65	140	18	58	600	550	660	0	8-￠24	6	645	535	858	1310
315S	4,6	80	170	22	71	600	550	660	0	8-￠24	6	645	535	858	1340
315M	2	65	140	18	58	600	550	660	0	8-￠24	6	645	535	858	1425
315M	4,6	80	170	22	71	600	550	660	0	8-￠24	6	645	535	858	1450
315L	2	65	140	18	58	600	550	660	0	8-￠24	6	645	535	858	1425
315L	4,6	80	170	22	71	600	550	660	0	8-￠24	6	645	535	858	1450
355M	2	75	140	20	67.5	740	680	800	0	8-￠24	6	720	650	1010	1640
355M	4,6	95	170	25	86	740	680	800	0	8-￠24	6	720	650	1010	1670
355L	2	75	140	20	67.5	740	680	800	0	8-￠24	6	720	650	1010	1640
355L	4,6	95	170	25	86	740	680	800	0	8-￠24	6	720	650	1010	1670

Remark: R=Distance from flange to shaft shoulder.

Terminal Box

Frame Size	Dia.of the thread(mm)	*XYZ(mm)*
180	2-M36*2	150160105
200-225	2-M48*2	188208105
250-280	2-M64*2	216251120
315	2-M64*2	300358198
355	2-M72*2	300380200
