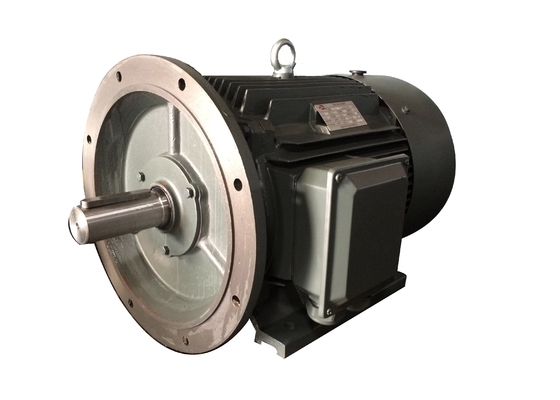

High Speed 6 Pole Low Voltage Electric Motor Three Phase With IEC Standard IE3

large.img.alt
small.img.alt

Large Image :  High Speed 6 Pole Low Voltage Electric Motor Three Phase With IEC Standard IE3 Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YE3-B35
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

high torque electric motors

,

3 phase synchronous motor

High Speed 6 Pole Low Voltage Electric Motor Three Phase With IEC Standard IE3





Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC/GB

Efficiency Level

IE3

Phase

Three-phase

Frame Size

H80~355 Cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.75~375KW

Voltage

380V

Frequency

50HZ

Pole

2,4,6

Protection Class

IP55

Insulation

F/B

Mounting

IMB35 /IM2001

Cooling

IC411

Duty

S1

Connection

” Y" type for 3kW and downwards, "D" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements





Greasing Period



Greasing Type

Frame Size

Poles

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

2

20000 h

4,6

40000 h

H180~280

2

20000 h

4,6

40000 h

Regreasing

H315~355

2

30000 h

4,6

60000 h





Rated Power



Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

kW

HP

kW

HP

kW

HP

YE3-80M1

0.75

1









YE3-80M2

1.1

1.5

0.75

1





YE3-90S

1.5

2

1.1

1.5

0.75

1

YE3-90L

2.2

3

1.5

2

1.1

1.5

YE3-100L

3.0

4

2.2

3

1.5

2





3

4





YE3-112M

4.0

5.5

4

5.5

2.2

3

YE3-132S

5.5

7.5

5.5

7.5

3

4

7.5

10









YE3-132M1





7.5

10

4

5.5

YE3-132M2









5.5

7.5

YE3-160M1-2

11

15

11

15

7.5

10

YE3-160M2-2

15

20









YE3-160L

18.5

25

15

20

11

15

YE3-180M

22

30

18.5

25





YE3-180L





22

30

15

20

YE3-200L1

30

40

30

40

18.5

25

YE3-200L2

37

50





22

30

YE3-225S





37

50





YE3-225M

45

60

45

60

30

40

YE3-250M

55

75

55

75

37

50

YE3-280S

75

100

75

100

45

60

YE3-280M

90

125

90

125

55

75

YE3-315S

110

150

110

150

75

100

YE3-315M

132

180

132

180

90

125

YE3-315L1

160

215

160

215

110

150

YE3-315L2

200

270

200

270

132

180

YE3-355M

250

340

250

340

160

215









200

270

YE3-355L

315

420

315

420

250

340

YE3-355X1

355

475

355

475

315

420

YE3-355X2

375

500

375

500









Mounting Type: IMB35 /IM2001: with feet and with flange on the DE side.

High Speed 6 Pole Low Voltage Electric Motor Three Phase With IEC Standard IE3 0



IM B35 Mounting and overall dimensions(mm)



Frame Size

Pole

Mounting Dimensions (mm)

Overall Dimensions (mm)

A

B

C

D

E

F

G

H

K

M

N

P

R

S

T

AA

AB

AC

AD

HD

LD

BB

HA

L

80M

2,4,6,8

125

100

50

19

40

6

15.5

80

10

165

130

200

0

4-¢12

3.5

34

165

167

165

245

74

130

10

300

90S

2,4,6,8

140

100

56

24

50

8

20

90

10

165

130

200

0

4-¢12

3.5

36

180

190

175

265

76

140

12

355

90L

2,4,6,8

140

125

56

24

50

8

20

90

10

165

130

200

0

4-¢12

3.5

36

180

190

175

265

76

165

12

385

100L

2,4,6,8

160

140

63

28

60

8

24

100

12

215

180

250

0

4-¢14.5

4

40

205

215

200

290

83

176

14

435

112M

2,4,6,8

190

140

70

28

60

8

24

112

12

215

180

250

0

4-¢14.5

4

45

230

240

220

325

87

180

15

470

132S

2,4,6,8

216

140

89

38

80

10

33

132

12

265

230

300

0

4-¢14.5

4

55

270

275

240

365

102

186

18

510

132M

2,4,6,8

216

178

89

38

80

10

33

132

12

265

230

300

0

4-¢14.5

4

55

270

275

240

365

102

224

18

560

160M

2,4,6,8

254

210

108

42

110

12

37

160

14.5

300

250

350

0

4-¢18.5

5

65

320

320

285

440

149

260

20

670

160L

2,4,6,8

254

254

108

42

110

12

37

160

14.5

300

250

350

0

4-¢18.5

5

65

320

320

285

440

149

260

20

700

180M

2,4,6,8

279

241

121

48

110

14

42.5

180

14.5

300

250

350

0

4-¢18.5

5

70

355

380

310

470

161

315

22

740

180L

2,4,6,8

279

279

121

48

110

14

42.5

180

14.5

300

250

350

0

4-¢18.5

5

70

355

380

310

470

161

350

22

780

200L

2,4,6,8

318

305

133

55

110

16

49

200

18.5

350

300

400

0

4-¢18.5

5

70

395

410

335

525

186

370

25

780

225S

4.8

356

286

149

60

140

18

53

225

18.5

400

350

450

0

4-¢18.5

5

75

435

470

370

580

189

388

28

820

225M

2

356

311

149

55

110

16

49

225

18.5

400

350

450

0

4-¢18.5

5

75

435

470

370

580

189

395

28

815

4,6,8

356

311

149

60

140

18

53

225

18.5

400

350

450

0

4-¢18.5

5

75

435

470

370

580

189

395

28

845

250M

2

406

349

168

60

140

18

53

250

24

500

450

550

0

4-¢18.5

5

80

490

490

380

635

207

445

30

915

4,6,8

406

349

168

65

140

18

58

250

24

500

450

550

0

4-¢18.5

5

80

490

490

380

635

207

445

30

915

280S

2

457

368

190

65

140

18

58

280

24

500

450

550

0

4-¢18.5

5

85

550

580

410

698

215

485

35

985

4,6,8

457

368

190

75

140

20

67.5

280

24

500

450

550

0

4-¢18.5

5

85

550

580

410

698

215

485

35

985

280M

2

457

419

190

65

140

18

58

280

24

500

450

550

0

4-¢18.5

5

85

550

580

410

698

215

540

35

1035

4,6,8

457

419

190

75

140

20

67.5

280

24

500

450

550

0

4-¢18.5

5

85

550

580

410

698

215

540

35

1035

315S

2

508

406

216

65

140

18

58

315

28

600

550

660

0

4-¢24

6

120

630

645

535

885

257

570

45

1200

4,6,8,10

508

406

216

80

170

22

71

315

28

600

550

660

0

4-¢24

6

120

630

645

535

885

257

570

45

1230

315M

2

508

457

216

65

140

18

58

315

28

600

550

660

0

4-¢24

6

120

630

645

535

885

257

680

45

1310

4,6,8,10

508

457

216

80

170

22

71

315

28

600

550

660

0

4-¢24

6

120

630

645

535

885

257

680

45

1340

315L

2

508

508

216

65

140

18

58

315

28

600

550

660

0

4-¢24

6

120

630

645

535

885

257

680

45

1310

4,6,8,10

508

508

216

80

170

22

71

315

28

600

550

660

0

4-¢24

6

120

630

645

535

885

257

680

45

1340

355M

2

610

560

254

75

140

20

67.5

355

28

740

680

800

0

4-¢24

6

120

730

720

650

1065

284

750

52

1510

4,6,8,10

610

560

254

95

170

25

86

355

28

740

680

800

0

4-¢24

6

120

730

720

650

1065

284

750

52

1550

355L

2

610

630

254

75

140

20

67.5

355

28

740

680

800

0

4-¢24

6

120

730

720

650

1065

284

750

52

1510

4,6,8,10

610

630

254

95

170

25

86

355

28

740

680

800

0

4-¢24

6

120

730

720

650

1065

284

750

52

1550

Remark: R=Distance from flange to shaft shoulder.





Terminal Box



Frame Size

Dia.of the thread(mm)

X*Y*Z(mm)

80

1-M24*1.5

95*95*50

90-100

1-M24*1.5

102*102*50

112-132

2-M30*2

108*123*75

160-180

2-M36*2

150*160*105

200-225

2-M48*2

188*208*105

250-280

2-M64*2

216*251*120

315

2-M64*2

300*358*198

355

2-M72*2

300*380*200





Description:



YE2 series high-efficiency three phase asynchronous motor is a development based on the YP2 series motor while considering the demand for energy conservation around the world. The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 2.55%higher than YP2 series motor.

According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.

Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.





The following as options or customer’s request:



Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others







Applications:



They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.





Competitive Advantage:



HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments



Contact Details
Wuxi HengDa Motors Co., Ltd

Contact Person: Ms. Ariel Liu

Tel: 15261591892

Fax: 86-0510-85616629

Send your inquiry directly to us
