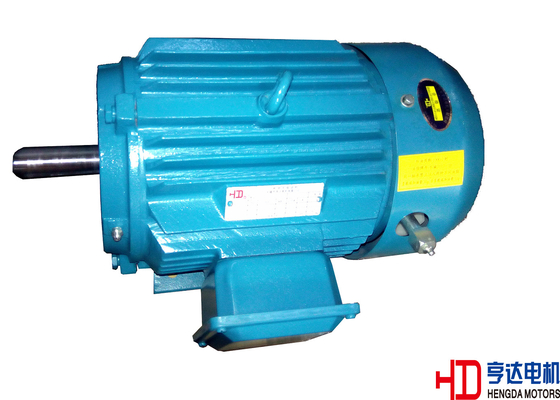

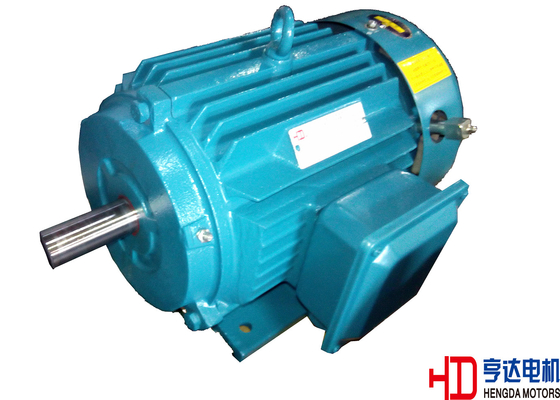

3 Phase 2.2KW 2 Pole High Temperature Electric Motors with IEC / DIN Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Efficiency Level: | IE1 | Frame Size: | H112 Cast Iron Frame |
|---|---|---|---|
| Output Range: | 2.2K,4KW | Protection Class: | IP54/IP55 |
| High Light: | energy efficient electric motors,high speed electric motors |
||
3 Phase 2.2K 2 Pole High Temperature Electric Motors with IEC / DIN Standard
|
Ambient |
||
|
Temperature range: |
-15~55℃ |
|
|
Ambient humidity: |
90%less than relative humidity |
|
|
Altitude: |
less than 1000m above sea level |
|
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
|
Supply power: |
||
|
Voltage variable |
±5% |
|
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
Standard Feature: |
||
|
Standard |
IEC /DIN |
|
|
Phase |
Three-phase |
|
|
Protect Feature |
Totally Enclosed |
|
|
Frequency |
50HZ |
|
|
Poles |
2,4,6 |
|
|
Insulation |
H |
|
|
Shaft hardness |
HB225 |
|
|
Stator winding temperature rise |
125K(resistance method) |
|
|
Mounting |
IMB3 or on your request |
|
|
Cooling |
IC411 |
|
|
Duty |
S1 |
|
|
Thermometry |
Optional |
|
|
Certification |
CCC, CE,ISO9001 |
|
|
Special motors can be designed according to customers' requirements |
||
Technical Specification
|
Motor Type |
2 pole /3000 rpm |
4 pole /1500 rpm |
6pole /1000 rpm |
|||
|
kW |
HP |
kW |
HP |
kW |
HP |
|
|
112M |
4 |
5.5 |
4 |
5.5 |
2.2 |
3 |
Description:
According to the actual requirements of the dyeing machinery industry, we made Y2GW series high temperature resistant motor which has aesthetic appearance and oil discharging device of injection on both end. The oil pipe is connecting both ends which ensure regreasing can be done during running.
When the Ambient temperature is less than 55 degrees, the temperature of shaft , flange and other parts increase to 250 degrees, the motor can be still working well for connecting directly to the circulating fan. Using high temperature resistant bearing which should be filled in 7017-1 high temperature grease after 1500 hours running.
H class insulation makes the motor with higher heat stability and longer life, and ensures the continuous production of printing and dyeing machinery industry.
Applications:
The motor application is directing for circulation fan, printing and dyeing machinery industry or other similar conditions.
