Helical Gear Units Variable Speed Electric Motor 1.5kw - 500kw With High Efficiency
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | variable speed induction motor,two speed electric motor |
||
|---|---|---|---|

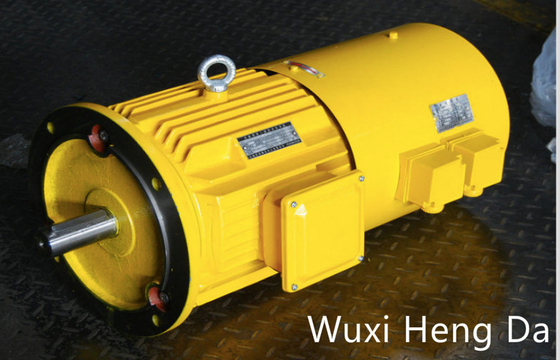

Helical Gear Units Variable Speed Electric Motor 1.5kw - 500kw With High Efficiency
Quick detail:
H series Helical Gear Units Variable Speed Electric Motors
Large torque:6100-36500N.m
Rated Power:1.5-500kw
High Output speed
Description:
YD Double Speed motors are totally enclosed ,squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC standards, with international generality, is the ideal product to export and replace the imported products.
YD series motors can apply to various transmission mechanisms which need control speed step by step.
The mounting and overall dimensions are the same as Y series standard motors .
Our Services
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10) Made of high-quality aluminum alloy, light weight and non-rusting
(11) Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE1 |
|
Phase |
Three-phase |
|
Frame Size |
H225~280 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
12/20KW~72/82KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35 or on your request |
|
Cooling |
IC411 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Meaning of type code
Technical Specification
|
Frame Size |
Synchronous Speed(r/min) |
||||
|
1500/3000 |
1000/1500 |
750/1500 |
750/1000 |
500/1000 |
|
|
225S |
32/37 |
22/28 |
|
|
|
|
225M |
37/45 |
26/32 |
24/34 |
|
12/20 |
|
250M |
45/52 |
32/42 |
30/42 |
|
15/24 |
|
280S |
60/72 |
42/55 |
40/55 |
|
20/30 |
|
280M |
72/82 |
55/67 |
47/67 |
|
24/37 |
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
