Double Speed Low Voltage Squirrel Cage Three Phase Asynchronous Motor , Totally Enclosed
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | variable speed induction motor,two speed electric motor |
||
|---|---|---|---|

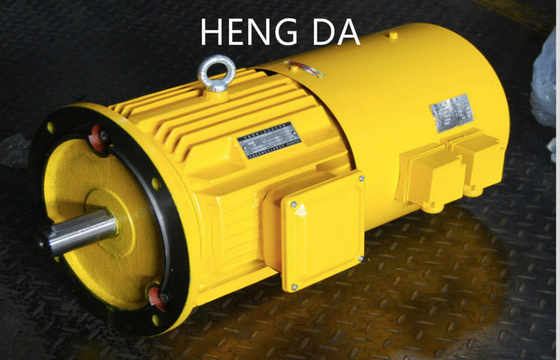

Double Speed Low Voltage Squirrel Cage Three Phase Asynchronous Motor , Totally Enclosed
IEC / DIN YD Variable Speed Motor Electric (Three Speed H100-160)
Description:
YD Double Speed motors are totally enclosed ,squirrel-cage three-phase asynchronous motor, and is a new generation of low voltage three-phase asynchronous motor optimized on the basis of Y series motor. Basic series products comply with IEC standards, with international generality, is the ideal product to export and replace the imported products.
YD series motors can apply to various transmission mechanisms which need control speed step by step.
The mounting and overall dimensions are the same as Y series standard motors .
Prompt Quotation:
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2000.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples
Applications:
1. They can be widely used in machine tools, mining metallurgy, spinning and weaving, printing, dyeing and chemical industry and agricultural machinery etc.
2. They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
|
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE1 |
|
Phase |
Three-phase |
|
Frame Size |
H80~280 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.45/0.55KW~72/82KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35 or on your request |
|
Cooling |
IC411 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Meaning of type code
Technical Specification
|
Frame Size |
Synchronous Speed(r/min) |
|||
|
1000/1500/3000 |
750/1500/3000 |
750/1000/1500 |
||
|
100L2 |
0.75/1.3/1.8 |
|
|
|
|
112M |
1.1/2/2.4 |
0.65/2/2.4 |
0.85/1/1.5 |
|
|
132S |
1.8/2.6/3 |
1/2.8/3 |
1.1/1.5/1.8 |
|
|
132M1 |
2.2/3.3/4 |
|
1.5/2/2.2 |
|
|
132M2 |
2.6/4/5 |
1.3/3.7/4.5 |
1.8/2.6/3 |
|
|
160M |
3.7/5/6 |
2.2/5/6 |
3.3/4/5.5 |
|
|
160L |
4.5/7/9 |
2.8/7/9 |
4.5/6/7.5 |
|
Advantage:
1. Wide range of adjustable speed
2. High efficiency
3. Energy-saving
4. Low noise
5. Little vibration
6. Safe operation
7. Easy maintenance
