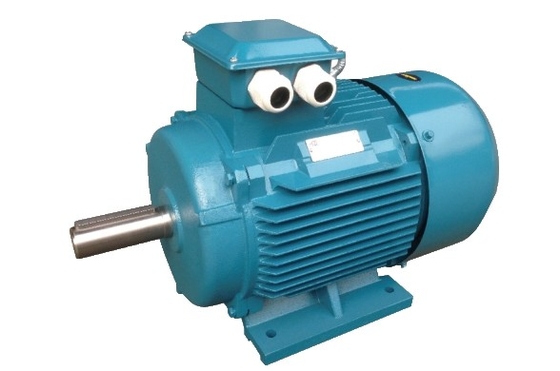

High Torque Frame200-280 Low Voltage Electric Motor 18.5KW - 90KW 380V 50HZ
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Efficiency Level: | IE3 | Frame Size: | H200~280cast Iron Frame |
|---|---|---|---|
| Output Range: | 18.5~90KW | Poles: | 2,4,6 |
| High Light: | high torque electric motors,3 phase synchronous motor |
||
High Torque Low Rpm Low Voltage Electric Motor 18.5KW - 90KW 380V 50HZ
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC |
|
Phase |
Three-phase |
|
Protect Feature |
Totally Enclosed |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35/IMV1 or on your request |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Rated Power
| Motor Type | 2 pole /3000 rpm | 4 pole /1500 rpm | 6pole /1000 rpm | |||
| kW | HP | kW | HP | kW | HP | |
| YE3-200L1 | 30 | 40 | 30 | 40 | 18.5 | 25 |
| YE3-200L2 | 37 | 50 | 22 | 30 | ||
| YE3-225S | 37 | 50 | ||||
| YE3-225M | 45 | 60 | 45 | 60 | 30 | 40 |
| YE3-250M | 55 | 75 | 55 | 75 | 37 | 50 |
| YE3-280S | 75 | 100 | 75 | 100 | 45 | 60 |
| YE3-280M | 90 | 125 | 90 | 125 | 55 | 75 |
Bearings
| Frame | DE side | NDE side | ||
| 2 pole | 4,6pole | 2 pole | 4,6pole | |
| 200 | 6312-C3 | 6312-C3 | 6312-C3 | 6312-C3 |
| 225 | 6313-C3 | 6313-C3 | 6313-C3 | 6313-C3 |
| 250 | 6314-C3 | 6314-C3 | 6314-C3 | 6314-C3 |
| 280 | 6314-C3 | 6317-C3 | 6314-C3 | 6317-C3 |
Description:
YE3 frame 200-280 super-high efficiency three phase asynchronous motor is energy saving motor .The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 4% higher than YP2 series motor.
According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency, high starting torque, low noise, more reliable structure and well appearance.
Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
