Lightweight 150 Kw Low Voltage Induction Electric Motor Torque , Energy Efficient

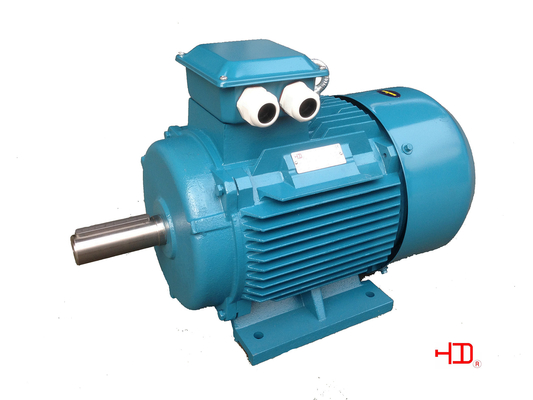

Large Image : Lightweight 150 Kw Low Voltage Induction Electric Motor Torque , Energy Efficient Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE3 Frame315-355

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Standard:

IEC

Efficiency Level:

IE3

Frame Size:

H315~355cast Iron Frame

Power:

75~375KW

High Light:

high torque electric motors

high rpm electric motor

Lightweight 150 Kw Low Voltage Induction Electric Motor Torque , Energy Efficient

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Phase	Three-phase
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Poles	2,4,6
Protection Class	IP55
Insulation	F/B
Mounting	IMB3 /IMB35/IMV1 or on your request
Cooling	IC411
Duty	S1
Connection	"D" type
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Rated Power

Motor Type	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
Motor Type	kW	HP	kW	HP	kW	HP
YE3-315S	110	150	110	150	75	100
YE3-315M	132	180	132	180	90	125
YE3-315L1	160	215	160	215	110	150
YE3-315L2	200	270	200	270	132	180
YE3-355M	250	340	250	340	160	215
YE3-355M					200	270
YE3-355L	315	420	315	420	250	340
YE3-355X1	355	475	355	475	315	420
YE3-355X2	375	500	375	500

Bearings

Frame	DE side		NDE side
Frame	2 pole	4,6pole	2 pole	4,6pole
315	6317-C3	6319-C3/NU319	6317-C3	6319-C3
355	6319-C3	6322-C3/NU322	6319-C3	6322-C3

Description:
YE3-IE3 high efficiency three phase asynchronous motor is energy saving motor .The mounting, bearings, terminal box, mounting dimensions are as the same as YP2 series. But its average efficiency is 4% higher than YP2 series motor.
According to IEC standard and Chinese energy-efficiency standard profoundly,this series reach the internationally general protection level(IP55)and insulation class (F insulation and B temperature rise).
Boast several features such as high efficiency, high starting torque, low noise, more reliable structure
and well appearance.
Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

The following as options or customer’s request:
Protection class IP56
Space heater
Heat protector
Vibration detector
Special mounting dimension and shaft dimension
Low vibration and low noise
Bearing thermometer PT100(frame size H180 and above)
Winding thermometer PT100
Special painting
Humid-tropical “TH”
Others

Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
