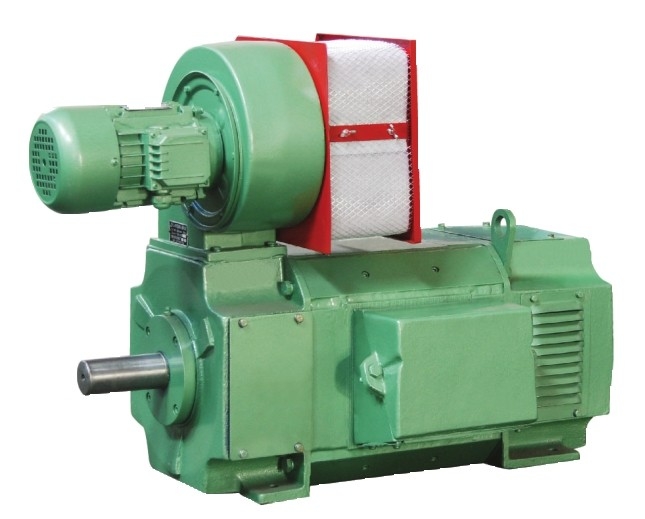

Totally Enclosed Industrial DC Motor 110KW / 180KW Electric Induction Motor

Large Image : Totally Enclosed Industrial DC Motor 110KW / 180KW Electric Induction Motor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Z4 H250

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	30 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	5,000pcs per month

Contact Now

Detailed Product Description

High Light:

high torque dc motor

three phase dc motor

Totally Enclosed Industrial DC Motor 110KW / 180KW Electric Induction Motor

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Standard Feature:
Standard		IEC34-1 / DIN57530
Phase		Three-phase
Frame Size		H250 cast iron frame
Protect Feature		Totally Enclosed
Output Range		45~220KW
Voltage		160V,440V or on request
Frequency		50HZ
Protection Class		IP21S
Insulation		F/B
Mounting		IMB3 /IMB35 or on your request
Cooling		IC06,IC17,IC37
Duty		S1
Thermometry		Optional
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Requirement for cooling air volume , air pressure and fan motor power

Frame Size	Air Volume	Static Pressure	Motor output
Frame Size	m³/h	Pa	KW
Z4-250	3000	1400	3

The fan motors are all three phase ,two pole ,380V

Technical Specification :

The data below is include excitation loss, excluding blower loss

Motor Type	Rated Power	Rated Speed		Magnetic speed	Arm.Curr.	Excitation Power	armature circuit resistance	Armature circuit inductance	Field Inductance	Efficiency	Moment of inertia	Weight

	P_N	400V	440V	N_F	In	P_F	R	L_A	L_F	η	GD²
	KW	r/min		r/min	A	W	Ω(20℃)	mH	H	%	Kgm2	kg
Z4-250-12	144	1360		2100	399	2500	0.0444	1.3	4.29	88.8	8.8	890
	160		1500							89.9
Z4-250-11	99	900		2000	381		0.0911	2.4	4.55	86.2
	110		1000							88.1
Z4-250-21	167	1360		220	459	2750	0.0325	0.91	4.28	89.8	10	970
	185		1500							90.5
	81	680		2250	234		0.1306	3.9	5.41	83.2
	90		750							85.2
Z4-250-31	180	1360		2400	493	2850	0.0281	0.87	5.32	90.4	11.2	1070
	200		1500							91.5
	119	900		2000	334		0.0668	1.7	5.46	87.4
	132		1000							89.1
	67	540		2000	204		0.202	4	4	80.8
	75		600							84.6
	49	450		1500	152		0.305	7.3	5.1	78.5
	55		500							82.4
Z4-250-41	198	1360		2400	539	3000	0.0237	0.93	6.19	91	12.8	1180
	220		1500							91.7
Z4-250-42	144	900		2000	401		0.0485	1.9	4.53	88
	160		1000							89.2
Z4-250-41	99	680		1900	283		0.0102	2.6	5.3	85.8
	110		750							87.4
	81	540		1600	236		0.141	4.7	6.36	83.4
	90		600							85
	67	450		1500	201		0.195	5.1	4.97	80
	75		500							83.4

Mounting and Overall Dimensions(mm)

Mounting Type :IMB3/IM1001

Totally Enclosed Industrial DC Motor 110KW / 180KW Electric Induction Motor 0

Frame Size	Mounting Dimensions (mm)													Overall Dimensions (mm)
Frame Size	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	AB	AC	AD	HD	h1	L	L1
Z4-250-11	406	715	168	85	170	22	90	75	140	20	79.5	250	24	490	524	432	1031	25	1225	1657
Z4-250-12		775																	1285	1717
Z4-250-21		765																	1275	1707
Z4-250-22		825																	1335	1767
Z4-250-31		825																	1335	1767
Z4-250-32		885																	1395	1827
Z4-250-41		895																	1405	1837
Z4-250-42		955																	1465	1897

Supply power:

1, The power supply of Armature and Field circuits can be from Static rectifier power supply or from DC generator.

2,Under constant torque, decrease armature voltage to adjust speed;Under constant power, decrease excitation voltage to adjust speed.

3, Separated excitation is the basic excitation type. Nominal excitation voltage is180V, other voltages are also acceptable on your request.

4,For frameZ4-250,it is possible to have compensating windings.

Mounting Type: IMB35 /IM2001

Totally Enclosed Industrial DC Motor 110KW / 180KW Electric Induction Motor 1

Frame Size	Mounting Dimensions (mm)																	Overall Dimensions (mm)
	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	M	N	S	T	P	AB	AC	AD	HD	L	L1
Z4-250-11	406	715	168	85	170	22	90	75	140	20	79.5	250	24	600	550	8-￠24	6	660	490	524	432	1031	1225	1657
Z4-250-12		775																					1285	1717
Z4-250-21		765																					1275	1707
Z4-250-22		825																					1335	1767
Z4-250-31		825																					1335	1767
Z4-250-32		885																					1395	1827
Z4-250-41		895																					1405	1837
Z4-250-42		955																					1465	1897

Description:

Mounting and Overall type of Z4 DC motor are comply with IEC72 Standard, except the axial distance between the mounting holes( Dimension “B”)

This series motors have polygon structure, so they have high space efficient. Their stator yoke which is lamination and use rectifier power supply can withstand pulsating current and rapid change of current .

Due to its accurate location of magnetic pole, it is convenient to change the direction

Thanks to its small size,good performance, light weight , high efficiency and reliability , our Z4 DC motors can compete with international advanced level.

Applications:

Z4 DC motors are our latest product. They are widely used as drive source for various machinery, such as Metallurgical industry, Metal cutting machine, Paper ,Printing, Textile, Dyeing, Cement, Plastic extrusion machinery and so on.
