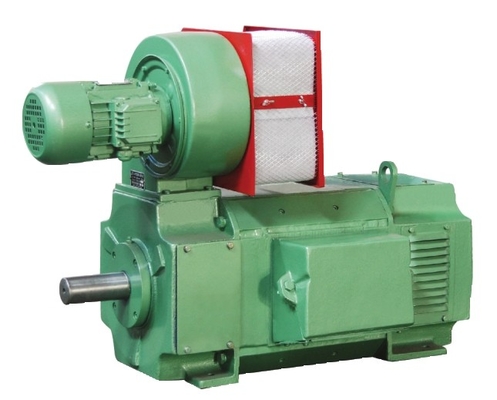

High Power 550KW 3 Phase Asynchronous Electric Motor Low Voltage Dc Motors

High Power 550KW 3 Phase Asynchronous Electric Motor Low Voltage Dc Motors

Requirement for cooling air volume , air pressure and fan motor power

The fan motors are all three phase ,two pole ,380V

Technical Specification :

The data below is include excitation loss, excluding blower loss

Mounting and Overall Dimensions(mm)

Mounting Type :IMB3/IM1001

Description:

Mounting and Overall type of Z4 DC motor are comply with IEC72 Standard, except the axial distance between the mounting holes( Dimension “B”)

This series motors have polygon structure, so they have high space efficient. Their stator yoke which is lamination and use rectifier power supply  can withstand pulsating current and  rapid change of current .

Due to its accurate location of magnetic pole, it is convenient to change the  direction

Thanks to its small size,good performance, light weight , high efficiency and reliability , our Z4 DC motors can compete with international advanced level.

Supply power:

1,The power supply of Armature and Field circuits can be from Static rectifier power supply or from DC generator.

2,Under constant torque, decrease armature voltage to adjust speed;Under constant power, decrease excitation voltage to adjust speed.

3, Separated excitation is the basic excitation type. Nominal excitation voltage is180V, other voltages are also acceptable on your request.

4,For frame Z4-400, compensating windings are provided.

Applications:

Z4 DC motors are our latest product. They are widely used as drive source for various machinery, such as Metallurgical industry, Metal cutting machine, Paper ,Printing, Textile, Dyeing, Cement, Plastic extrusion machinery and so on.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
