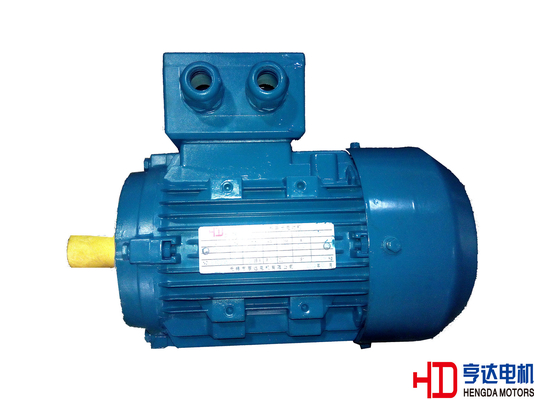

Squirrel-Cage 2 Pole Three Phase Asynchronous Motors 0.18KW - 7.5KW 380V 50HZ
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standard: | IEC | Frame Size: | H63~132 Aluminum Frame |
|---|---|---|---|
| Phase: | Three-phase | Output Range: | 0.18~7.5KW |
| Mounting: | IMB3 /IMB35/IMB5 Or On Your Request | Pole: | 2 |
| High Light: | three phase asynchronous electric motor,3 phase synchronous motor |
||
Squirrel-Cage 2 Pole Three Phase Asynchronous Motors 0.18KW - 7.5KW 380V 50HZ
Description:
Y2A series motor is totally enclosed, fan cooled, aluminum frame, squirrel-cage three-phase asynchronous motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.
Y2A series motor is characterized by low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system. Comparing with Y series, Y2A improves protection level (IP54), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.
Applications:
They can be widely used for driving various common machines and equipments such as compressors, fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum, chemical,pharmaceutical and mining industries.
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Efficiency Level |
IE1 |
|
Protect Feature |
Totally Enclosed |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Protection Class |
IP54/IP55 |
|
Insulation |
F/B |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Overload Times |
According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes. |
|
Certification |
CCC, ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Technical Specification (2 pole/3000r/min 380V/50HZ)
|
Motor Type |
Rated Power |
Current |
Rated Speed |
Power Factor |
Efficiency |
Locked Current |
Locked Torque |
Maximum Torque |
Moment of Inertia |
Weight |
||
|
Rated Current |
Rated Torque |
Rated Torque |
||||||||||
|
kW |
HP |
380V InA |
400V IoA |
r/min |
cosΦ |
η% |
Ist/IN |
Tst/TN |
TM/TN |
J Kgm2 |
kg |
|
|
Y2A-63-2 |
0.18 |
0.24 |
0.56 |
0.52 |
2750 |
0.78 |
63.0 |
4.50 |
2.0 |
2.2 |
0.0003 |
5 |
|
Y2A-63-2 |
0.25 |
0.33 |
0.76 |
0.72 |
2750 |
0.78 |
64.0 |
4.50 |
2.0 |
2.2 |
0.0004 |
6 |
|
Y2A-71-2 |
0.37 |
0.5 |
1.09 |
1.04 |
2775 |
0.80 |
64.0 |
5.00 |
2.0 |
2.2 |
0.0005 |
8 |
|
Y2A-71-2 |
0.55 |
0.75 |
1.53 |
1.45 |
2775 |
0.84 |
65.0 |
5.00 |
2.0 |
2.2 |
0.0006 |
8 |
|
Y2A-80-2 |
0.75 |
1 |
1.94 |
1.85 |
2840 |
0.86 |
68.0 |
5.50 |
2.2 |
2.4 |
0.0008 |
8.5 |
|
Y2A-80-2 |
1.1 |
1.5 |
2.73 |
2.60 |
2840 |
0.86 |
71.0 |
5.50 |
2.2 |
2.4 |
0.0010 |
9.5 |
|
Y2A-90S-2 |
1.5 |
2 |
3.50 |
3.30 |
2840 |
0.84 |
77.4 |
6.00 |
2.2 |
2.5 |
0.0012 |
12.5 |
|
Y2A-90L-2 |
2.2 |
3 |
4.80 |
4.56 |
2840 |
0.87 |
80.0 |
6.50 |
2.2 |
2.5 |
0.0014 |
13.5 |
|
Y2A-100L-2 |
3 |
4 |
6.55 |
6.22 |
2840 |
0.88 |
79.0 |
6.50 |
2.5 |
2.6 |
0.0029 |
20 |
|
Y2A-112M-2 |
4 |
5.5 |
8.40 |
8.00 |
2850 |
0.87 |
83.0 |
7.00 |
2.5 |
2.6 |
0.0050 |
25 |
|
Y2A-132S-2 |
5.5 |
7.5 |
11.30 |
10.7 |
2870 |
0.88 |
84.0 |
7.00 |
2.4 |
2.5 |
0.0104 |
32 |
|
Y2A-132S-2 |
7.5 |
10 |
15.41 |
14.6 |
2870 |
0.88 |
84.0 |
7.00 |
2.3 |
2.5 |
0.0121 |
36 |
Greasing Period
|
Greasing Type |
Frame Size |
Pole |
Grease Life/Relubrication Interval(Up to CT40℃) |
|
Prelubricated |
H80~132 |
2 |
20000 h |
Bearings
|
Frame |
DE side |
NDE side |
|
63 |
6201-2RZ-C3 |
6201-2RZ-C3 |
|
71 |
6202-2RZ-C3 |
6202-2RZ-C3 |
|
80 |
6204-2RZ-C3 |
6204-2RZ-C3 |
|
90 |
6205-2RZ-C3 |
6205-2RZ-C3 |
|
100 |
6206-2RZ-C3 |
6206-2RZ-C3 |
|
112 |
6306-2RZ-C3 |
6306-2RZ-C3 |
|
132 |
6308-2RZ-C3 |
6308-2RZ-C3 |
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
1. Focus on the manufacture of Low Voltage Motors;
2. Efficient customer services
3. Customized motors.
