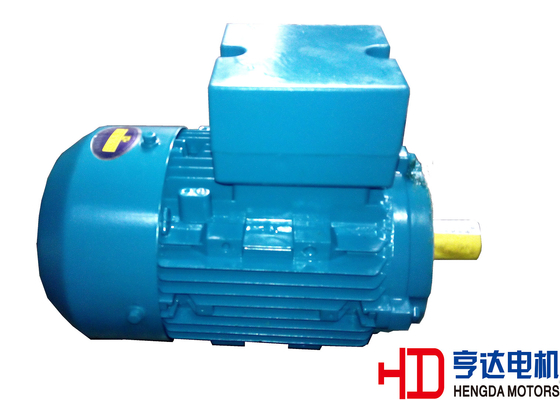

Energy Saving 10HP IMB3 3 Phase Asynchronous Motor 1500 rpm For Air Compressor
IEC Standard IE1 Y2A motors Mounting type B3 in Industry (H 63~132 Aluminum Frame)
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Phase |
Three-phase |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Poles |
2,4,6,8 |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Mounting |
IMB3 |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Overload Times |
According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes. |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Rated Power
|
Motor Type |
2 pole /3000 rpm |
4 pole /1500 rpm |
6pole /1000 rpm |
8pole /750 rpm |
||||
|
kW |
HP |
kW |
HP |
kW |
HP |
kW |
HP |
|
|
Y2A-63 |
0.18 |
0.24 |
0.12 |
0.16 |
|
|
|
|
|
Y2A-63 |
0.25 |
0.33 |
0.18 |
0.24 |
|
|
|
|
|
Y2A-71 |
0.37 |
0.5 |
0.25 |
0.33 |
0.18 |
0.24 |
|
|
|
Y2A-71 |
0.55 |
0.75 |
0.37 |
0.5 |
0.25 |
0.33 |
|
|
|
Y2A-80 |
0.75 |
1 |
0.55 |
0.75 |
0.37 |
0.5 |
0.18 |
0.24 |
|
Y2A-80 |
1.1 |
1.5 |
0.75 |
1 |
0.55 |
0.75 |
0.25 |
0.33 |
|
Y2A-90S |
1.5 |
2 |
1.1 |
1.5 |
0.75 |
1 |
0.37 |
0.5 |
|
Y2A-90L |
2.2 |
3 |
1.5 |
2 |
1.10 |
1.5 |
0.55 |
0.75 |
|
Y2A-100L |
3 |
4 |
2.2 |
3 |
1.50 |
2 |
0.75 |
1 |
|
|
|
3 |
4 |
|
|
|
|
|
|
Y2A-112M |
4 |
5.5 |
4 |
5.5 |
2.20 |
3 |
1.1 |
1.5 |
|
Y2A-132S |
5.5 |
7.5 |
5.5 |
7.5 |
3.00 |
4 |
1.5 |
2 |
|
7.5 |
10 |
7.5 |
10 |
|
|
|
|
|
|
Y2A-132M |
|
|
|
|
4.00 |
5.5 |
2.2 |
3 |
|
|
|
|
|
5.50 |
7.5 |
3.0 |
4 |
|
Mounting Type:IMB3/IM1001: with feet and without flange on the DE side.
IM B3 Mounting and overall dimensions(mm) H63-H132 Without lifting ring
|
Frame Size |
Pole |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
|||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
HD |
L |
||
|
63 |
2,4 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
7 |
135 |
130 |
175 |
225 |
|
71 |
2,4,6 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
140 |
145 |
195 |
250 |
|
80 |
2,4,6,8 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
158 |
175 |
214 |
295 |
|
90S |
2,4,6,8 |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
185 |
195 |
250 |
315 |
|
90L |
2,4,6,8 |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
185 |
195 |
250 |
340 |
|
100L |
2,4,6,8 |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
205 |
215 |
260 |
385 |
|
112M |
2,4,6,8 |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
226 |
240 |
300 |
400 |
|
132S |
2,4,6,8 |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
266 |
275 |
340 |
470 |
|
132M |
2,4,6,8 |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
266 |
275 |
340 |
510 |
Description:
Y2A series motor is totally enclosed, fan cooled, aluminum frame, squirrel-cage three-phase asynchronous motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.
Y2A series motor is characterized by low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system. Comparing with Y series, Y2A improves protection level (IP54), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.
Applications:
They can be widely used for driving various common machines and equipments such as compressors, fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum, chemical,pharmaceutical and mining industries.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
