Permanent Magnet Three Phase Asynchronous Motor 1000 rpm With Aluminum Frame
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Efficiency Level: | IE1 | Frame Size: | H63~132 Aluminum Frame |
|---|---|---|---|
| Phase: | Three-phase | Output Range: | 0.12~7.5KW |
| High Light: | asynchronous induction motor,3 phase synchronous motor |
||

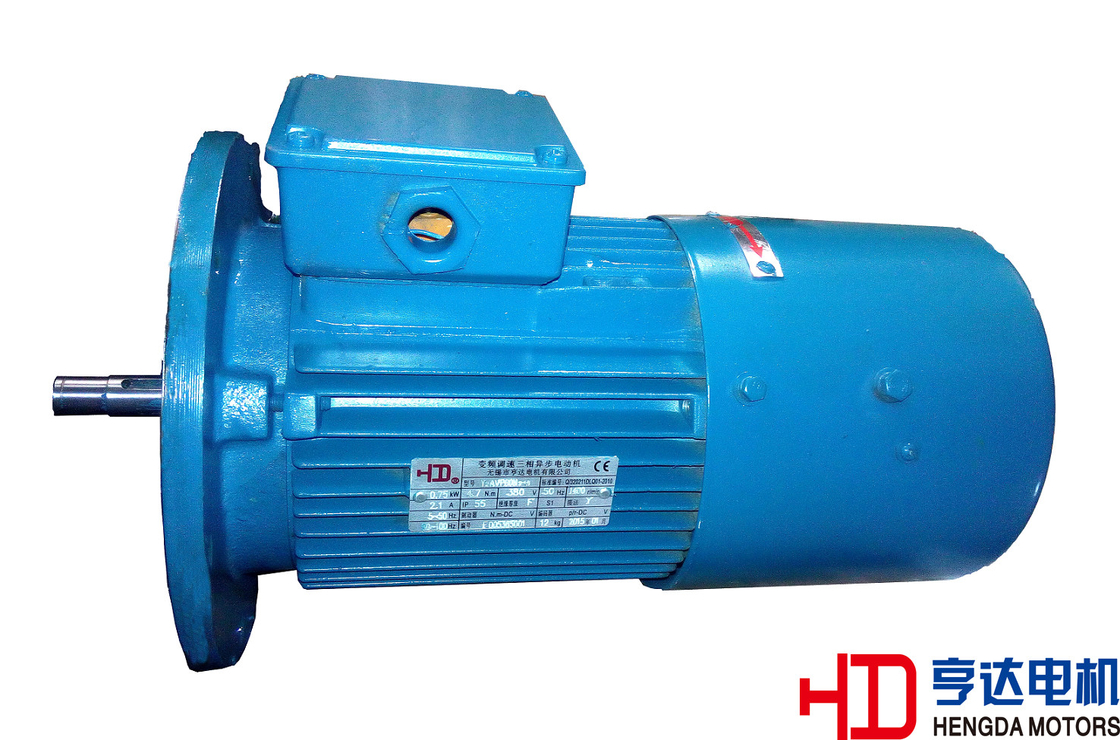

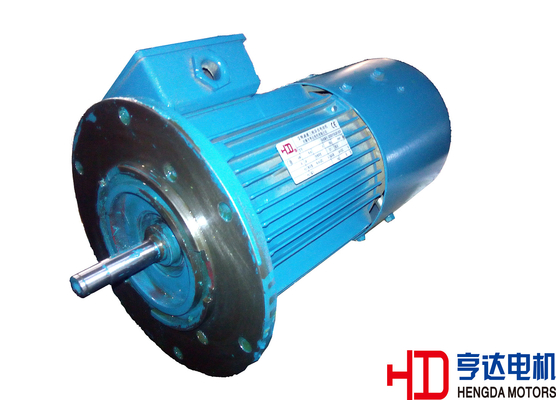

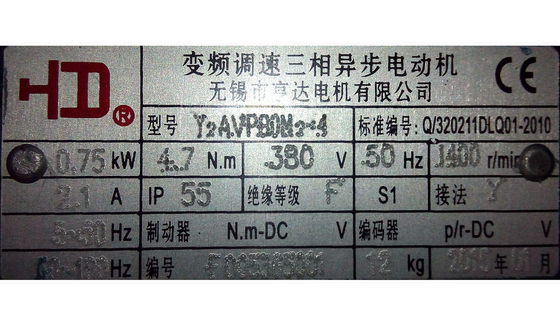

Permanent Magnet Three Phase Asynchronous Motor 1000 rpm With Aluminum Frame
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90% less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Protect Feature |
Totally Enclosed |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Poles |
2,4,6,8 |
|
Protection Class |
IP54/IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB5 /IM3001 |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y" type for 3kW and downwards, "D" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Overload Times |
According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes. |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|
Rated Power
|
Motor Type |
2 pole /3000 rpm |
4 pole /1500 rpm |
6pole /1000 rpm |
8pole /750 rpm |
||||
|
kW |
HP |
kW |
HP |
kW |
HP |
kW |
HP |
|
|
Y2A-63 |
0.18 |
0.24 |
0.12 |
0.16 |
|
|
|
|
|
Y2A-63 |
0.25 |
0.33 |
0.18 |
0.24 |
|
|
|
|
|
Y2A-71 |
0.37 |
0.5 |
0.25 |
0.33 |
0.18 |
0.24 |
|
|
|
Y2A-71 |
0.55 |
0.75 |
0.37 |
0.5 |
0.25 |
0.33 |
|
|
|
Y2A-80 |
0.75 |
1 |
0.55 |
0.75 |
0.37 |
0.5 |
0.18 |
0.24 |
|
Y2A-80 |
1.1 |
1.5 |
0.75 |
1 |
0.55 |
0.75 |
0.25 |
0.33 |
|
Y2A-90S |
1.5 |
2 |
1.1 |
1.5 |
0.75 |
1 |
0.37 |
0.5 |
|
Y2A-90L |
2.2 |
3 |
1.5 |
2 |
1.10 |
1.5 |
0.55 |
0.75 |
|
Y2A-100L |
3 |
4 |
2.2 |
3 |
1.50 |
2 |
0.75 |
1 |
|
|
|
3 |
4 |
|
|
|
|
|
|
Y2A-112M |
4 |
5.5 |
4 |
5.5 |
2.20 |
3 |
1.1 |
1.5 |
|
Y2A-132S |
5.5 |
7.5 |
5.5 |
7.5 |
3.00 |
4 |
1.5 |
2 |
|
7.5 |
10 |
7.5 |
10 |
|
|
|
|
|
|
Y2A-132M |
|
|
|
|
4.00 |
5.5 |
2.2 |
3 |
|
|
|
|
|
5.50 |
7.5 |
3.0 |
4 |
|
Mounting Type :IMB5 /IM3001: without feet , but with flange on the DE side.
IM B5 Mounting and overall dimensions(mm) H63-H90 Without lifting ring
|
Frame Size |
Pole |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
||||||||||
|
D |
E |
F |
G |
M |
N |
P |
S |
T |
AC |
HE |
L |
||
|
63 |
2,4 |
11 |
23 |
4 |
8.5 |
115 |
95 |
140 |
4-￠10 |
3 |
130 |
180 |
225 |
|
71 |
2,4,6 |
14 |
30 |
5 |
11 |
130 |
110 |
160 |
4-￠10 |
3.5 |
145 |
200 |
250 |
|
80 |
2,4,6,8 |
19 |
40 |
6 |
15.5 |
165 |
130 |
200 |
4-￠12 |
3.5 |
175 |
235 |
295 |
|
90S |
2,4,6,8 |
24 |
50 |
8 |
20 |
165 |
130 |
200 |
4-￠12 |
3.5 |
195 |
250 |
315 |
|
90L |
2,4,6,8 |
24 |
50 |
8 |
20 |
165 |
130 |
200 |
4-￠12 |
3.5 |
195 |
250 |
340 |
|
100L |
2,4,6,8 |
28 |
60 |
8 |
24 |
215 |
180 |
250 |
4-￠15 |
4 |
215 |
270 |
385 |
|
112M |
2,4,6,8 |
28 |
60 |
8 |
24 |
215 |
180 |
250 |
4-￠15 |
4 |
240 |
280 |
400 |
|
132S |
2,4,6,8 |
38 |
80 |
10 |
33 |
265 |
230 |
300 |
4-￠15 |
4 |
275 |
360 |
470 |
|
132M |
2,4,6,8 |
38 |
80 |
10 |
33 |
265 |
230 |
300 |
4-￠15 |
4 |
275 |
360 |
510 |
Description:
Y2A series motor is totally enclosed, fan cooled, aluminum frame, squirrel-cage three-phase asynchronous motor. Basic series products comply with IEC and DIN standards, with international generality, is the ideal product to export and replace the imported products.
Y2A series motor is characterized by low vibration, reliable performance, convenient maintenance, beautiful and novel appearance, is a typical application of energy saving motor, which adopts advanced electromagnetic calculation and special insulation system. Comparing with Y series, Y2A improves protection level (IP54), insulation level (F) according to the assessment of class B, reduces the noise, and with the load noise assessment, the motor structure more reasonable. Cooling method is IC411. Insulation dimension and power level are fully conform to the IEC standard and DIN42673 standard.
Applications:
They can be widely used for driving various common machines and equipments such as compressors, fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum, chemical,pharmaceutical and mining industries.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
1. Focus on the manufacture of Low Voltage Motors;
2. Efficient customer services
3. Customized motors.
4. Competitive and reasonable pricing and delivery term;
5. Perfect quality assurance system
6. Credible after-sale service and warranty commitments
Contact Details
Wuxi HengDa Motors Co., Ltd
Contact Person: Ms. Ariel Liu
Tel: 15261591892
Fax: 86-0510-85616629
Send your inquiry directly to us
More Three Phase Asynchronous Motor
-
Waterproof 2 Pole Three Phase Asynchronous Motor IP54 IP55 With CE / ISO9001
-
340HP / 420HP 250KW 4 Pole Three Phase Asynchronous Electric Motor 380V / 400V
-
IE1 4 KW 6 Pole Three Phase Asynchronous Squirrel Cage Induction Motor 40HZ - 60HZ
-
Explosion Proof 8 Pole Three Phase Asynchronous Motor Speed Control 110KW 160KW
-
Industrial 10 Pole 380v 3 Phase Asynchronous Induction Motor 90KW With Fan Cooled
-
Low Voltage Squirrel-Cage Three Phase Asynchronous Motor , Mounting Type B3
