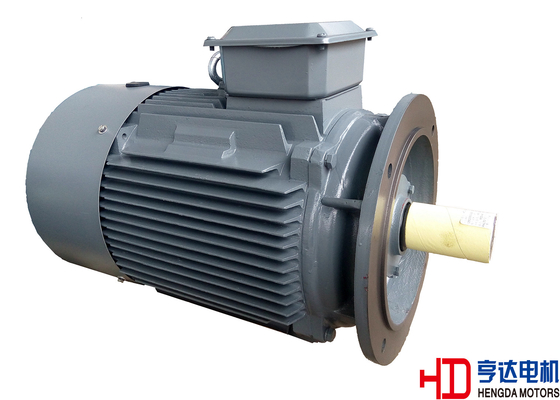

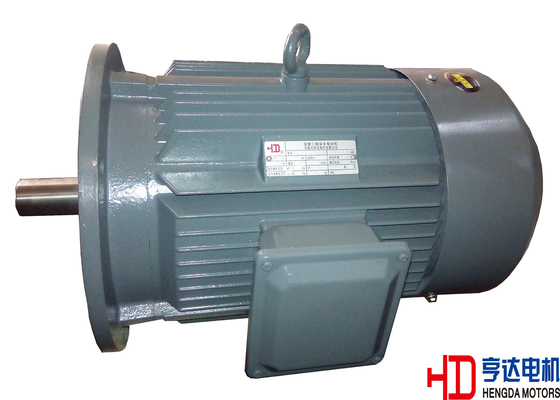

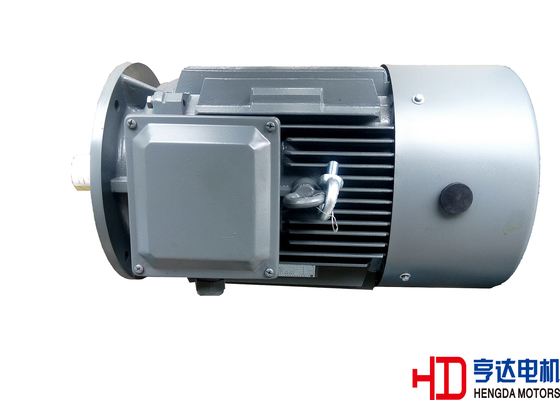

100 Horsepower Three Phase Asynchronous Motor , Low Rpm Electric Motor Industry

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  100 Horsepower Three Phase Asynchronous Motor , Low Rpm Electric Motor Industry Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YP2-V1
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Efficiency Level: IE1 Frame Size: H180~355 Cast Iron Frame
Output Range: 11~375KW Mounting: IMV1 /IM3011
High Light:

three phase asynchronous electric motor

,

asynchronous induction motor

100 Horsepower Three Phase Asynchronous Motor , Low Rpm Electric Motor Industry





Ambient

Temperature range:

-20~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC /DIN

Phase

Three-phase

Protect Feature

Totally Enclosed

Voltage

380V

Frequency

40-60HZ (50-60HZ constant power)

Poles

2, 4 , 6 ,8,10

Protection Class

IP54/IP55

Insulation

F/B

Cooling

IC411

Duty

S1

Connection

” Y" type for 3kW and downwards, "D" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements



Greasing Period

Greasing Type

Frame Size

Poles

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H180~280

2

20000 h

4,6

40000 h

Regreasing

H315~355

2

30000 h

4,6

60000 h



Rated Power

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

8pole /750 rpm

10pole /600 rpm

kW

HP

kW

HP

kW

HP

kW

HP

kW

HP

YP2-180M

22

30

18.5

25

　

　

11

15

　

　

YP2-180L

　

　

22

30

15

20

　

　

　

　

YP2-200L

30

40

30

40

18.5

25

15

20

　

　

37

50

　

　

22

30

　

　

　

　

YP2-225S

　

　

37

50

　

　

18.5

25

　

　

YP2-225M

45

60

45

60

30

40

22

30

　

　

YP2-250M

55

75

55

75

37

50

30

40

　

　

YP2-280S

75

100

75

100

45

60

37

50

　

　

YP2-280M

90

125

90

125

55

75

45

60

　

　

YP2-315S

110

150

110

150

75

100

55

75

45

60

YP2-315M

132

180

132

180

90

125

75

100

55

75

YP2-315L1

160

215

160

215

110

150

90

125

75

100

YP2-315L2

200

270

200

270

132

180

110

150

90

125

YP2-355M

250

340

250

340

160

215

132

180

110

150

　

　

　

　

200

270

160

215

132

180

YP2-355L

315

420

315

420

250

340

200

270

160

215

YP2-355X

355

475

355

475

315

420



375

500

375

500





IM V1  Mounting and overall dimensions(mm)

100 Horsepower Three Phase Asynchronous Motor , Low Rpm Electric Motor Industry 0

Frame Size

Pole

Mounting Dimensions (mm)

Overall Dimensions (mm)

D

E

F

G

M

N

P

R

S

T

AC

AD

HF

L

180M

2,4,6,8

48

110

14

42.5

300

250

350

0

4-￠18.5

5

380

310

500

800

180L

2,4,6,8

48

110

14

42.5

300

250

350

0

4-￠18.5

5

380

310

500

800

200L

2,4,6,8

55

110

16

49

350

300

400

0

4-￠18.5

5

410

335

540

845

225S

4.8

60

140

18

53

400

350

450

0

8-￠18.5

5

470

370

605

905

225M

2

55

110

16

49

400

350

450

0

8-￠18.5

5

470

370

605

910

4,6,8

60

140

18

53

400

350

450

0

8-￠18.5

5

470

370

605

940

250M

2

60

140

18

53

500

450

550

0

8-￠18.5

5

490

380

630

1035

4,6,8

65

140

18

58

500

450

550

0

8-￠18.5

5

490

380

630

1035

280S

2

65

140

18

58

500

450

550

0

8-￠18.5

5

580

410

700

1115

4,6,8

75

140

20

67.5

500

450

550

0

8-￠18.5

5

580

410

700

1115

280M

2

65

140

18

58

500

450

550

0

8-￠18.5

5

580

410

700

1115

4,6,8

75

140

20

67.5

500

450

550

0

8-￠18.5

5

580

410

700

1115

315S

2

65

140

18

58

600

550

660

0

8-￠24

6

645

535

858

1310

4,6,8,10

80

170

22

71

600

550

660

0

8-￠24

6

645

535

858

1340

315M

2

65

140

18

58

600

550

660

0

8-￠24

6

645

535

858

1425

4,6,8,10

80

170

22

71

600

550

660

0

8-￠24

6

645

535

858

1450

315L

2

65

140

18

58

600

550

660

0

8-￠24

6

645

535

858

1425

4,6,8,10

80

170

22

71

600

550

660

0

8-￠24

6

645

535

858

1450

355M

2

75

140

20

67.5

740

680

800

0

8-￠24

6

720

650

1010

1640

4,6,8,10

95

170

25

86

740

680

800

0

8-￠24

6

720

650

1010

1670

355L

2

75

140

20

67.5

740

680

800

0

8-￠24

6

720

650

1010

1640

4,6,8,10

95

170

25

86

740

680

800

0

8-￠24

6

720

650

1010

1670

Remark: R=Distance from flange to shaft shoulder.



Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.



Terminal Box

Frame Size

Dia.of the thread(mm)

X*Y*Z(mm)

180

2-M36*2

150*160*105

200-225

2-M48*2

188*208*105

250-280

2-M64*2

216*251*120

315

2-M64*2

300*358*198

355

2-M72*2

300*380*200



The following as options or customer’s request:

  Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others
