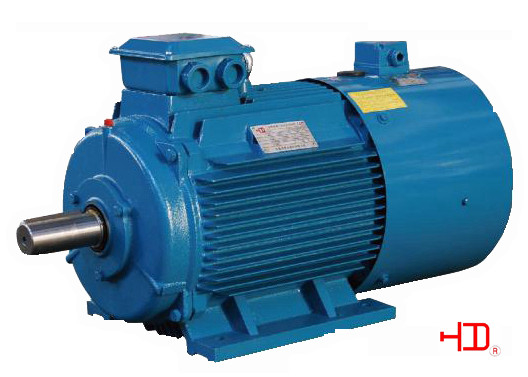

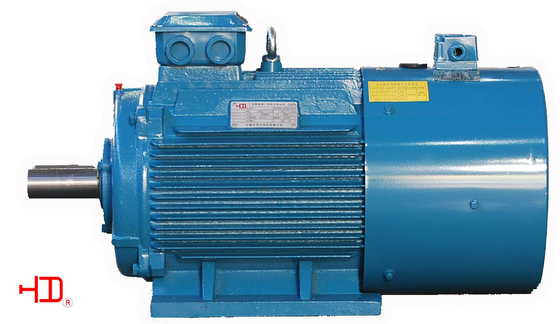

2 Pole S1 Asynchronous Inverter Duty Motor 100HP 200HP , High Power 200KW / 250KW

Large Image : 2 Pole S1 Asynchronous Inverter Duty Motor 100HP 200HP , High Power 200KW / 250KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Y2VP-2 pole

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

High Light:

inverter electric motor

3 phase inverter duty motor

2 Pole S1 Asynchronous Inverter Duty Motor 100HP 200HP , High Power 200KW / 250KW

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC/GB
Efficiency Level	IE1
Phase	Three-phase
Frame Size	H80~355 cast iron frame
Protect Feature	Totally Enclosed
Output Range	0.75~315KW
Frequency	50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)
Poles	2
Protection Class	IP55
Insulation	F/B
Mounting	IMB3 /IMB35/IMV1 or on your request
Cooling	IC416
Duty	S1
Lubricating grease	SRI-2
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Technical Specification (2 pole/ Synchronous speed 3000r/min in 50HZ)

Motor Type	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Locked Current	Locked Torque	Maximum Torque
	Rated Power		Current		Rated Speed	Rated Torque	Power Factor	Efficiency	Rated Current	Rated Torque	Rated Torque
	kW	HP	380V InA	400V IoA	r/min	N.m	cosΦ	η%	Ist/IN	Tst/TN	TM/TN
Y2VP80M1-2	0.75	1	1.8	1.7	2845	2.4	0.83	75.0	6.1	2.2	2.3
Y2VP80M2-2	1.1	1.5	2.6	2.5	2840	3.5	0.84	76.2	7.0	2.2	2.3
Y2VP90S-2	1.5	2	3.5	3.3	2840	4.8	0.84	78.5	7.0	2.2	2.3
Y2VP90L-2	2.2	3	4.9	4.6	2840	7.0	0.85	81.0	7.0	2.2	2.3
Y2VP100L-2	3.0	4	6.3	6.0	2860	9.5	0.87	82.6	7.5	2.2	2.3
Y2VP112M-2	4.0	5.5	8.2	7.8	2890	12.7	0.88	84.2	7.5	2.2	2.3
Y2VP132S1-2	5.5	7.5	11.1	10.5	2910	17.5	0.88	85.7	7.5	2.2	2.3
Y2VP132S2-2	7.5	10	14.9	14.1	2905	23.9	0.88	87.0	7.5	2.2	2.3
Y2VP160M1-2	11	15	21.2	20.2	2935	35.0	0.89	88.4	7.5	2.2	2.3
Y2VP160M2-2	15	20	28.6	27.2	2935	47.7	0.89	89.4	7.5	2.2	2.3
Y2VP160L-2	18.5	25	34.7	33.0	2935	58.9	0.90	90.0	7.5	2.2	2.3
Y2VP180M-2	22	30	41.0	39.0	2940	70.0	0.90	90.5	7.5	2.0	2.3
Y2VP200L1-2	30	40	55.4	52.6	2945	95.5	0.90	91.4	7.5	2.0	2.3
Y2VP200L2-2	37	50	67.9	64.5	2945	117.8	0.90	92.0	7.5	2.0	2.3
Y2VP225M-2	45	60	82	78	2950	143.2	0.90	92.5	7.5	2.0	2.3
Y2VP250M-2	55	75	100	95	2965	175.1	0.90	93.0	7.5	2.0	2.3
Y2VP280S-2	75	100	135	129	2965	238.7	0.90	93.6	7.5	2.0	2.3
Y2VP280M-2	90	125	160	152	2965	286.5	0.91	93.9	7.5	2.0	2.3
Y2VP315S-2	110	150	195	186	2975	350.1	0.91	94.0	7.1	1.8	2.2
Y2VP315M-2	132	180	233	222	2975	420.2	0.91	94.5	7.1	1.8	2.2
Y2VP315L1-2	160	215	279	265	2975	509.3	0.92	94.6	7.1	1.8	2.2
Y2VP315L2-2	200	270	348	331	2975	636.6	0.92	94.8	7.1	1.8	2.2
Y2VP355M-2	250	340	434	412	2970	795.8	0.92	95.2	7.1	1.6	2.2
Y2VP355L-2	315	420	545	518	2970	1002.6	0.92	95.4	7.1	1.6	2.2

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
Prelubricated	H180~280	2	20000 h
Regreasing	H315~355	2	30000 h

Bearings

Frame	DE side	NDE side
80	6204-2RZ-C3	6204-2RZ-C3
90	6205-2RZ-C3	6205-2RZ-C3
100	6206-2RZ-C3	6206-2RZ-C3
112	6306-2RZ-C3	6306-2RZ-C3
132	6308-2RZ-C3	6308-2RZ-C3
160	6309-2RZ-C3	6309-2RZ-C3
180	6311-C3	6311-C3
200	6312-C3	6312-C3
225	6313-C3	6313-C3
250	6314-C3	6314-C3
280	6314-C3	6314-C3
315	6317-C3	6317-C3
355	6319-C3	6319-C3

Description:

Y2VP -2 pole series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement

The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

The following as options or customer’s request:

Protection class IP56

Space heater

Heat protector

Vibration detector

Special mounting dimension and shaft dimension

Low vibration and low noise

Bearing thermometer PT100(frame size H180 and above)

Winding thermometer PT100

Special painting

Humid-tropical “TH”

Others

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
