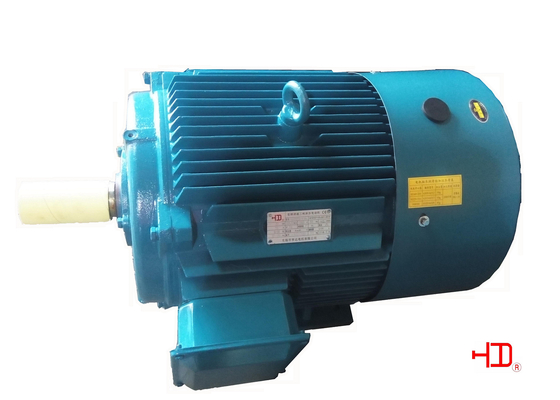

Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor

Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor
Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor

Large Image :  Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: Y2VP-4 pole
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
Standard: IEC/GB Efficiency Level: IE1
Pole: 4 Frequency: 50HZ( 5~50Hz Constant Torque, 50~100Hz Constant Power)
High Light:

inverter duty rated motor

,

3 phase inverter duty motor

Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor





Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Phase

Three-phase

Frame Size

H80~355 cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.75~315KW

Protection Class

IP55

Insulation

F/B

Mounting

IMB3 /IMB35/IMV1 or on your request

Cooling

IC416

Duty

S1

Lubricating grease

SRI-2

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements



Meaning of type code



Waterproof IP55 4 Pole Inverter Duty Motor 0.75KW - 315KW 3 Phase Induction Motor 0

Technical Specification (4 pole/ Synchronous speed 1500r/min in 50HZ )

Motor Type

Rated    Power

Current

Rated       Speed

Rated       Torque

Power  Factor

Efficiency

Locked Current

Locked Torque

Maximum Torque

Rated Current

Rated Torque

Rated Torque

kW

HP

380V  InA

400V IoA

r/min

N.m

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

Y2VP80M2-4

0.75

1

2.1

2.0

1380

4.8

0.76

73.0

6.0

2.3

2.3

Y2VP90S-4

1.1

1.5

2.8

2.7

1390

7.0

0.77

76.2

6.0

2.3

2.3

Y2VP90L-4

1.5

2

3.7

3.5

1390

9.5

0.79

78.5

6.0

2.3

2.3

Y2VP100L1-4

2.2

3

5.1

4.8

1410

14.0

0.81

81.0

7.0

2.3

2.3

Y2VP100L2-4

3.0

4

6.7

6.4

1410

19.1

0.82

82.6

7.0

2.3

2.3

Y2VP112M-4

4.0

5.5

8.8

8.4

1440

25.5

0.82

84.2

7.0

2.3

2.3

Y2VP132S-4

5.5

7.5

11.7

11.2

1445

35.0

0.83

85.7

7.0

2.3

2.3

Y2VP132M-4

7.5

10

15.6

14.8

1445

47.7

0.84

87.0

7.0

2.3

2.3

Y2VP160M-4

11

15

22.5

21.4

1460

70.0

0.84

88.4

7.0

2.2

2.3

Y2VP160L-4

15

20

30.0

28.5

1460

95.5

0.85

89.4

7.5

2.2

2.3

Y2VP180M-4

18.5

25

36.3

34.5

1470

117.8

0.86

90.0

7.5

2.2

2.3

Y2VP180L-4

22

30

42.9

40.8

1470

140.1

0.86

90.5

7.5

2.2

2.3

Y2VP200L-4

30

40

58.0

55.1

1470

191.0

0.86

91.4

7.2

2.2

2.3

Y2VP225S-4

37

50

70

67

1475

235.5

0.87

92.0

7.2

2.2

2.3

Y2VP225M-4

45

60

85

81

1475

286.5

0.87

92.5

7.2

2.2

2.3

Y2VP250M-4

55

75

103

98

1475

350.1

0.87

93.0

7.2

2.2

2.3

Y2VP280S-4

75

100

140

133

1485

477.5

0.87

93.6

7.2

2.2

2.3

Y2VP280M-4

90

125

167

159

1485

572.9

0.87

93.9

7.2

2.2

2.3

Y2VP315S-4

110

150

201

191

1485

700.3

0.88

94.5

6.9

2.1

2.2

Y2VP315M-4

132

180

240

228

1485

840.3

0.88

94.8

6.9

2.1

2.2

Y2VP315L1-4

160

215

288

273

1485

1018.6

0.89

94.9

6.9

2.1

2.2

Y2VP315L2-4

200

270

360

342

1485

1273.2

0.89

94.9

6.9

2.1

2.2

Y2VP355M-4

250

340

443

421

1490

1591.5

0.90

95.2

6.9

2.1

2.2

Y2VP355L-4

315

420

559

531

1490

2005.3

0.90

95.2

6.9

2.1

2.2





Greasing Period

Greasing Type

Frame Size

Poles

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

4

40000 h

H180~280

4

40000 h

Regreasing

H315~355

4

60000 h



Bearings

Frame

DE side

NDE side

80

6204-2Z-C3

6204-2Z-C3

90

6205-2Z-C3

6205-2Z-C3

100

6206-2Z-C3

6206-2Z-C3

112

6306-2Z-C3

6306-2Z-C3

132

6308-2Z-C3

6308-2Z-C3

160

6309-2Z-C3

6309-2Z-C3

180

6311-C3

6311-C3

200

6312-C3

6312-C3

225

6313-C3

6313-C3

250

6314-C3

6314-C3

280

6317-C3

6317-C3

315

6319-C3/NU319

6319-C3

355

6322-C3/NU322

6322-C3





Description:

Y2VP -4 pole series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement

The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.



The following as options or customer’s request:

  Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others



Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
