Product Details:
Payment & Shipping Terms:
|
Standard: | IEC/GB | Efficiency Level: | IE1 |
---|---|---|---|
Frequency: | 50HZ( 5~50Hz Constant Torque, 50~100Hz Constant Power) | Cooling: | IC416 |
High Light: | inverter electric motor,3 phase inverter duty motor |

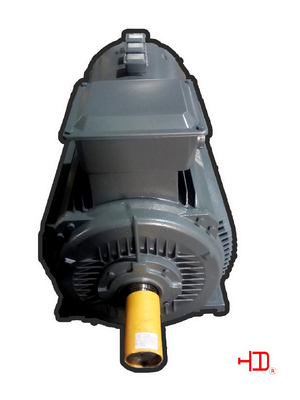

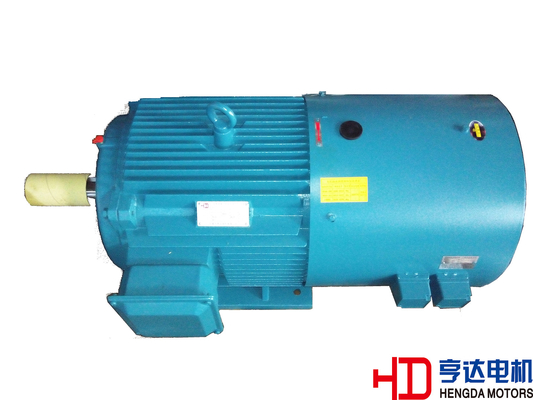

Industrial 45KW 160KW Inverter Duty Motor Electric For Water Pump IEC / GB
Ambient |
|
Temperature range: |
-15~40℃ |
Ambient humidity: |
90%less than relative humidity |
Altitude: |
less than 1000m above sea level |
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
Supply power: |
|
Voltage variable |
±5% |
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
Standard Feature: |
|
Phase |
Three-phase |
Protect Feature |
Totally Enclosed |
Output Range |
45~160KW |
Pole |
10 |
Protection Class |
IP55 |
Insulation |
F/B |
Mounting |
IMB3 or on your request |
Duty |
S1 |
Lubricating grease |
SRI-2 |
Thermometry |
Optional |
Certification |
CCC, CE,ISO9001 |
Special motors can be designed according to customers' requirements |
Applications:
They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
Meaning of type code
Technical Specification (10 pole/ Synchronous speed 600r/min in 50HZ )
Motor Type |
Rated Power |
Current |
Rated Speed |
Rated Torque |
Maximum Torque |
Weight |
|
Rated Torque |
|||||||
kW |
HP |
InA |
r/min |
N.m |
TM/TN |
Kg |
|
Y2VP315S-10 |
45 |
60 |
106.1 |
590 |
716.2 |
2 |
979 |
Y2VP315M-10 |
55 |
75 |
129.2 |
590 |
875.3 |
2 |
1062 |
Y2VP315L1-10 |
75 |
100 |
172.5 |
590 |
1193.6 |
2 |
1144 |
Y2VP315L2-10 |
90 |
125 |
191 |
590 |
1432 |
2 |
1243 |
Y2VP355M1-10 |
110 |
150 |
230 |
590 |
1736 |
2 |
1782 |
Y2VP355M2-10 |
132 |
180 |
276 |
590 |
2083 |
2 |
1903 |
Y2VP355L-10 |
160 |
215 |
333.3 |
590 |
2525 |
2 |
2167 |
Description:
Y2VP -10 pole series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement
The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .
Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.
The following as options or customer’s request:
Protection class IP56
Space heater
Heat protector
Vibration detector
Special mounting dimension and shaft dimension
Low vibration and low noise
Bearing thermometer PT100(frame size H180 and above)
Winding thermometer PT100
Special painting
Humid-tropical “TH”
Others
