Short Fiber 15 KW 17KW Textile Motors FE2VP-H180 / Asynchronous Induction Motor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Efficiency Level: | IE2 | Frame Size: | H180 Cast Iron Frame |
|---|---|---|---|
| Frequency: | 50HZ( 5~50Hz Constant Torque, 50~100Hz Constant Power) | Pole: | 4,6 |
| High Light: | low rpm electric motor,variable speed electric motor |
||

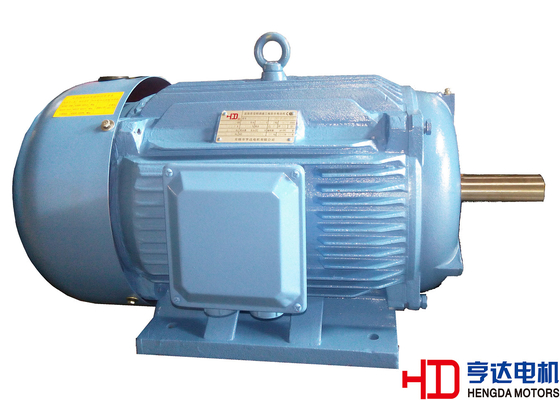

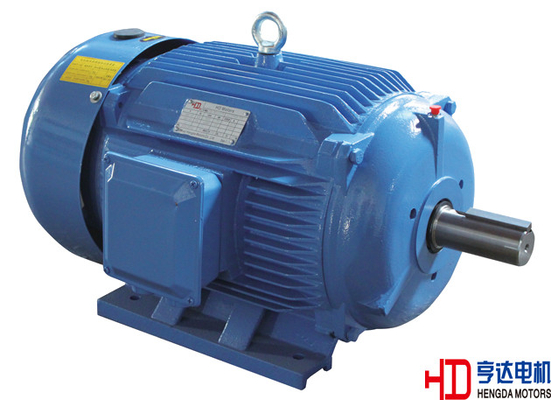

Short Fiber 15 KW 17KW Textile Motors FE2VP-H180 / Asynchronous Induction Motor
FE2VP inverter duty textile Motors in Industry (H 180 Cast Iron Frame)
Description:
The motor application is for spinning machine of frequency conversion control. This series motors are enclosed fan cooled with high efficiency, which can be easily re-greased and suitable for various types of textile machinery under the working conditions of dust and short fibers, high temperature and humidity.
Frequency range 5-100HZ , Rated frequency 50HZ, 5~50Hz Constant Torque,50~100Hz constant power.
|
Standard Feature: |
|
|
Standard |
IEC |
|
Phase |
Three-phase |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
15~25KW |
|
Voltage |
380V |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Mounting |
IMB3 |
|
Duty |
S1 |
|
Connection |
△ |
|
Thermometry |
Optional |
|
Certification |
CCC,ISO9001 |
|
Special motors can be designed according to customers' requirements |
|

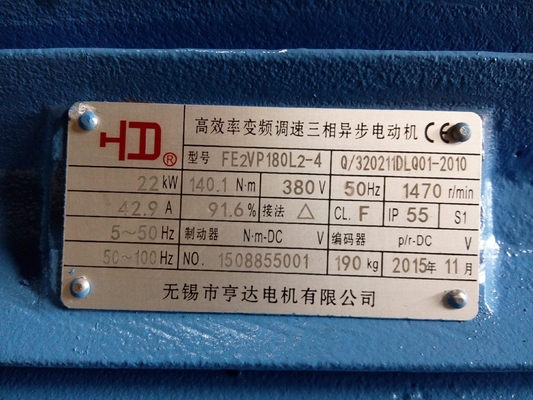

Technical Specification (380V/50HZ) Connection :△
| Motor Type | Rated Power | Current | Efficiency | Power Factor | Torque | Constant Torque | constant power | Weight |
| KW | A | η% | cosΦ | N.M | Hz | Hz | kg | |
| FE2VP 180M1-4 | 15 | 29.9 | 90.6 | 0.84 | 95.5 | 5-50 | 50-100 | 170 |
| FE2VP 180M2-4 | 17 | 33.8 | 90.9 | 0.84 | 108.2 | 5-50 | 50-100 | 180 |
| FE2VP 180L1-4 | 18.5 | 36.3 | 91.2 | 0.85 | 117.8 | 5-50 | 50-100 | 190 |
| FE2VP 180L2-4 | 22 | 42.9 | 91.6 | 0.85 | 140 | 5-50 | 50-100 | 210 |
| FE2VP 180L3-4 | 25 | 48.7 | 91.8 | 0.85 | 150 | 5-50 | 50-100 | 220 |
| FE2VP 180M1-6 | 13 | 27.7 | 89.2 | 0.8 | 124.2 | 5-50 | 50-100 | 170 |
| FE2VP 180M2-6 | 15 | 31 | 89.7 | 0.82 | 143.3 | 5-50 | 50-100 | 180 |
| FE2VP 180L2-6 | 17 | 35.4 | 90.1 | 0.81 | 165.5 | 5-50 | 50-100 | 210 |
Mounting and Overall Dimensions(mm)
|
Frame Size |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
|||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
BB |
AC |
AD |
HD |
L |
|
|
FE2VP 180M |
279 |
241 |
121 |
48 |
110 |
14 |
42.5 |
180 |
4-￠15 |
349 |
330 |
375 |
280 |
420 |
670 |
|
FE2VP 180L |
279 |
279 |
121 |
48 |
110 |
14 |
42.5 |
180 |
4-￠15 |
349 |
350 |
375 |
280 |
420 |
710 |
Applications:
This series motors are suitable for the frequency control of the spinning machine and other textile machinery under the working conditions of dust and short fibers ,high temperature and humidity.
Competitive Advantage:
Relying on continuous innovation ,HD textile motors become one of the best in the textile motor industry with their perfect performance , reliable quality , high efficiency and energy reservation.HD will continuously uses the knowledge and experience in motor design and manufacturing, and implement comprehensive quality control according to ISO9001 2008, and serve customers with high quality products and good service.
