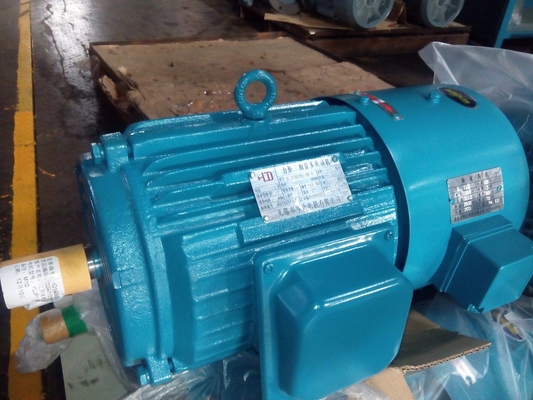

High Torque Three Phase Asynchronous Motor 380V 50HZ With H100 Cast Iron Frame

High Torque Three Phase Asynchronous Motor 380V 50HZ With H100 Cast Iron Frame





Meaning of type code




Technical Specification




Mounting and Overall Dimensions(mm)





Description:

1, Winding:The tension of YLJX series torque motor will remain steady from blank panel to plateful.
It is convenient to adjust the tension and will repeat normally after regulating.
With reliable structure and low cost, the motor is easy to operate and maintain.
2, Decoiling:The torque motor is in a reverse braking state as tension control. It is able to meet the needs through regulating device to control the size of the braking torque , so the voltage should not be over 300V.
3, Locked:In some special occasions, moment last for some time is necessary.
The locked time for our torque motor can be according to the nameplate. If longer time is needed , bigger motor can be choosed .
4, Moment:Due to the soft mechanical properties , torque motor will have low  efficiency during low speed running , so it is unfavorable to operate under low speed for a long time.


Applications:

YLJX series three phase torque motor is a special motor with soft mechanical properties and wide speed range. They can be widely used for metal processing, textile, papermaking, wire and cable, rubber, chemical industry or other similar conditions.


Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, YLJX motors become one of the most competitive torque motors in industry with their perfect performance, reliable quality, high efficiency and energy reservation.
The motor is made of high quality cast iron .with optimized construction design, they can ensure the requirement of structure rigidity and intensity.
High quality insulation material combines the perfect insulation system.
We use high temperature resistant bearing to ensure the stable quality of the motor.
Perfect primer ensures the motors with good appearance and the motors are durable.
