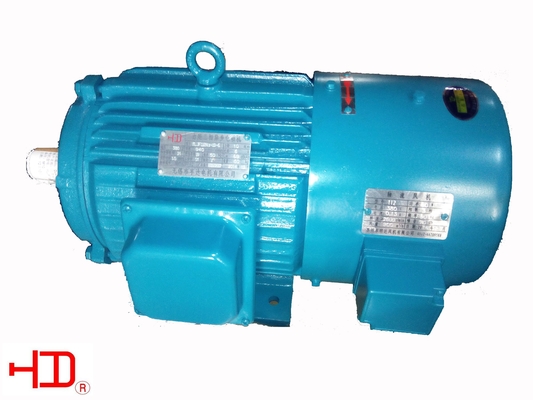

Industrial Adjustable 4 Pole High Torque Electric Motor Low Rpm , High Performance

Large Image : Industrial Adjustable 4 Pole High Torque Electric Motor Low Rpm , High Performance Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YLJX-H80

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	5,000 pcs per month

Contact Now

Detailed Product Description

High Light:

high torque low rpm electric motor

high torque low speed electric motor

Industrial Adjustable 4 Pole High Torque Electric Motor Low Rpm , High Performance

Specifications

High quality product
Timely delivery
Adjustable motor performance
Rotation: CW/CCW

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard		IEC
Phase		Three-phase
Frame Size		H80 Cast iron frame
Frequency		50HZ
Cooling type		Self cooling
Voltage		380V
Poles		4,6,8
Connection		Y
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Technical Specification

Type	Frame (mm)	Moment (N.m)	Pole	Maximum Current	Locked Time (min)
YLJX80-2-4	80	2	4	1.2	15
YLJX80-2.5-4		2.5	4	1.45
YLJX80-1.5-6		1.5	6	0.85
YLJX80-2-6		2	6	1.2
YLJX80-1-8		1	8	0.7
YLJX80-1.5-8		1.5	8	0.9

Mounting and Overall Dimensions(mm)

Frame Size	Mounting Dimensions (mm)														Overall Dimensions (mm)
Frame Size	A	B	C	D	E	FXGD	G	H	K	T	M	N	P	S	AB	AC	AD	HD	AA	BB	HA	LA	L
YLJX 80	125	100	50	19	40	6*6	15.5	80	10	3.5	165	130	200	4-￠12	165	175	175	205	38	135	12	12	290

Description:

1,Winding:The tension of YLJX series torque motor will remain steady from blank panel to plateful.
It is convenient to adjust the tension and will repeat normally after regulating.
With reliable structure and low cost, the motor is easy to operate and maintain.
2,Decoiling:The torque motor is in a reverse braking state as tension control. It is able to meet the needs through regulating device to control the size of the braking torque , so the voltage should not be over 300V.
3,Locked:In some special occasions, moment last for some time is necessary.
The locked time for our torque motor can be according to the nameplate. If longer time is needed , bigger motor can be chosen.
4,Moment:Due to the soft mechanical properties , torque motor will have low efficiency during low speed running , so it is unfavorable to operate under low speed for a long time.

Applications:

YLJ series three phase torque motor is a special motor with soft mechanical properties and wide speed range. They can be widely used for metal processing, textile, papermaking, wire and cable, rubber, chemical industry or other similar conditions.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, YLJX motors become one of the most competitive torque motors in industry with their perfect performance, reliable quality, high efficiency and energy reservation.
The motor is made of high quality cast iron .with optimized construction design, they can ensure the requirement of structure rigidity and intensity.
High quality insulation material combines the perfect insulation system.
We use high temperature resistant bearing to ensure the stable quality of the motor.
Perfect primer ensures the motors with good appearance and the motors are durable.
