High Speed 12v 3 Phase High Torque Electric Motor Industrial Dc Motors

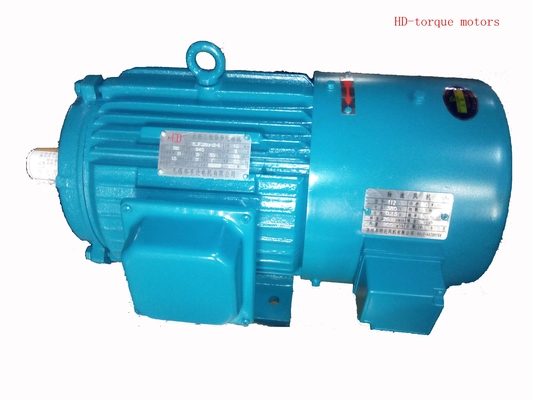

YLJX Three phase torque motors in Industry ( H90 Cast Iron Frame)
12v high torque small motors
1. voltage range:3.0-24.0V
2. high speed,high torque
3. size:35.7D*57.0L mm
4. weight:215g
Ambient |
||
Temperature range: |
-15~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
||
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
||
Standard |
IEC |
|
Phase |
Three-phase |
|
Frame Size |
H90 Cast iron frame |
|
Frequency |
50HZ |
|
Cooling type |
Self cooling |
|
Voltage |
380V |
|
Poles |
2,4,6,8 |
|
Connection |
Y |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers' requirements |
Meaning of type code
Technical Specification
Type |
Frame (mm) |
Moment (N.m) |
Pole |
Maximum Current |
Locked Time (min) |
YLJX90-2-2 |
90 |
2 |
2 |
2.5 |
15 |
YLJX90-3-2 |
3 |
3 |
|||
YLJX90-3-4 |
3 |
4 |
1.5 |
||
YLJX90-3.5-4 |
3.5 |
1.9 |
|||
YLJX90-2.5-6 |
2.5 |
6 |
1.1 |
||
YLJX90-3-6 |
3 |
1.5 |
|||
YLJX90-2-8 |
2 |
8 |
1.2 |
||
YLJX90-2.5-8 |
2.5 |
1.4 |
Mounting and Overall Dimensions(mm)
Frame Size |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
|||||||||||||||||||||
A |
B |
C |
D |
E |
FXGD |
G |
H |
K |
T |
M |
N |
P |
S |
AB |
AC |
AD |
HD |
AA |
BB |
HA |
LA |
L |
|
YLJX 90S |
140 |
100 |
56 |
24 |
50 |
8*7 |
20 |
90 |
10 |
3.5 |
165 |
130 |
200 |
4-¢12 |
180 |
195 |
180 |
225 |
40 |
135 |
14 |
12 |
315 |
YLJX 90L |
140 |
125 |
56 |
24 |
50 |
8*7 |
20 |
90 |
10 |
3.5 |
165 |
130 |
200 |
4-¢12 |
180 |
195 |
180 |
225 |
40 |
160 |
14 |
12 |
340 |
Description:
1, Winding:The tension of YLJX series torque motor will remain steady from blank panel to plateful.
It is convenient to adjust the tension and will repeat normally after regulating.
With reliable structure and low cost, the motor is easy to operate and maintain.
2, Decoiling:The torque motor is in a reverse braking state as tension control. It is able to meet the needs through regulating device to control the size of the braking torque , so the voltage should not be over 300V.
3, Locked:In some special occasions, moment last for some time is necessary.
The locked time for our torque motor can be according to the nameplate. If longer time is needed , bigger motor can be choosed .
4, Moment:Due to the soft mechanical properties , torque motor will have low efficiency during low speed running , so it is unfavorable to operate under low speed for a long time.
Applications:
YLJX series three phase torque motor is a special motor with soft mechanical properties and wide speed range. They can be widely used for metal processing, textile, papermaking, wire and cable, rubber, chemical industry or other similar conditions.
